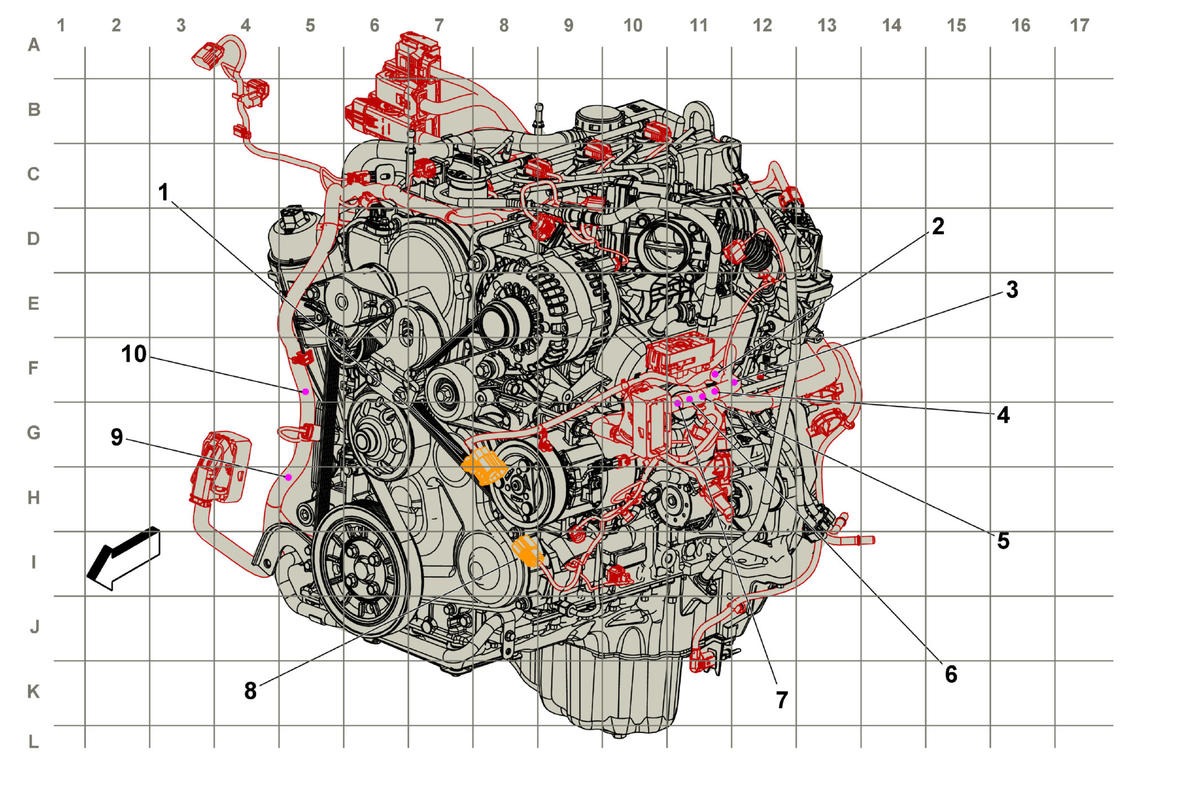

Engine Harness Routing - Left Front (LWN)
| Items |
|---|
| 1 X109 Engine Harness to Forward Lamp Harness (4 cavities) (LWN) X109 Engine Harness to Forward Lamp Harness (LWN) |
| 2 J120 Forward Lamp Harness |
| 3 J127 Engine Harness (LWN) |
| 4 J126 Engine Harness (LWN) |
| 5 J125 Engine Harness (LWN) |
| 6 J106 Engine Harness |
| 7 J110 Engine Harness |
| 8 X108 Engine Harness to Cooling Fan Harness (6 cavities) (LWN) X108 Engine Harness to Cooling Fan Harness (LWN) |
| 9 J133 Engine Harness (LWN) |
| 10 J132 Engine Harness (LWN) |
