X109 Engine Harness to Forward Lamp Harness (LWN)

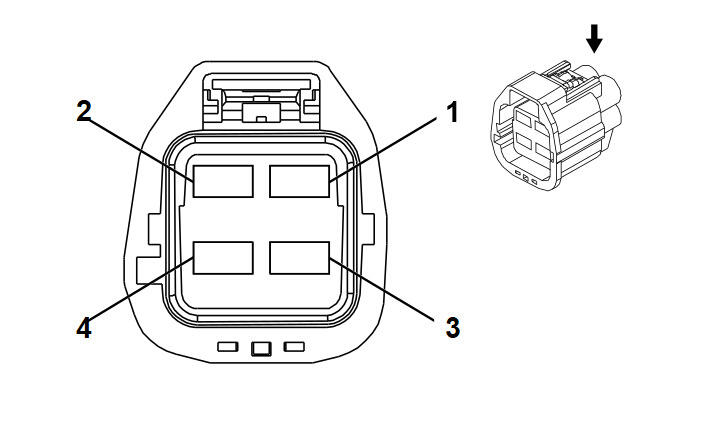

 Courtesy of GENERAL MOTORS COMPANY
|

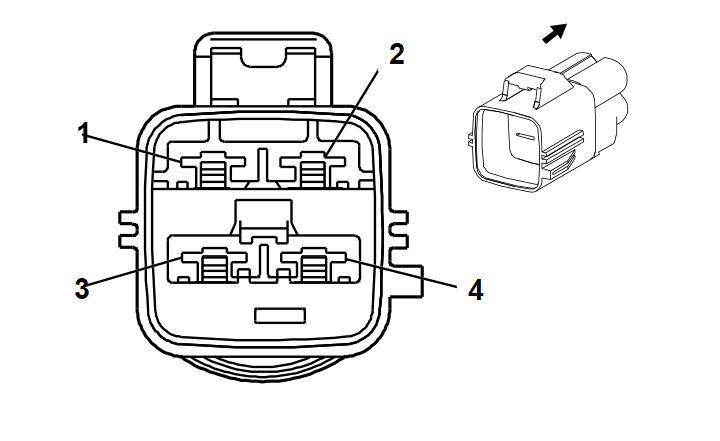

 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 7283-3108-10
- Service Connector: 19367523
- Description: 4-Way F 6.3 Series, Sealed (D-GY)
|
Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 7282-5595-10
- Service Connector: 13585864
- Description: 4-Way M 6.3 Series, Sealed (D-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-42 (RD) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-43 (RD) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
6 |
BN/BU |
104 |
I |
- |
Glow Plug Control |
1 |
4 |
BN/BU |
104 |
II |
- |
| 2 |
4 |
BU |
3921 |
I |
- |
DEF Heater Supply 1 |
2 |
4 |
BU |
3921 |
II |
- |
| 3 |
2.5 |
BU/GN |
7071 |
I |
- |
Heater Fuel Control
Heater Fuel Control |
3 |
2.5 |
BU/GN |
7071 |
II |
- |
| 4 |
- |
- |
- |
- |
- |
Not Occupied |
4 |
- |
- |
- |
- |
- |
