Front Floor Console Compartment Replacement (Automatic Transmission)

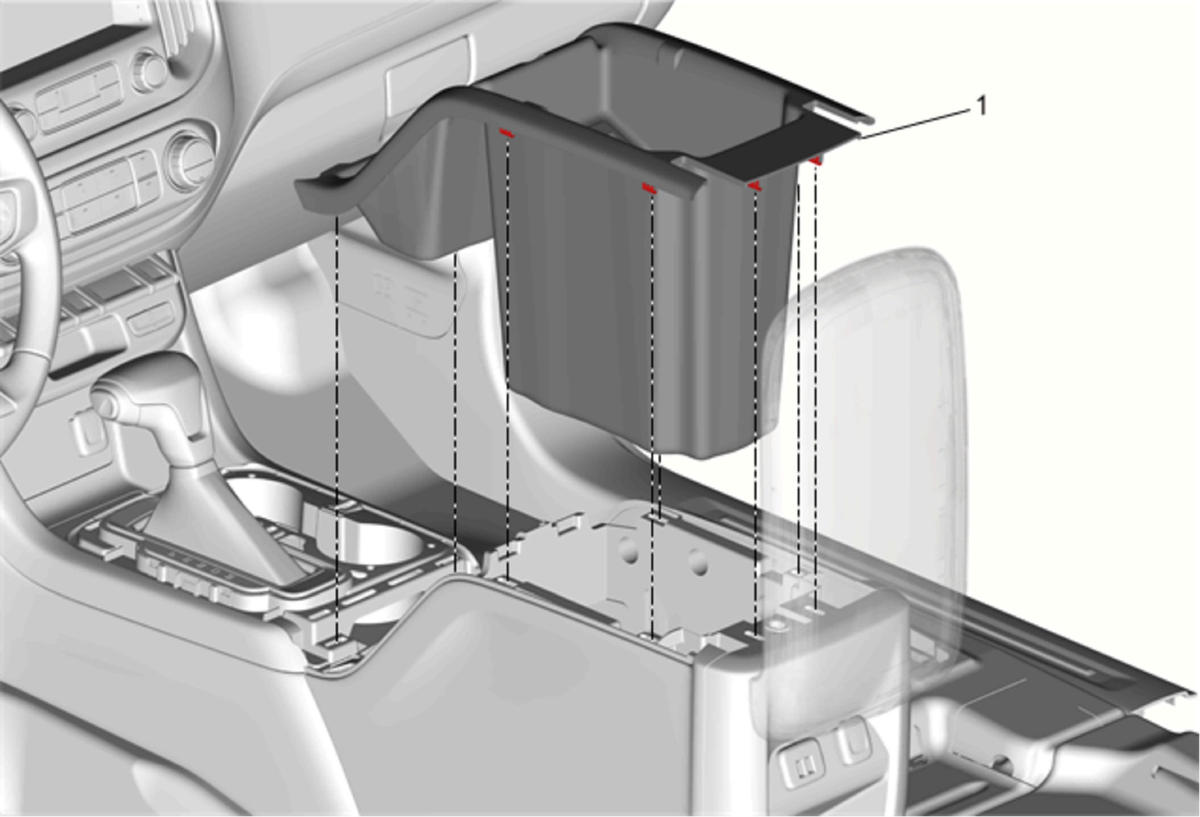

GM3712337
Callout Component Name
Preliminary Procedure
Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement .
1 Front Floor Console Compartment

Procedures

  1. Use a flat-bladed plastic trim tool to release the 8 retainer clips securing the compartment to the front floor console assembly.
  2. Disconnect electrical connections, if applicable.
  3. Transfer components as necessary.
