Front Floor Console Trim Plate Replacement

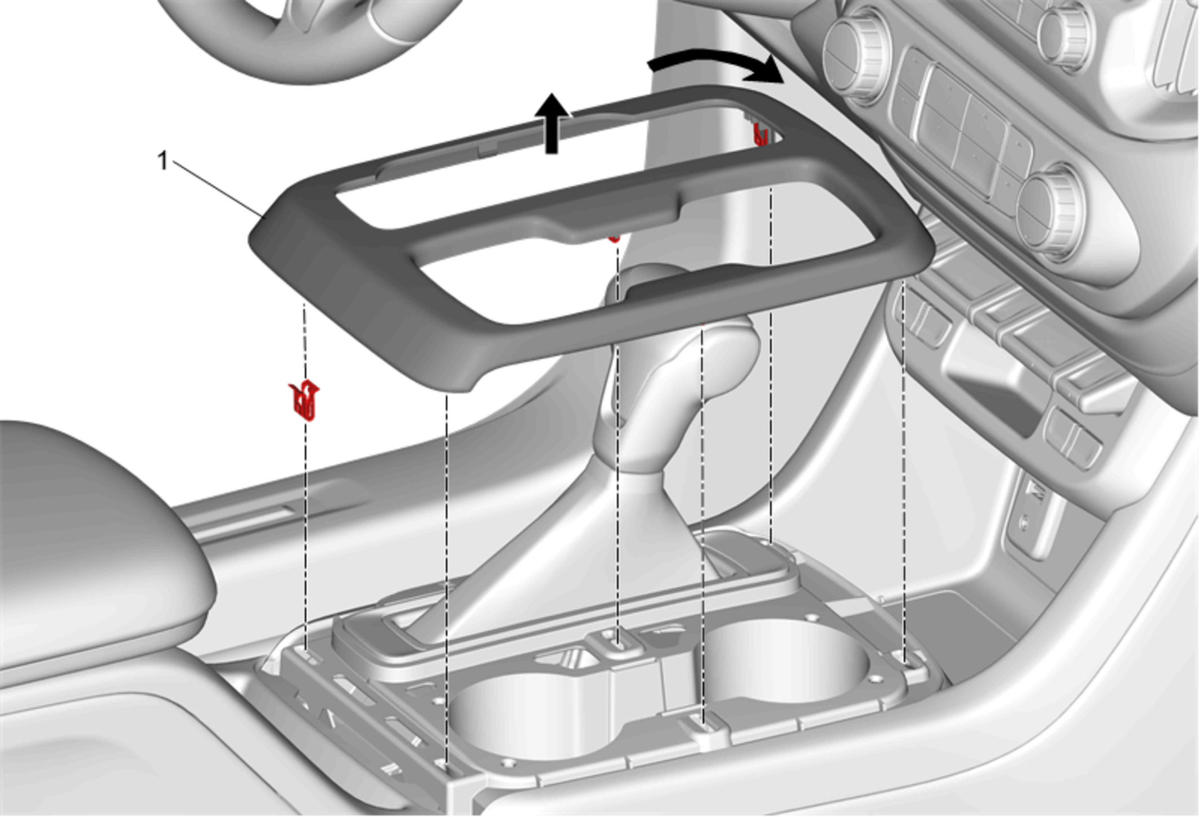

GM3803585
Callout Component Name
Preliminary Procedure
Front Floor Console Cup Holder Liner Replacement
1 Front Floor Console Trim Plate

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Manipulate the trim plate over the shift knob to remove.
  3. Transfer components as necessary.
