Windshield Multifunction Sensor Mount Bracket Cover Replacement (With UFL)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the windshield multifunction sensor mount bracket cover insert (with UFL). Refer to Windshield Multifunction Sensor Mount Bracket Cover Insert Replacement (With UFL) .

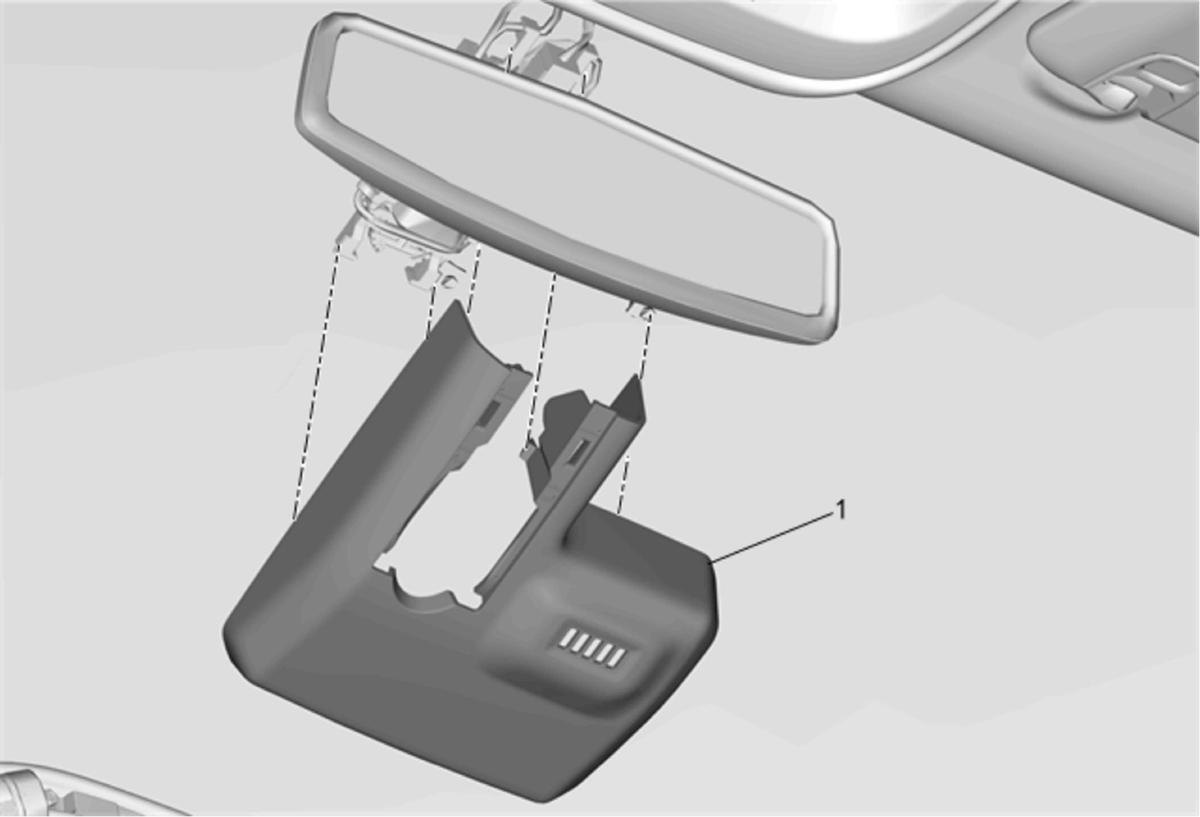

1	Windshield Multifunction Sensor Mount Bracket Cover Procedure Using an appropriate tool, release the 2 locking tabs near the top of the bracket cover. Grasp the cover on both sides and pull downward to remove from the vehicle.

Callout

Component Name

Preliminary Procedure
Remove the windshield multifunction sensor mount bracket cover insert (with UFL). Refer to Windshield Multifunction Sensor Mount Bracket Cover Insert Replacement (With UFL) .

Windshield Multifunction Sensor Mount Bracket Cover

Procedure

Using an appropriate tool, release the 2 locking tabs near the top of the bracket cover.
Grasp the cover on both sides and pull downward to remove from the vehicle.
