Windshield Multifunction Sensor Mount Bracket Cover Insert Replacement (With UFL)

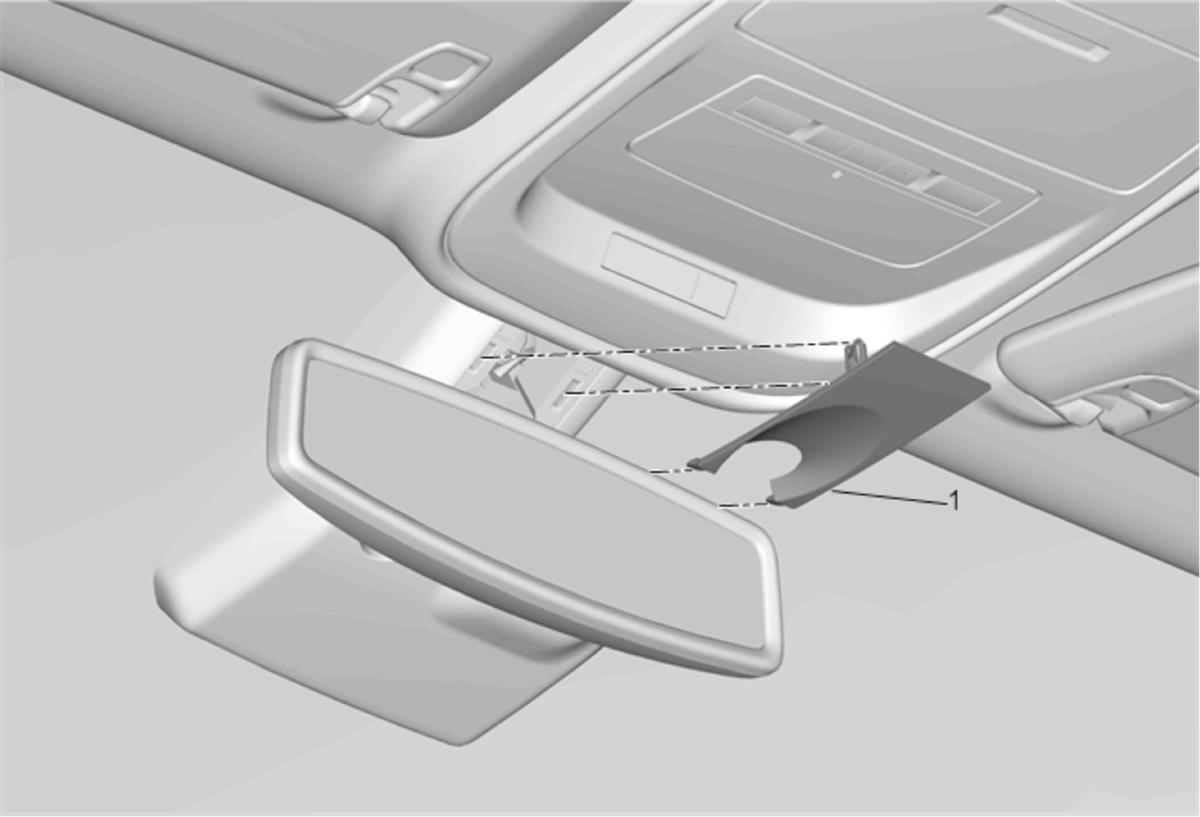

GM3803775Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Windshield Multifunction Sensor Mount Bracket Cover Insert

Procedure

  1. Gently pull on the top of the bracket cover insert to release the 2 locking tabs
  2. Grasp the cover insert on both sides and slide upward to remove from the vehicle.
