Accelerator Pedal With Position Sensor Assembly Replacement
WARNING: This page is about a different variant/trim than selected.

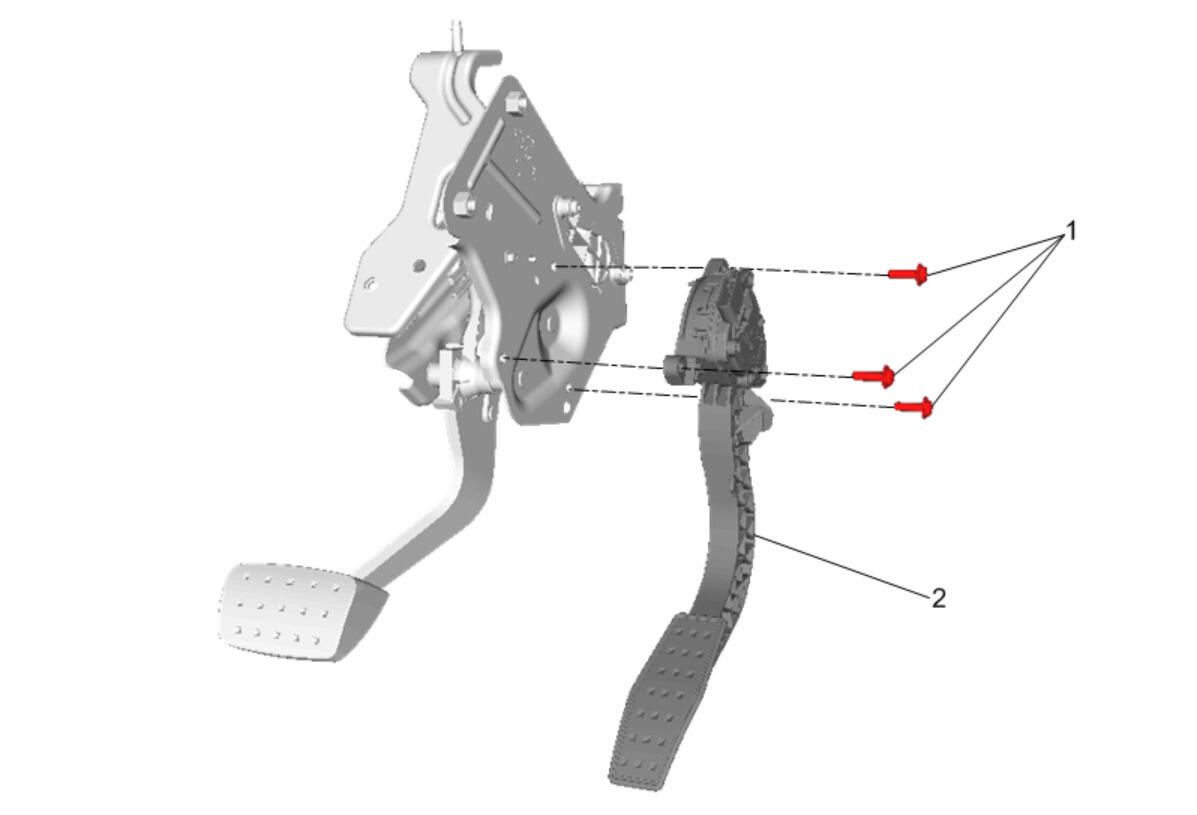

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Floor Console Extension Panel Replacement - Left Side |
|
| 1 | Accelerator Pedal Position Sensor Fastener (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Accelerator Pedal Position Sensor Procedure Disconnect the electrical connector. |
