Front Floor Console Extension Panel Replacement - Left Side

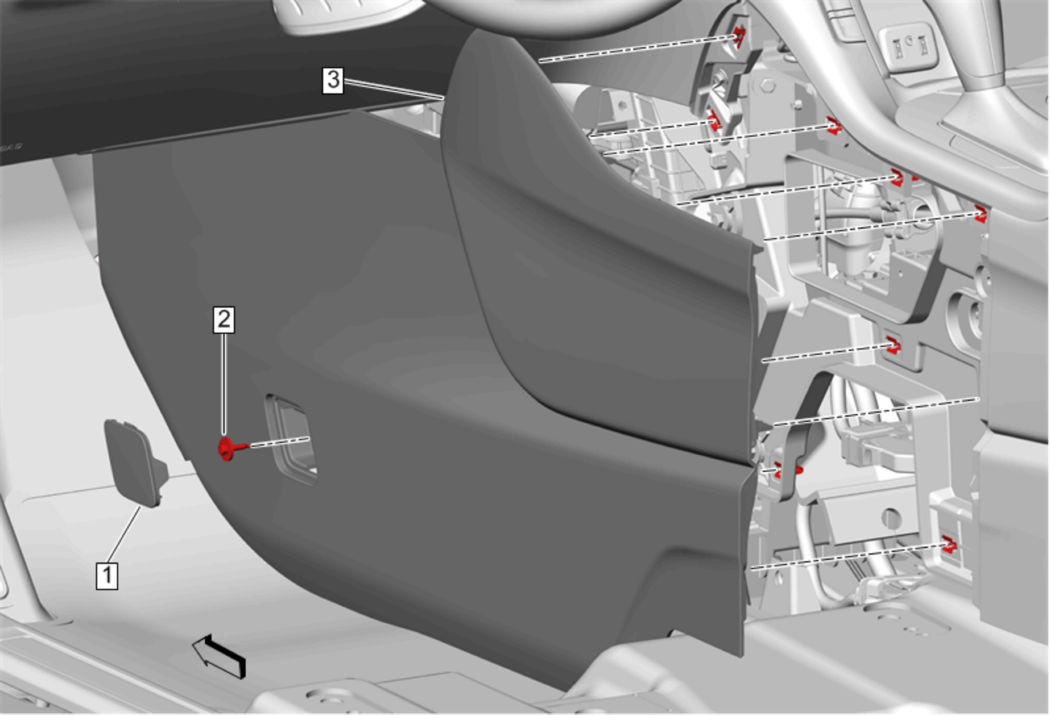

Callout	Component Name
1	Front Floor Console Bolt Access Hole Cover Procedure Use a suitable tool.
2	Front Floor Console Extension Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Front Floor Console Extension Panel - Left Side Procedure Move the front seat to access the retainers. Use a flat bladed plastic trim tool. Transfer components as necessary.

Callout

Component Name

Front Floor Console Bolt Access Hole Cover
Procedure
Use a suitable tool.

Front Floor Console Extension Bolt

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Floor Console Extension Panel - Left Side

Procedure
