Removal Procedure
WARNING: This page is about a different variant/trim than selected.
- Rear Wheelhouse Liner - Remove - Rear Wheelhouse Liner Replacement
Tie Strap (1) - Remove and DISCARD
- Fuel Tank Filler Pipe Bolt (2) - Remove
Tie Strap (1) - Remove and DISCARD (Qty: 2)
- Fuel Tank Filler Pipe Bolt (2) - Remove

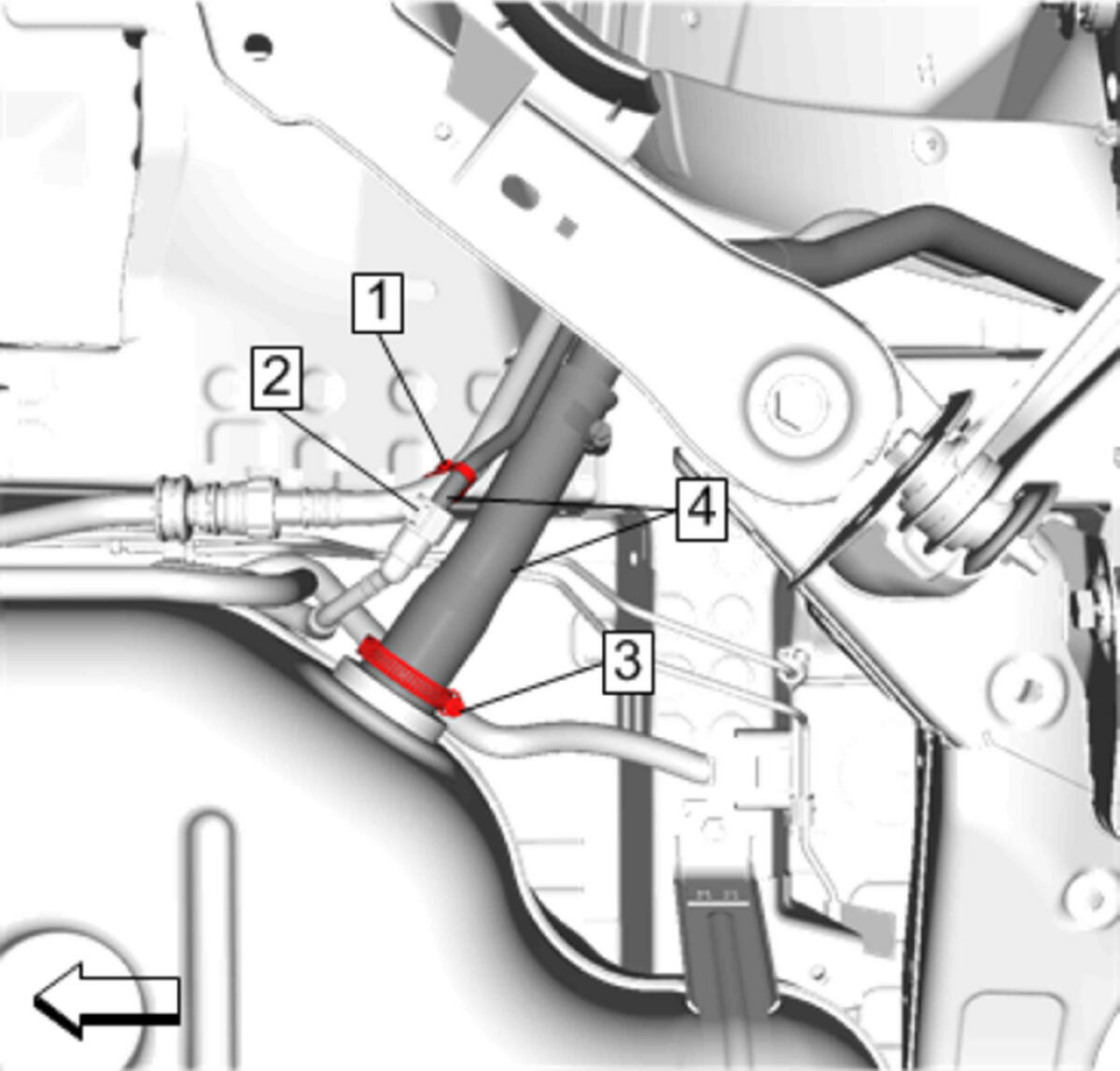

Tie Strap (1) - Remove and DISCARD
- Evaporative Emission Canister Vent Hose (2) - Disconnect - Plastic Collar Quick Connect Fitting Service
- Fuel Tank Filler Hose Clamp (3) - Remove
- Fuel Tank Filler Hose (4) - Remove
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Refer to Safety Glasses Warning .
