Rear Wheelhouse Liner Replacement

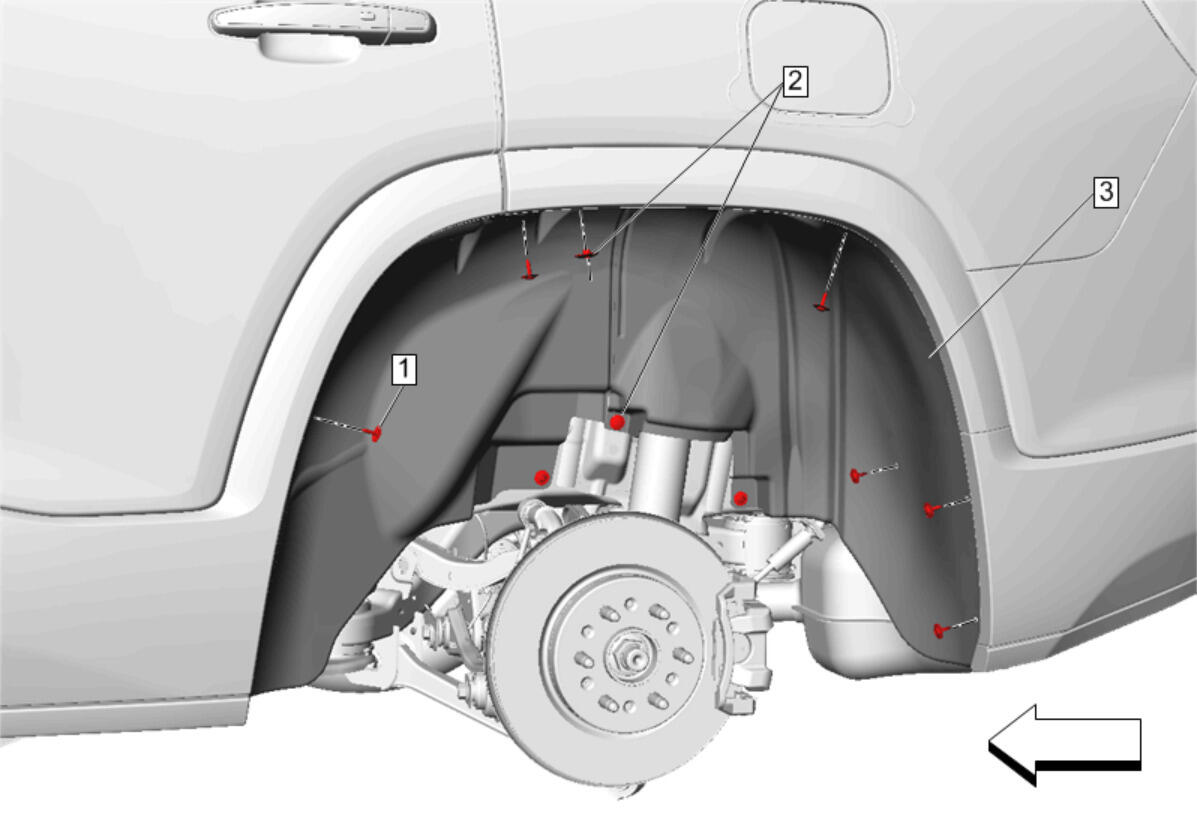

GM4373942Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the left rear tire and wheel assembly. Tire and Wheel Removal and Installation
  2. Rear Tire Front Air Deflector Replacement
1 Rear Wheelhouse Liner Screw (Qty: 8)
CAUTION:

Refer to Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Rear Wheelhouse Liner Retainer (Qty: 2)
3 Rear Wheelhouse Liner
