Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

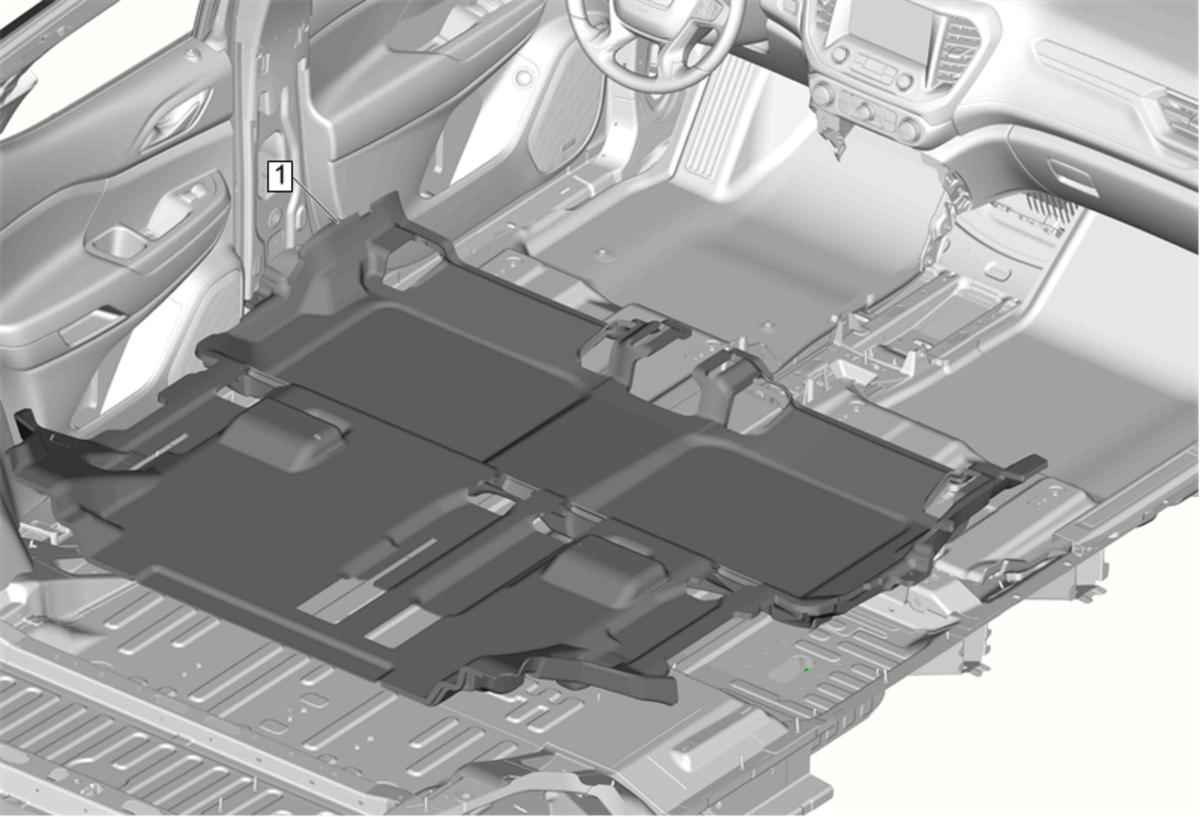

Fig 1: Rear Floor Panel Carpet

Courtesy of GENERAL MOTORS COMPANY

Install Rear Floor Panel Carpet (1).

Fig 2: Quarter Lower Rear Trim Panel-Right Side

Courtesy of GENERAL MOTORS COMPANY

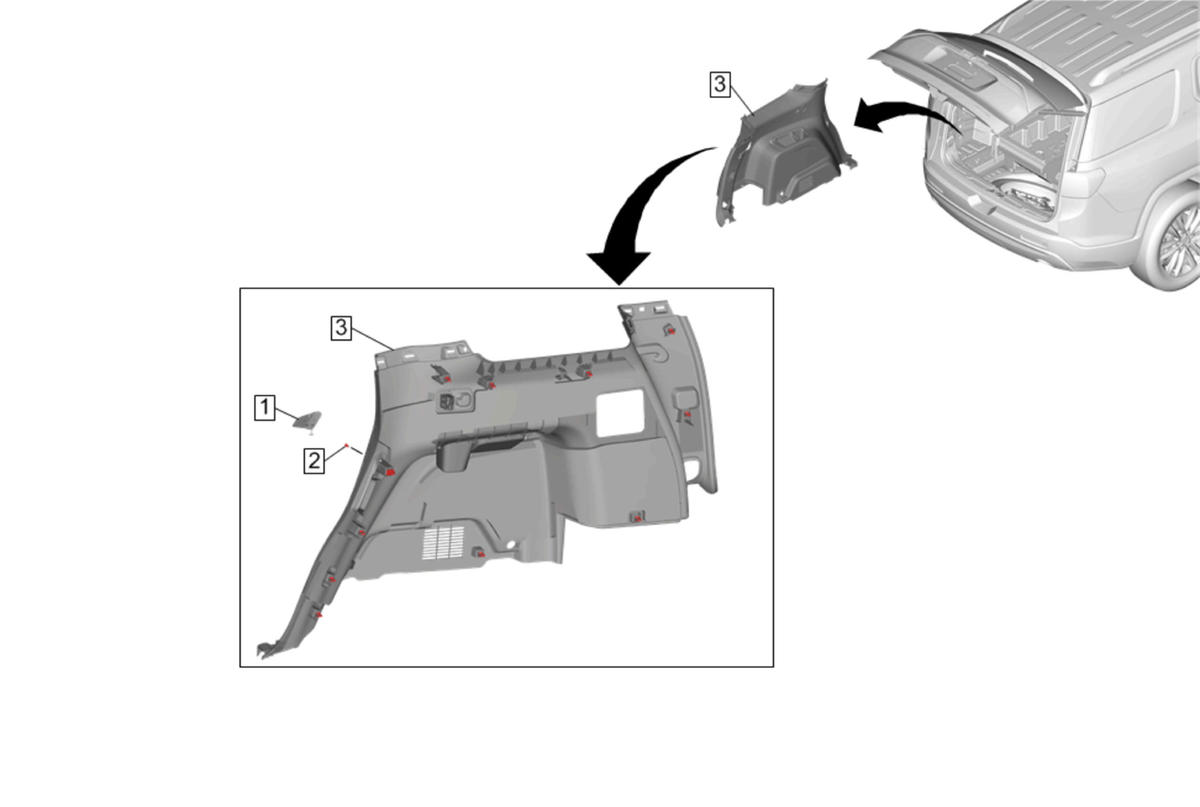

Install Quarter Lower Rear Trim Panel-Right Side (1). Quarter Lower Rear Trim Panel Replacement (Left Side With All Terrain)Quarter Lower Rear Trim Panel Replacement (Right Side With All Terrain)Quarter Lower Rear Trim Panel Replacement (Left Side Without All Terrain)Quarter Lower Rear Trim Panel Replacement (Right Side Without All Terrain)

Fig 3: Quarter Lower Rear Trim Panel

Courtesy of GENERAL MOTORS COMPANY

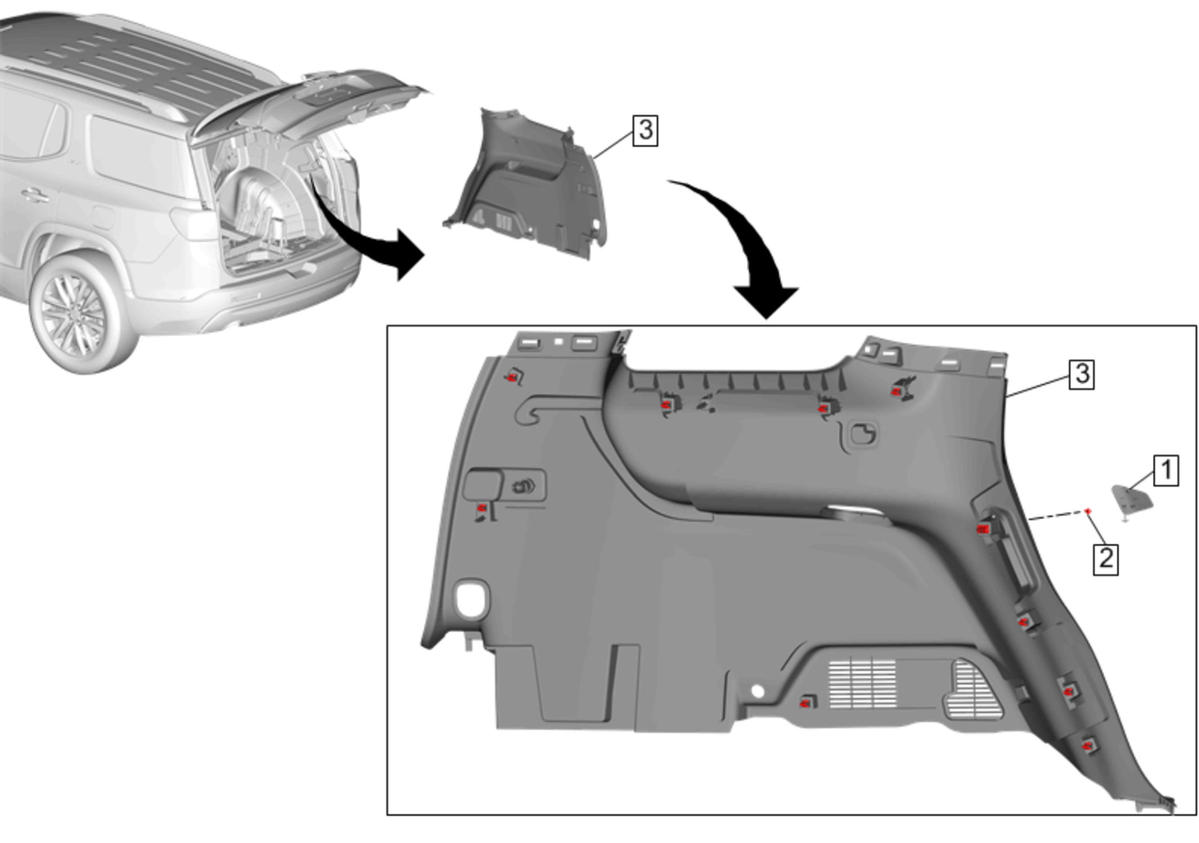

Install Quarter Lower Rear Trim Panel-Left Side (1). Quarter Lower Rear Trim Panel Replacement (Left Side With All Terrain)Quarter Lower Rear Trim Panel Replacement (Right Side With All Terrain)Quarter Lower Rear Trim Panel Replacement (Left Side Without All Terrain)Quarter Lower Rear Trim Panel Replacement (Right Side Without All Terrain)

Fig 4: Center Pillar Lower Trim Panel

Courtesy of GENERAL MOTORS COMPANY

Install Center Pillar Lower Trim Panel (1). Center Pillar Lower Trim Panel Replacement

Fig 5: Front Floor Console

Courtesy of GENERAL MOTORS COMPANY

Front Floor Console (1). Front Floor Console Replacement

Fig 6: 3rd Row Seat

Courtesy of GENERAL MOTORS COMPANY

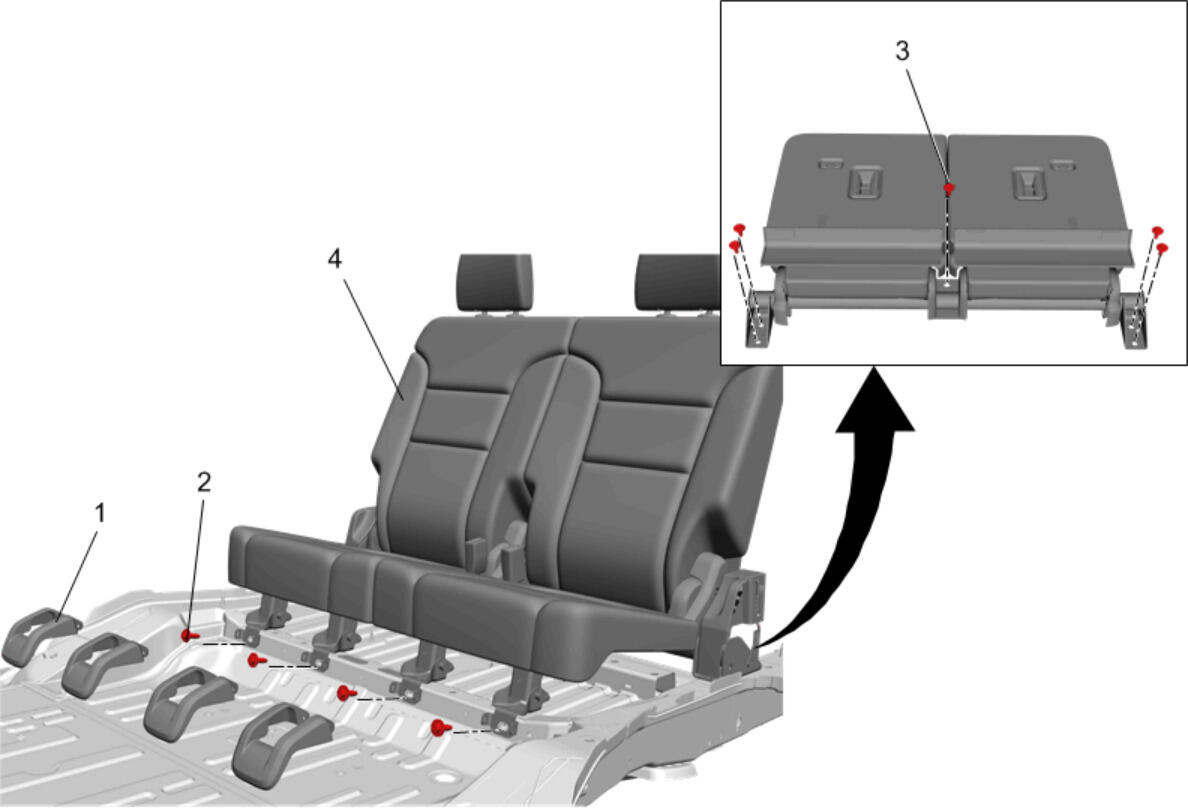

3rd Row Seat (4). 3rd Row Seat Removal and Installation

Fig 7: Rear Seat

Courtesy of GENERAL MOTORS COMPANY

Install Rear Seat-40% (3). Rear Seat Removal and Installation (40%)

Fig 8: Rear Seat

Courtesy of GENERAL MOTORS COMPANY

Install Rear Seat-60% (3). Rear Seat Removal and Installation (60%)

Fig 9: Driver and Passenger Seat

Courtesy of GENERAL MOTORS COMPANY

Install Driver and Passenger Seat (3). Driver or Passenger Seat Removal and Installation
