Front Floor Panel Carpet Replacement - Left Side

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

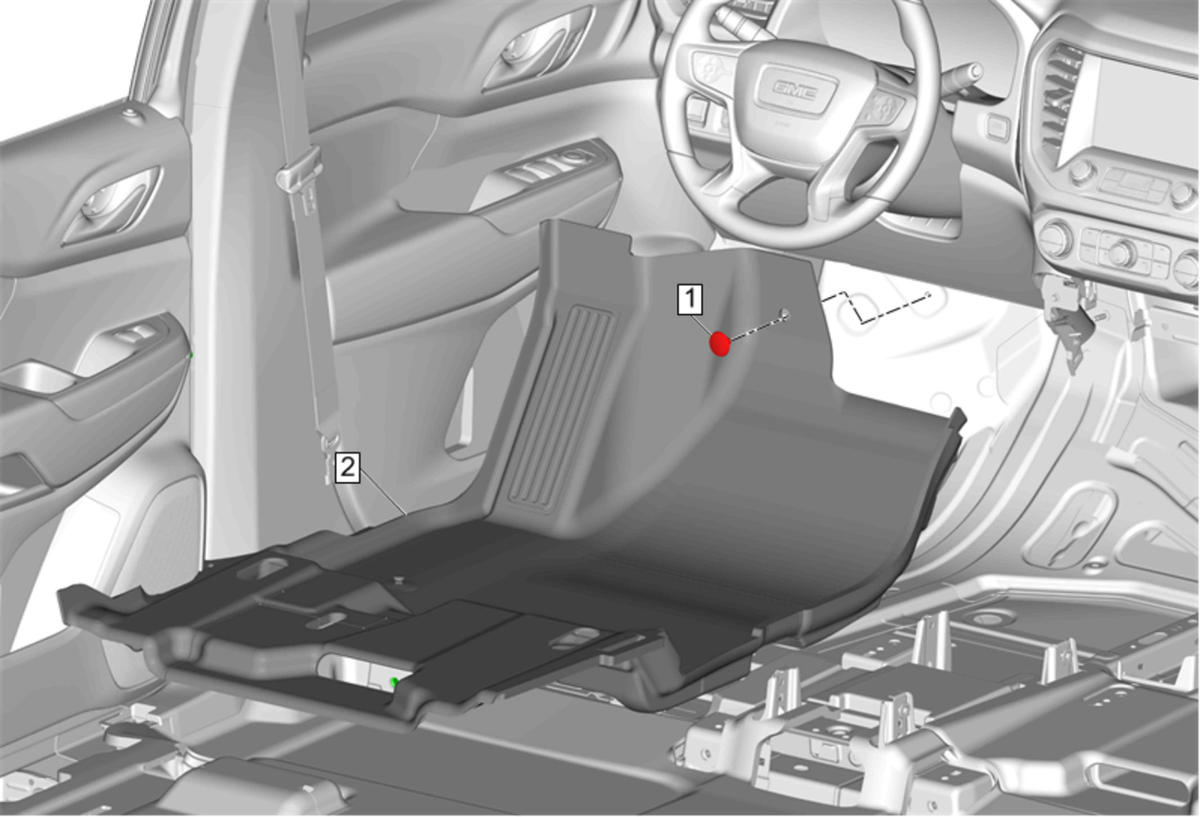

Fig 1: Front Floor Panel Carpet - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Driver or Passenger Seat Removal and Installation Front Side Door Sill Garnish Molding Replacement Center Pillar Lower Trim Panel Replacement Front Floor Console Replacement
1	Floor Carpet Retainer Button Procedure Use a plastic flat-bladed tool to aid in the removal of the push-in retainer.
2	Front Floor Panel Carpet - Left Side

Callout

Component Name

Preliminary Procedures

Driver or Passenger Seat Removal and Installation
Front Side Door Sill Garnish Molding Replacement
Center Pillar Lower Trim Panel Replacement
Front Floor Console Replacement

Floor Carpet Retainer Button
Procedure
Use a plastic flat-bladed tool to aid in the removal of the push-in retainer.

Front Floor Panel Carpet - Left Side
