Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Automatic Transmission Flex Plate.Automatic Transmission Flex Plate Replacement
    2. Fig 1: Rear Oil Seal And Housing
    GM4143992Courtesy of GENERAL MOTORS COMPANY
  2. Remove the oil pan to crankshaft rear oil seal and housing bolts (1).

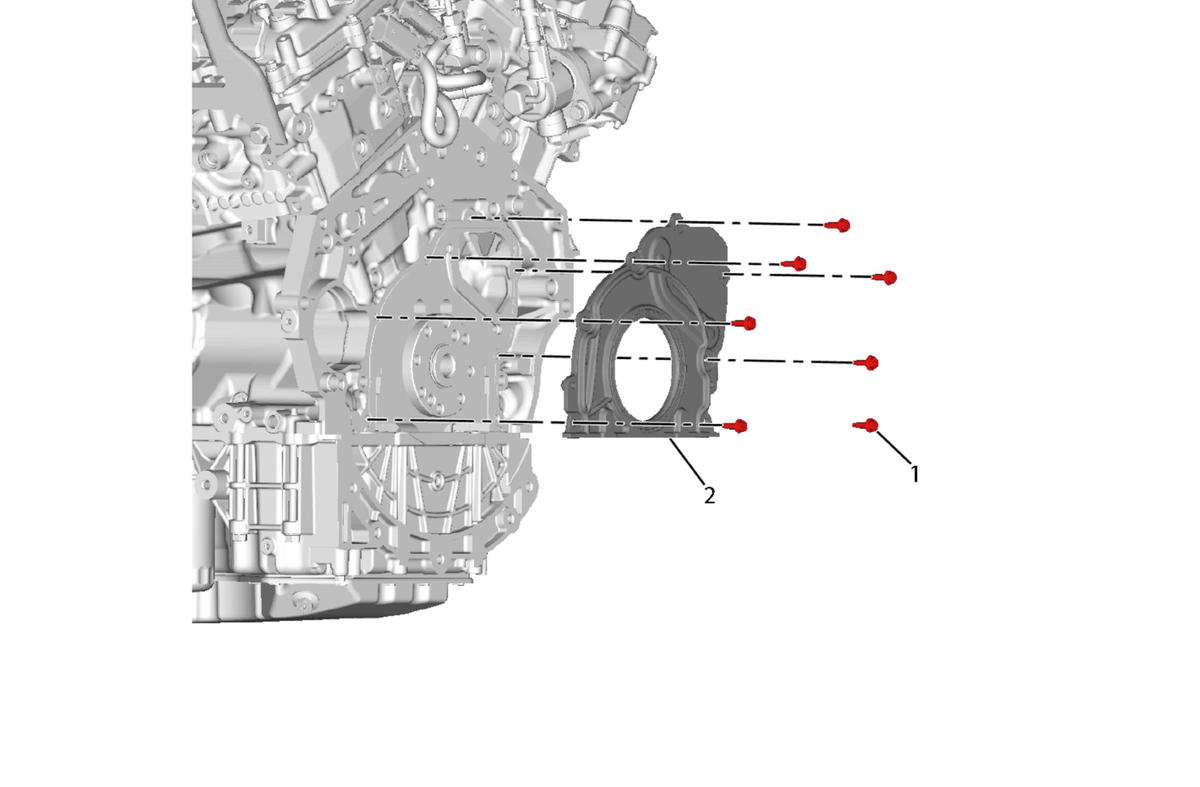

    3. Fig 2: Crankshaft Rear Oil Seal Housing Bolts
    GM4144076Courtesy of GENERAL MOTORS COMPANY
  3. Remove the crankshaft rear oil seal housing bolts.(1)
  4. Remove and DISCARD the crankshaft rear oil seal housing.(2)
