Front Upper Grille Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

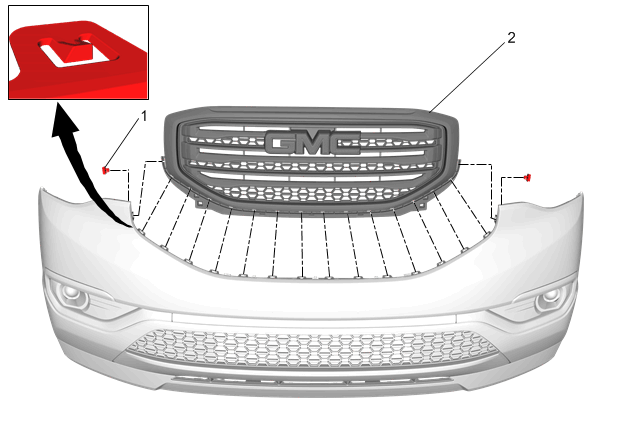

Fig 1: Front Upper Grille

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement
1	Front Bumper Fascia Clip (Qty: 2)
2	Front Upper Grille Procedure Reposition the wiring harness. Using a suitable trim tool, release the locking tabs while carefully pulling the front upper grille from the front fascia. Transfer components as necessary. NOTE: Each individual front bumper fascia tab must be secure to each slot in the radiator grille prior to reassembly of the fascia to the vehicle.
