Front Lower Grille Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

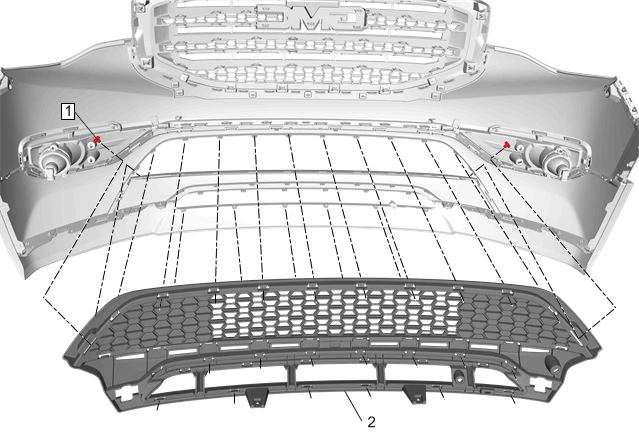

Fig 1: Front Lower Grille

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Energy Absorber Replacement
1	Front Lower Grille Clip (Qty: 2)
2	Front Lower Grille Procedure Place the bumper fascia face down on a clean protected surface. Using a suitable trim tool, release the locking tabs while carefully pulling the front lower grille from the front fascia. Transfer components as necessary. NOTE: Each individual front bumper fascia tab must be secure to each slot in the radiator grille prior to reassembly of the fascia to the vehicle.

Callout

Component Name

Preliminary Procedure
Front Bumper Fascia Energy Absorber Replacement

Front Lower Grille Clip (Qty: 2)

Front Lower Grille

Procedure

Place the bumper fascia face down on a clean protected surface.
Using a suitable trim tool, release the locking tabs while carefully pulling the front lower grille from the front fascia.
Transfer components as necessary.

NOTE:

Each individual front bumper fascia tab must be secure to each slot in the radiator grille prior to reassembly of the fascia to the vehicle.
