Front Bumper Fascia Energy Absorber Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

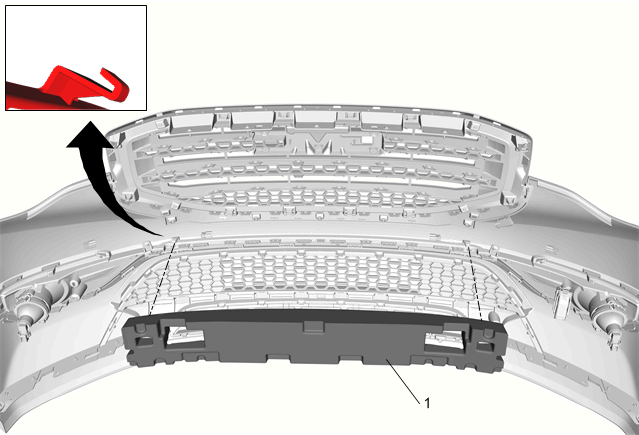

Fig 1: Front Bumper Fascia Energy Absorber

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Replacement Reposition the wiring harness.
1	Front Bumper Fascia Energy Absorber Procedure Release the 2 retainers and remove the front bumper fascia energy absorber from the fascia.

Callout

Component Name

Preliminary Procedures

Front Bumper Fascia Replacement
Reposition the wiring harness.

Front Bumper Fascia Energy Absorber
Procedure
Release the 2 retainers and remove the front bumper fascia energy absorber from the fascia.
