Front Grille Emblem/Nameplate Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Bumper Fascia Replacement . |
|

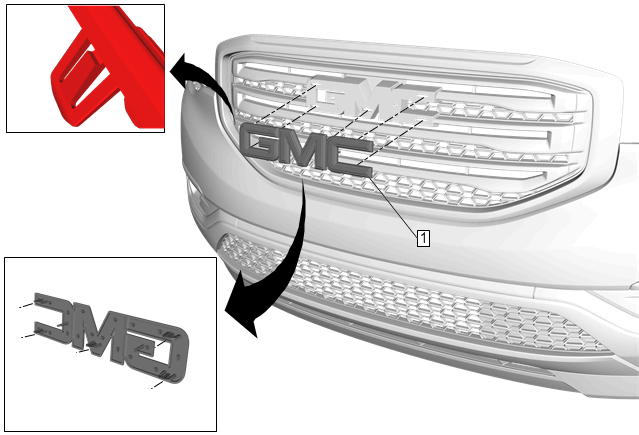

| 1 | Front Grille Emblem/Nameplate Procedure With a suitable flat bladed tool release the 5 locking tabs and pull the front grille emblem from the front upper grille. |
