Rear Bumper Impact Bar Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

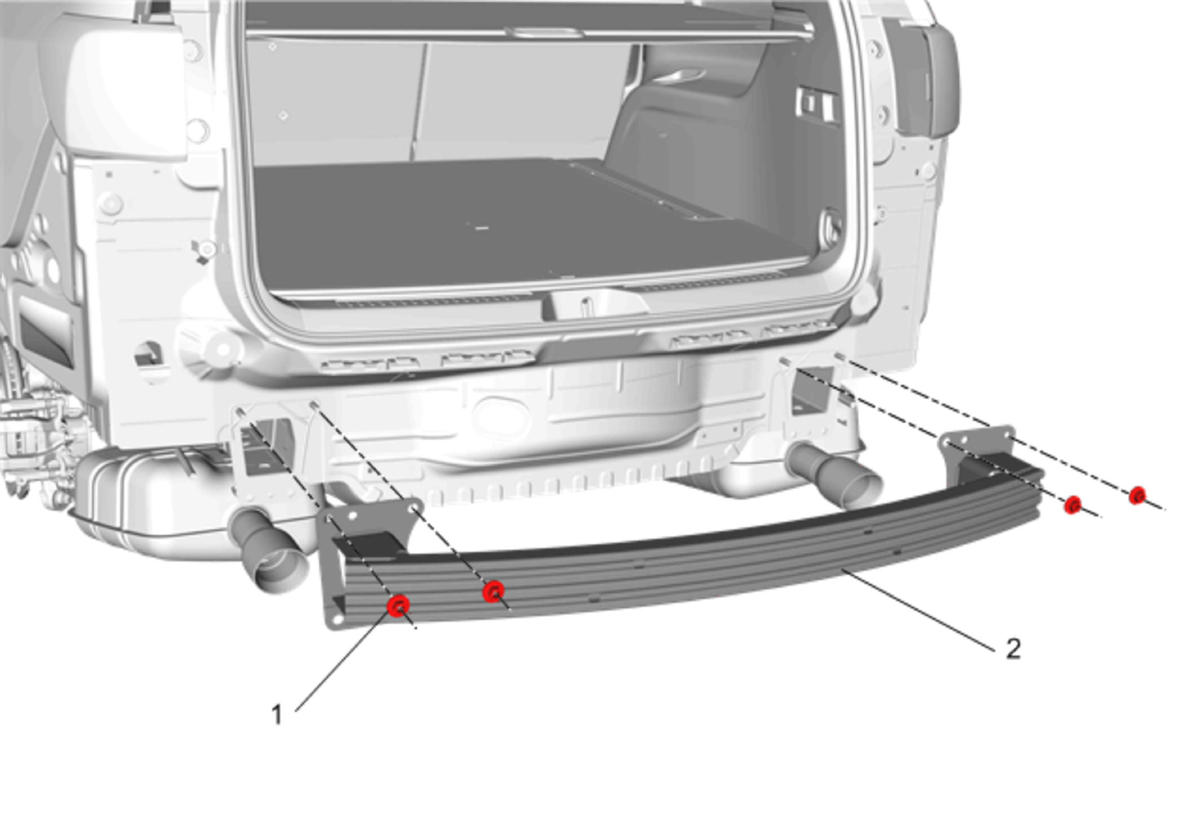

Fig 1: Rear Bumper Impact Bar

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Bumper Fascia Replacement Exhaust Rear Muffler Rear Hanger Replacement
1	Rear Bumper Impact Bar Nut (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 58 N.m (43 lb ft)
2	Rear Bumper Impact Bar Procedure Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Rear Bumper Fascia Replacement
Exhaust Rear Muffler Rear Hanger Replacement

Rear Bumper Impact Bar Nut (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
58 N.m (43 lb ft)

Rear Bumper Impact Bar
Procedure
Transfer components as necessary.
