Exhaust Rear Muffler Rear Hanger Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

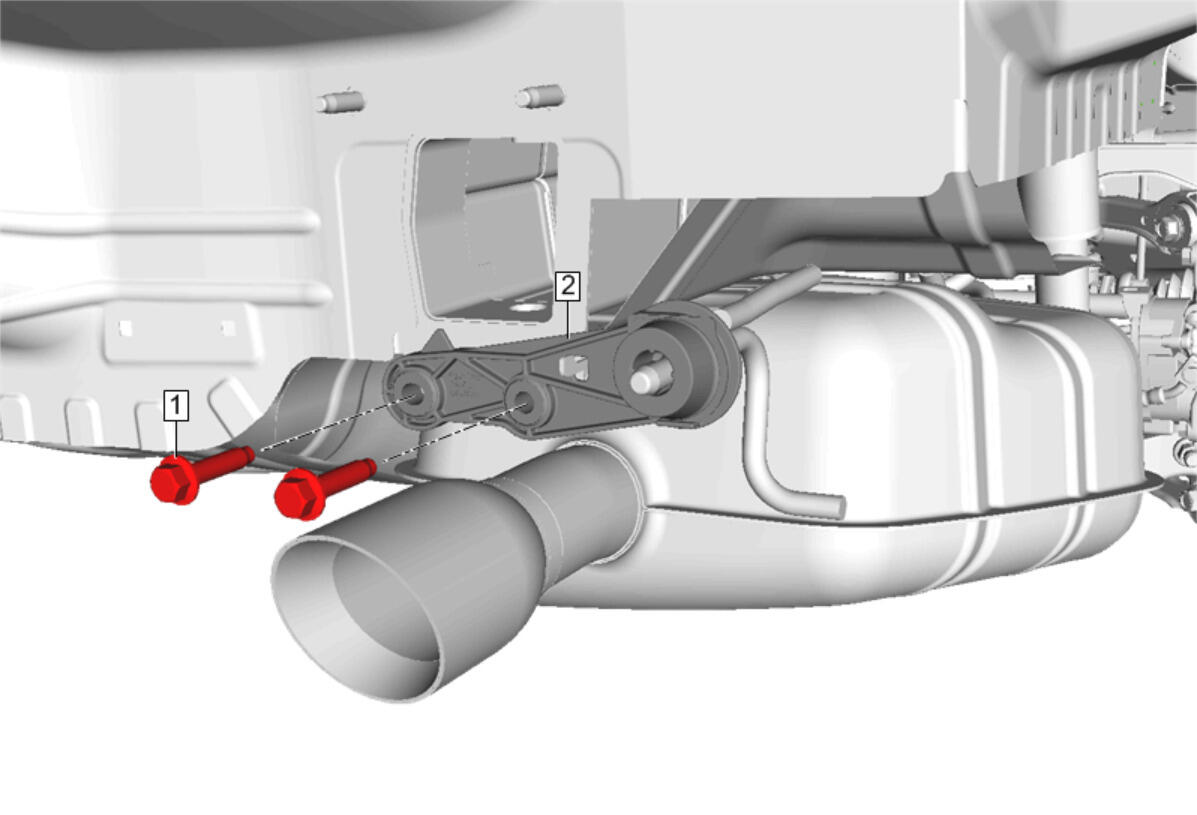

| Callout | Component Name |
|---|---|
| Preliminary Procedure Lifting and Jacking the Vehicle |
|
| 1 | Exhaust Rear Muffler Rear Hanger Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Exhaust Rear Muffler Rear Hanger |
