Rear Bumper Fascia Lower Skid Plate Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

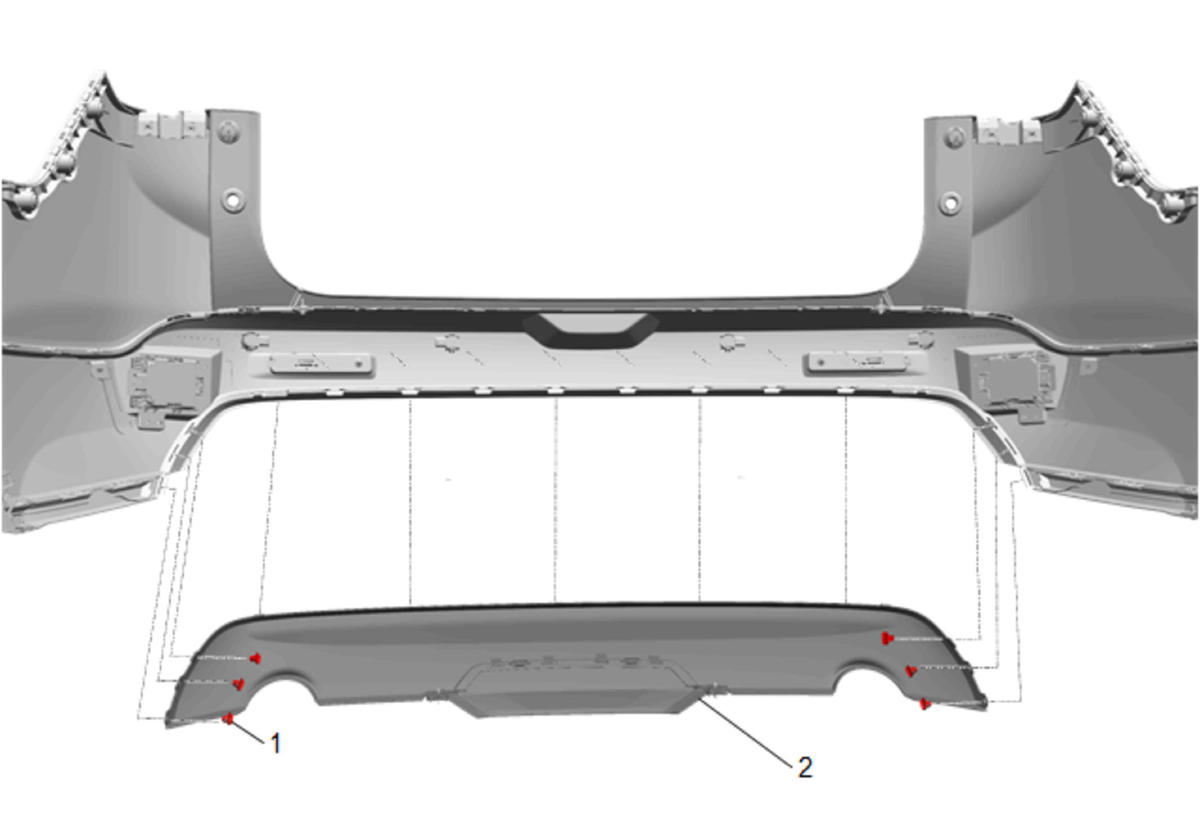

Fig 1: Rear Bumper Fascia Lower Skid Plate
GM4376029Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Bumper Fascia Energy Absorber Replacement
1 Rear Bumper Fascia Lower Skid Plate Clip (Qty: 4)
2 Rear Bumper Fascia Lower Skid Plate

Procedure

  1. Reposition the wiring harness.
  2. Using a trim type tool, release the retainers and pull the rear bumper fascia lower skid plate rearward from the rear bumper fascia.
