Rear Bumper Fascia Energy Absorber Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

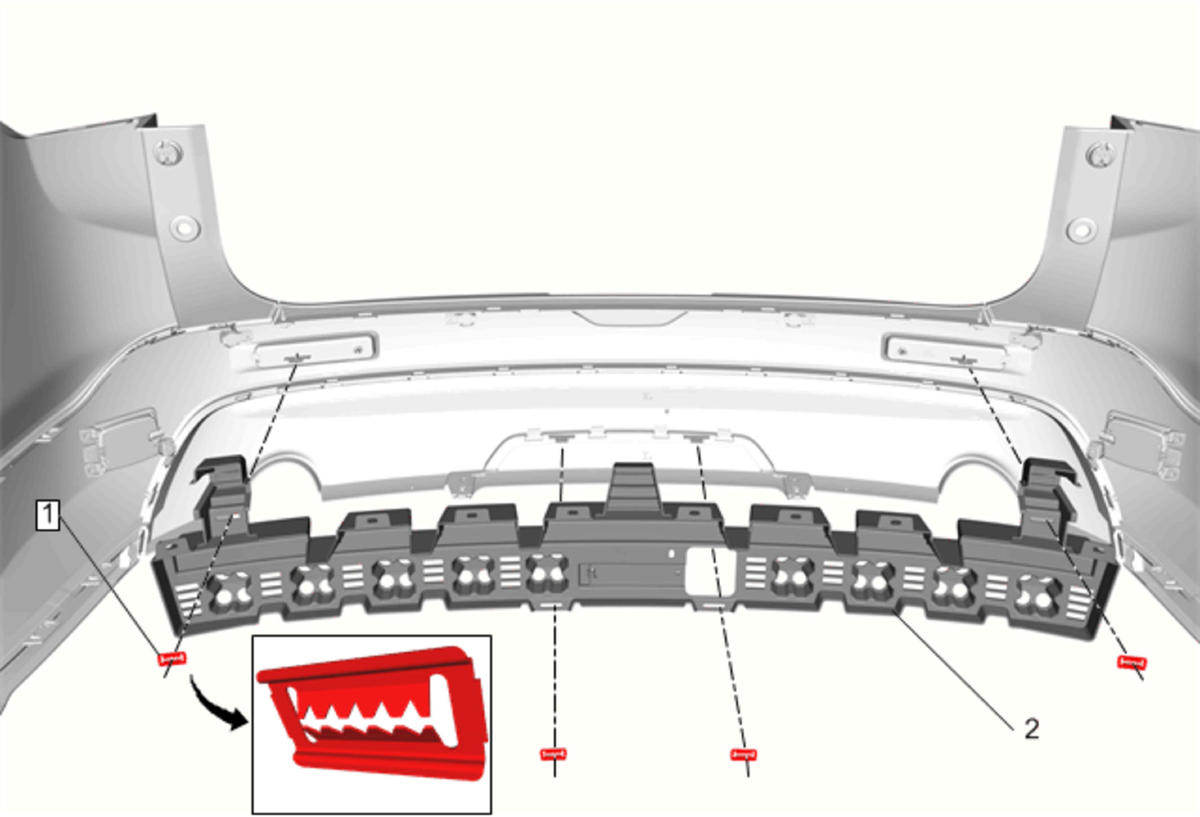

Fig 1: Rear Bumper Fascia Energy Absorber

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Bumper Fascia Replacement Reposition the rear fascia wiring harness.
1	Rear Bumper Fascia Energy Absorber Clip (Qty: 4)
2	Rear Bumper Fascia Energy Absorber

Callout

Component Name

Preliminary Procedures

Rear Bumper Fascia Replacement
Reposition the rear fascia wiring harness.

Rear Bumper Fascia Energy Absorber Clip (Qty: 4)

Rear Bumper Fascia Energy Absorber
