Front Bumper Impact Bar Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

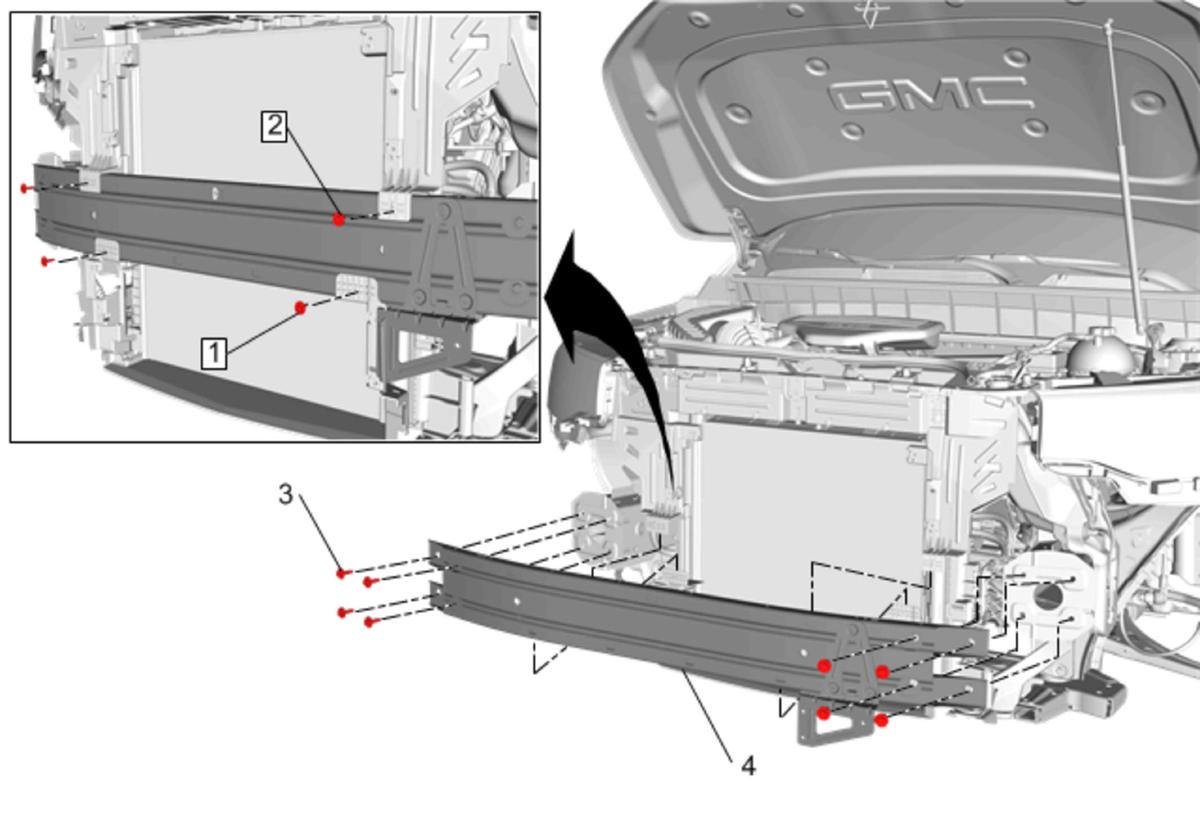

Fig 1: Front Bumper Impact Bar

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement
1	Radiator Air Lower Baffle Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radiator Air Upper Baffle Bolt (Qty: 2) Tighten 2.5 N.m (22 lb in)
3	Front Bumper Impact Bar Bolt (Qty: 8) Tighten 2.5N.m (22 lb ft)
4	Front Bumper Impact Bar Procedure Disconnect the electrical connectors. Slide the front bumper impact bar out from behind the upper and lower radiator air baffle tabs. Transfer components as necessary.
