Front Bumper Fascia Skid Plate Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

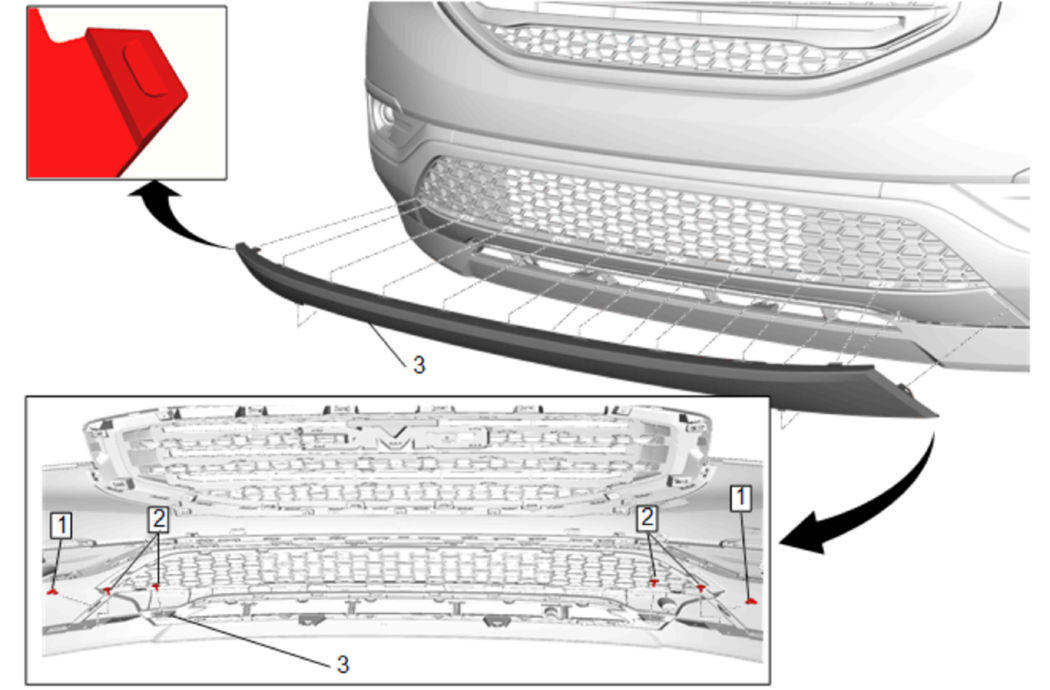

Fig 1: Front Bumper Fascia Skid Plate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement
1	Front Bumper Fascia Skid Plate Clip (Qty: 2)
2	Front Bumper Fascia Skid Plate Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Front Bumper Fascia Skid Plate Procedure Release the lower retainer tabs. Release the small tabs from the grill. Pull the front bumper fascia skid plate up from the front bumper fascia.
