Front Bumper Fascia Air Deflector Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

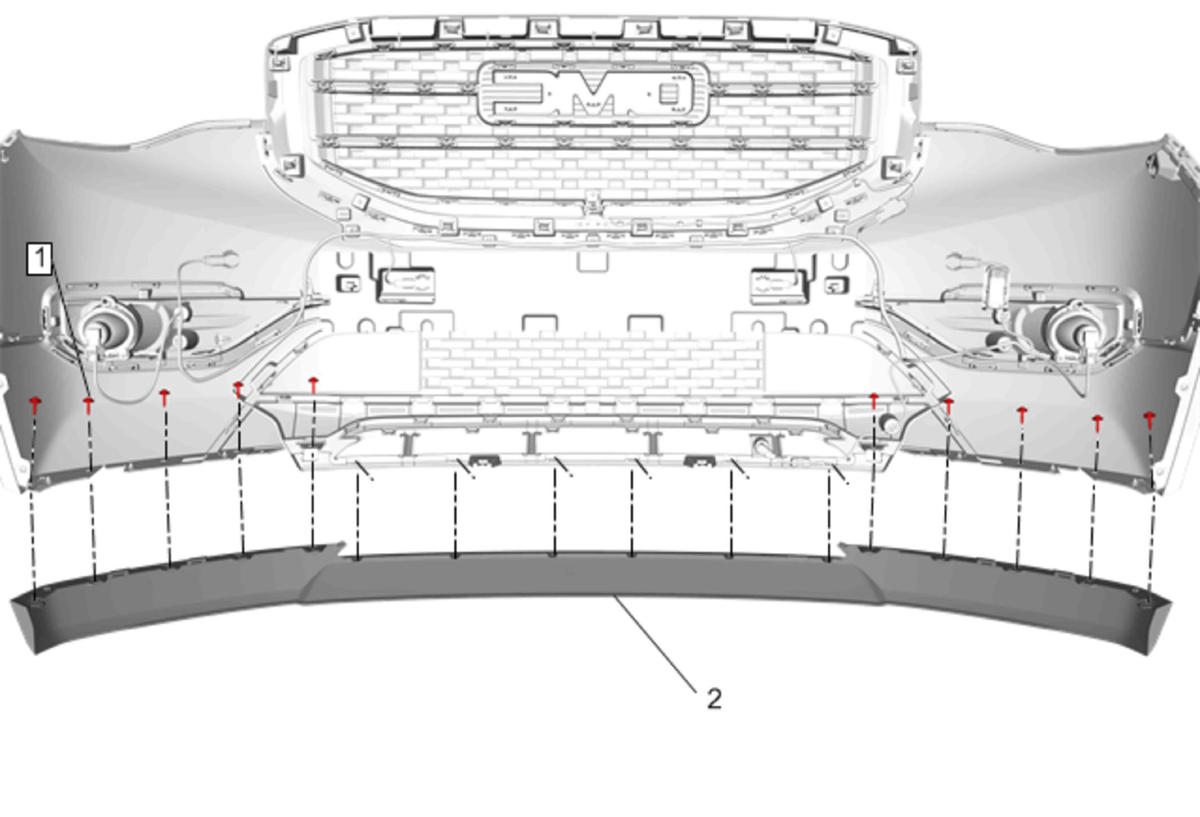

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Bumper Fascia Replacement |
|
| 1 | Front Bumper Fascia Air Deflector Bolt (Qty: 10)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Front Bumper Fascia Air Deflector Procedure Carefully release the front bumper fascia air deflector tabs from the lower grille. |
