Installation Procedure
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
- Install Transmission Fluid Auxiliary Cooler (2)
- Install Transmission Fluid Auxiliary Cooler Fastener (1) and tighten 9 N.m (80 lb in)

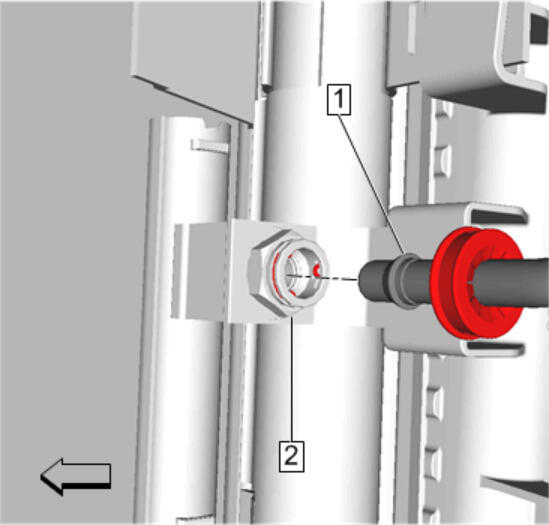

- Connect Transmission Fluid Cooler Outlet Pipe (1) @ Transmission Fluid Auxiliary Cooler (2) - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection

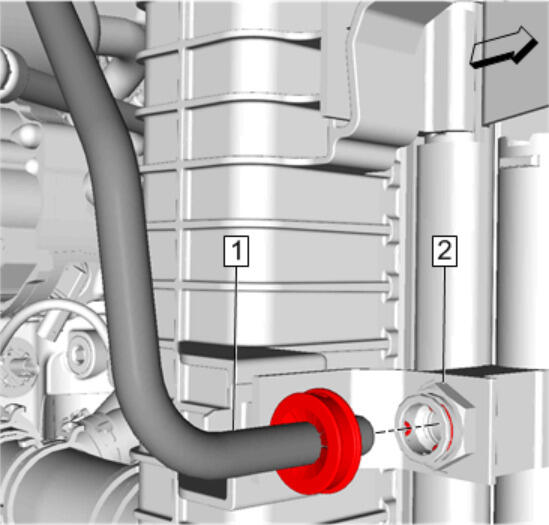

- Connect Transmission Fluid Cooler Pipe (1) @ Transmission Fluid Auxiliary Cooler (2) - Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
- Install Radiator Air Front Lower Baffle - Radiator Air Front Lower Baffle Replacement (LGX)
- Install Front Bumper Fascia - Front Bumper Fascia Replacement
- Fill the transmission to the proper level with NEW transmission fluid. Transmission Fluid Level and Condition Check
- Start the engine and inspect for leaks.
CAUTION:
Refer to Fastener Caution .
