Proper Disposal of the Replaced Evaporator
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
The replaced evaporator shall be disabled to ensure that it never be repaired or reused.
Disable the replaced evaporator by completing one of the following steps:
- Using tin snips sever a minimum of 3 of the evaporators tubes.
- Drill or Punch a minimum of two 25 mm (.25 inch) holes in each end tank.

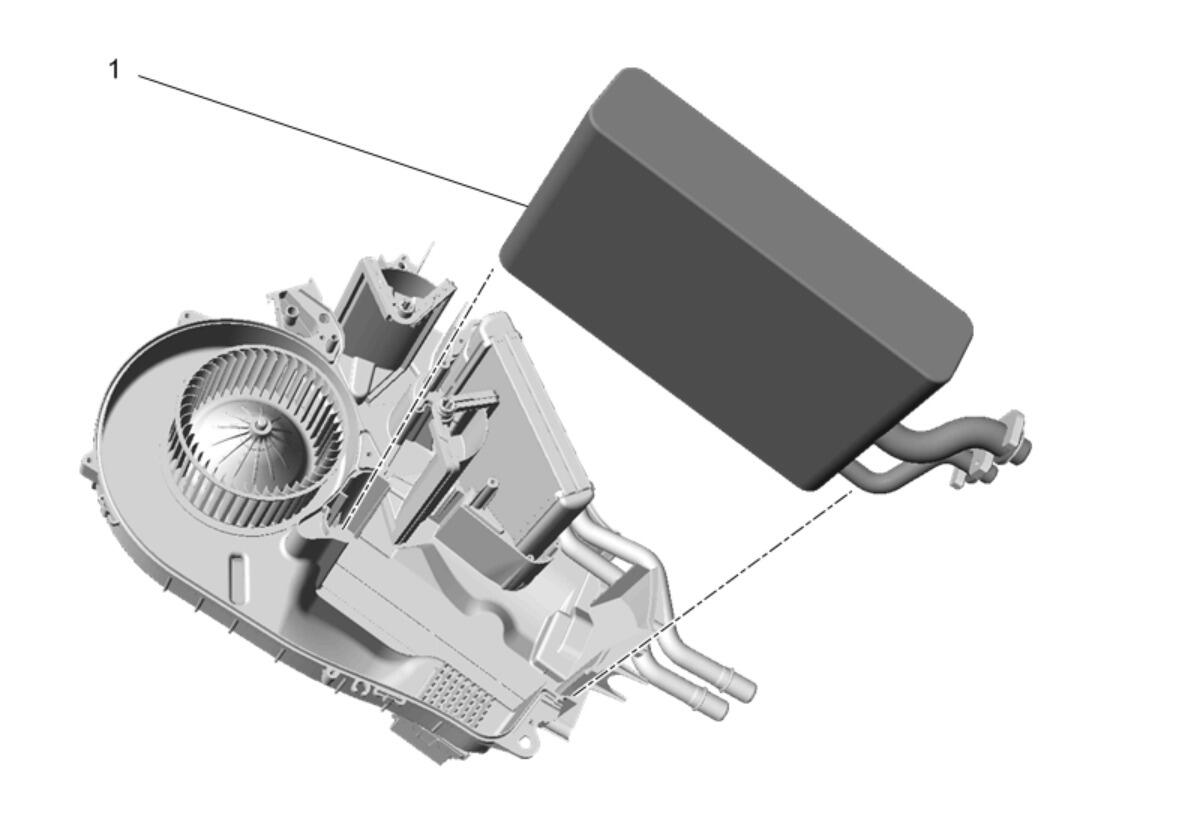

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove Auxiliary Air Conditioning Evaporator and Blower Case - Outboard (C69). Refer to Auxiliary Air Conditioning Evaporator and Blower Case Replacement - Outboard (C69) |
|
| 1 | Auxiliary Air Conditioning Evaporator Procedure
|
