Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

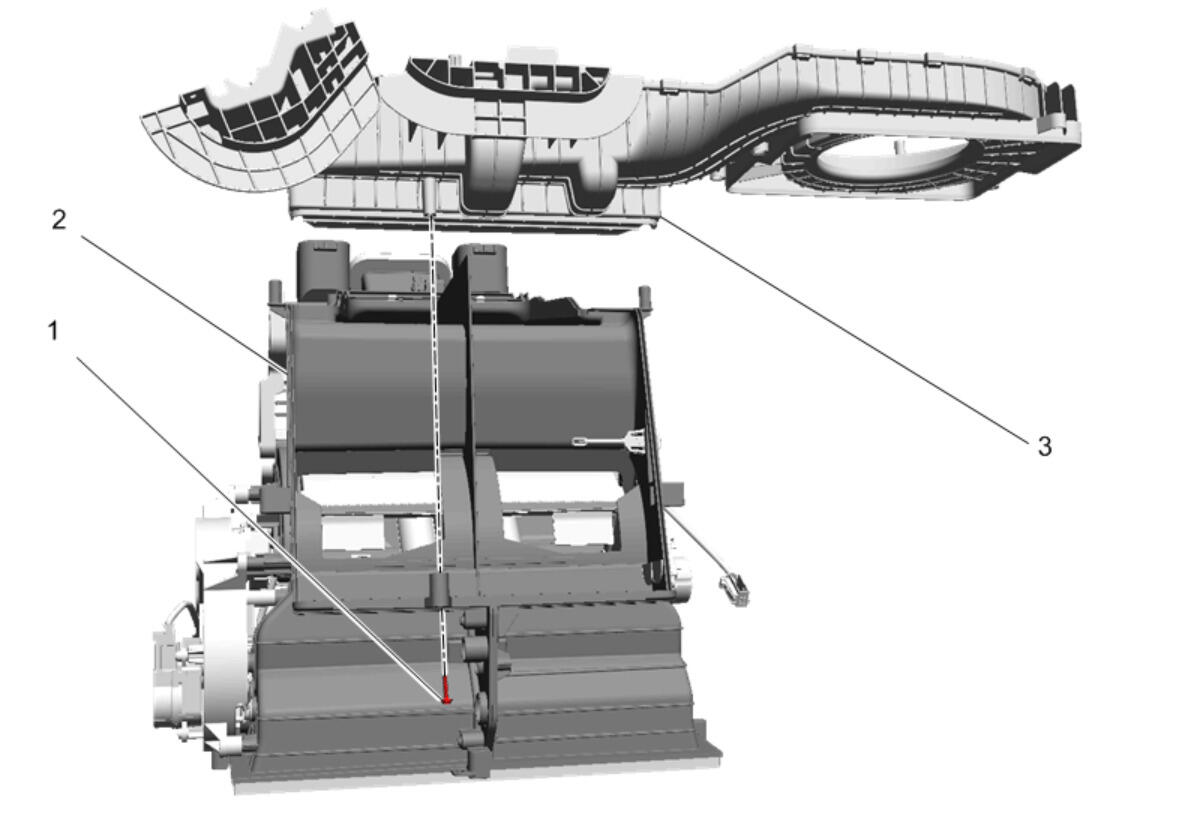

    Fig 1: Heater And Air Conditioning Evaporator And Blower Upper Case, Bolt And Air Distributor Case
    GM4310286Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install Air Distributor Case (2) @ Heater and Air Conditioning Evaporator and Blower Upper Case (3)
  2. Install and tighten Heater and Air Conditioning Evaporator and Blower Upper Case Bolt (1) to 2.5 N.m (22 lb in)
    3. Fig 2: Air Inlet Housing
    GM4297338Courtesy of GENERAL MOTORS COMPANY
  3. Install Air Inlet Housing (1). Refer to Air Inlet Housing Replacement
    4. Fig 3: Air Conditioning Evaporator and Heater and Air Conditioning Evaporator and Blower Upper Case
    GM4299098Courtesy of GENERAL MOTORS COMPANY
  4. Install Air Conditioning Evaporator (1) @ Heater and Air Conditioning Evaporator and Blower Upper Case (2)
    5. Fig 4: Heater and Air Conditioning Evaporator and Blower Lower Case
    GM4299048Courtesy of GENERAL MOTORS COMPANY
  5. Install Heater and Air Conditioning Evaporator and Blower Lower Case (1)
    6. Fig 5: Heater and Air Conditioning Evaporator and Blower Lower Case Bolts And Retainer Clips
    GM4382406Courtesy of GENERAL MOTORS COMPANY
  6. Install and tighten Heater and Air Conditioning Evaporator and Blower Lower Case Bolts (1) (Qty: 12) to 2.5 N.m (22 lb in)
  7. Install Retainer Clips (2) (Qty: 2)
    8. Fig 6: Heater and Air Conditioning Evaporator and Blower Lower Case Bolts
    GM4382381Courtesy of GENERAL MOTORS COMPANY
  8. Install and tighten Heater and Air Conditioning Evaporator and Blower Lower Case Bolts (1) (Qty: 6) to 2.5 N.m (22 lb in)
    9. Fig 7: Heater Core Bracket Bolts
    GM4310746Courtesy of GENERAL MOTORS COMPANY
  9. Install and tighten Heater Core Bracket Bolts (1) (Qty: 2) to 2.5 N.m (22 lb in)
    10. Fig 8: Retainer Clips
    GM4298996Courtesy of GENERAL MOTORS COMPANY
  10. Install Retainer Clips (1) (Qty: 5)
    11. Fig 9: Heater Core Inlet Tube
    GM4298312Courtesy of GENERAL MOTORS COMPANY
  11. Install Heater Core Inlet Tube (3). Refer to Heater Core Inlet Tube Replacement Heater Core Inlet Tube Replacement (C69)
    12. Fig 10: Heater Core Outlet Tube
    GM4298324Courtesy of GENERAL MOTORS COMPANY
  12. Install Heater Core Outlet Tube (3). Refer to Heater Core Outlet Tube Replacement Heater Core Outlet Tube Replacement (C69)
    13. Fig 11: Heater and Air Conditioning Evaporator and Blower Module
    GM4298004Courtesy of GENERAL MOTORS COMPANY
  13. Install Heater and Air Conditioning Evaporator and Blower Module (1). Refer to Heater and Air Conditioning Evaporator and Blower Module Removal and Installation (C59) Heater and Air Conditioning Evaporator and Blower Module Removal and Installation (Without C59)
