Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

With the aid of an assistant, carefully position the exhaust muffler assembly to the vehicle.
Support the exhaust muffler with a suitable jack.
Exhaust Rear Muffler Rear Hanger - Exhaust Rear Muffler Rear Hanger Replacement

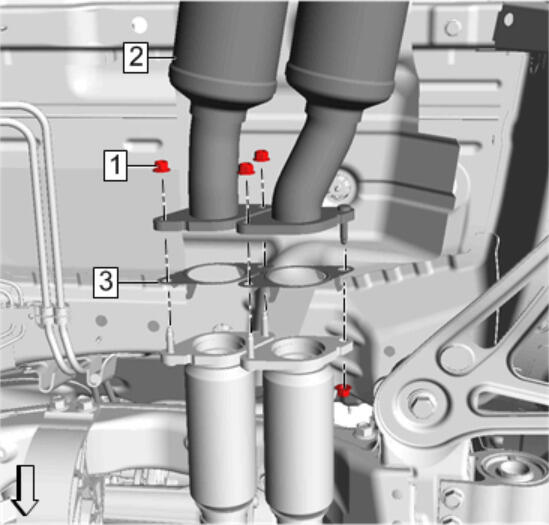

Fig 1: Exhaust Front Pipe Nut

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Install a NEW gasket.

Install Exhaust Gasket (3)
Connect Exhaust Muffler Assembly (2) @Exhaust Front Pipe

CAUTION:

Refer to Fastener Caution .

Install Exhaust Front Pipe (1) and tighten 22 N.m (16 lb ft)

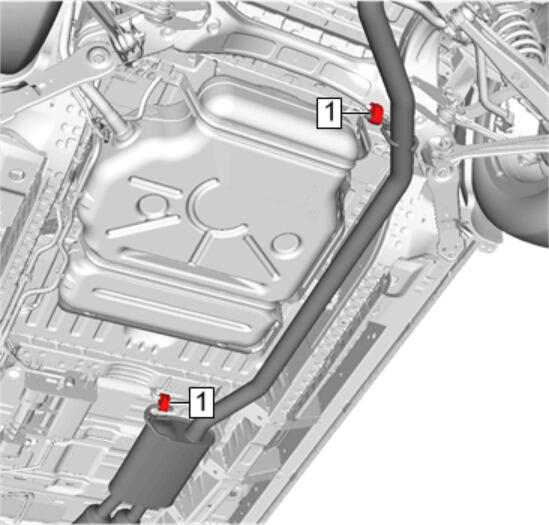

Fig 2: Exhaust Muffler Isolator

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Clean and lubricate the exhaust isolators for ease of installation.

Connect Exhaust Muffler Isolator (1)

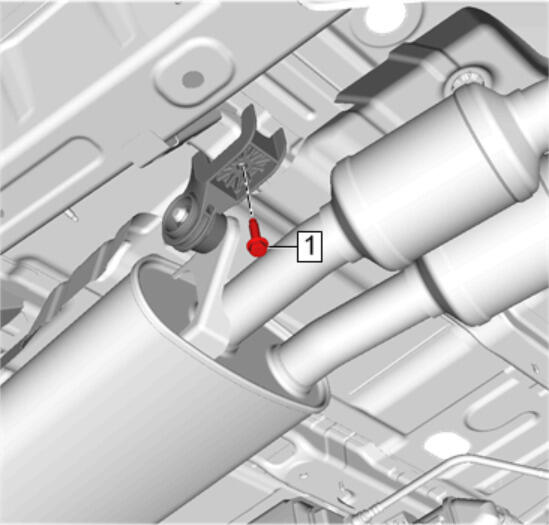

Fig 3: Exhaust Intermediate Hanger Bolt

Courtesy of GENERAL MOTORS COMPANY

Install Exhaust Intermediate Hanger Bolt (1) and tighten 22 N.m (16 lb ft)
Start the engine and check for exhaust leaks.
