Radiator Outlet Hose Tee Replacement (LGX)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

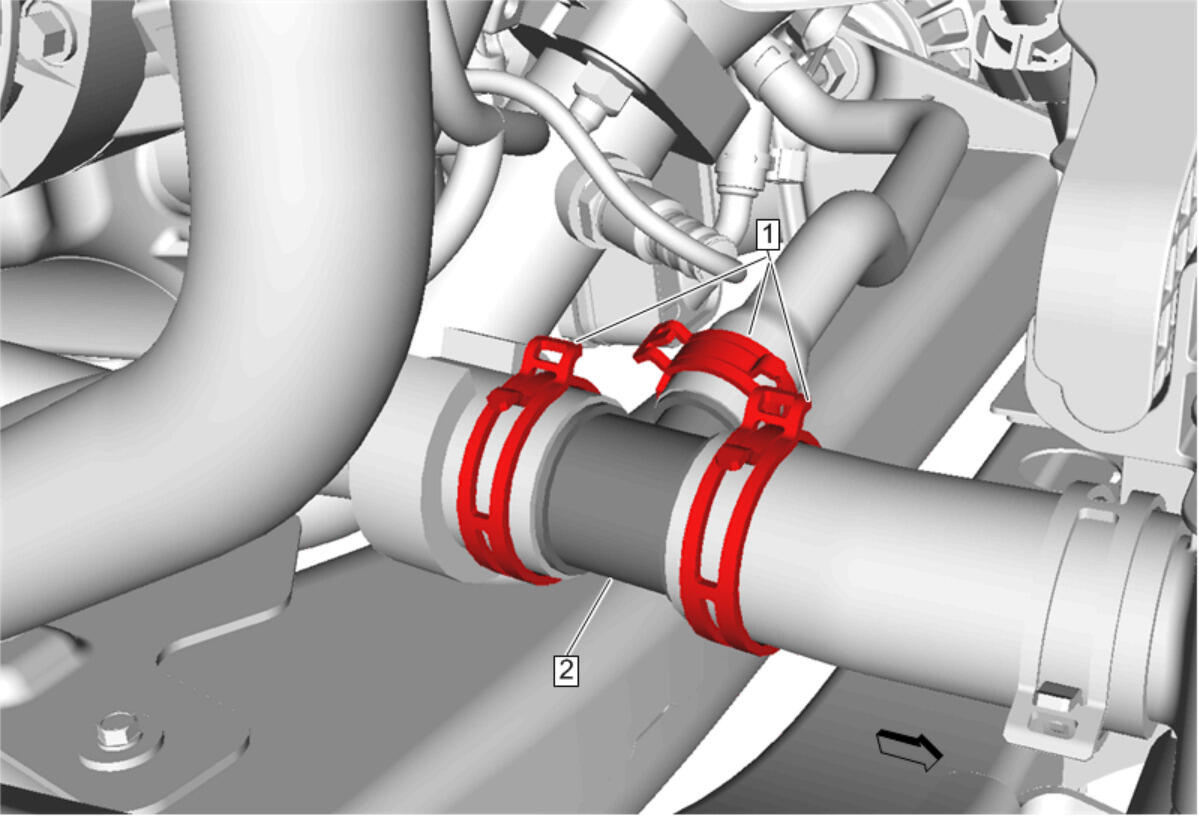

Fig 1: Radiator Outlet Hose Tee (LGX)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716) Cooling System Draining and Filling (Static) Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement
1	Radiator Outlet Hose Clamp (3) Procedure Refer to Hose Clamp Replacement Guidelines - Spring Type
2	Radiator Outlet Hose Tee Procedure Fill the cooling system to the proper level. Refer to Cooling System Draining and Filling (GE-47716) Cooling System Draining and Filling (Static) Start the engine and check for coolant leaks.

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716) Cooling System Draining and Filling (Static)
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement

Radiator Outlet Hose Clamp (3)
Procedure
Refer to Hose Clamp Replacement Guidelines - Spring Type

Radiator Outlet Hose Tee

Procedure

Fill the cooling system to the proper level. Refer to Cooling System Draining and Filling (GE-47716) Cooling System Draining and Filling (Static)
Start the engine and check for coolant leaks.
