Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716) Cooling System Draining and Filling (Static)
  2. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement

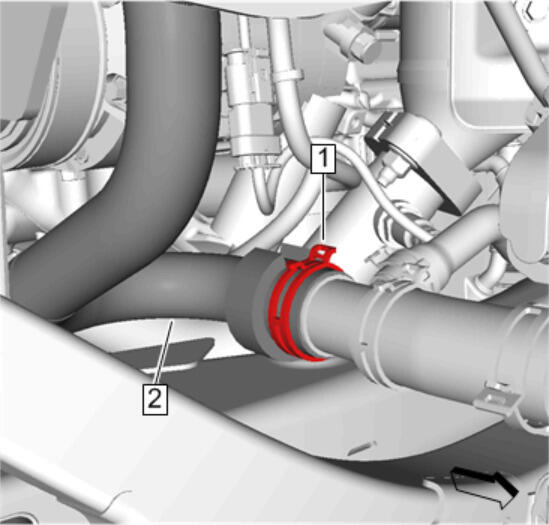

    3. Fig 1: Radiator Outlet Hose And Clamp
    GM4291842Courtesy of GENERAL MOTORS COMPANY
  3. Disengage Radiator Outlet Hose Clamp (1). Refer to Hose Clamp Replacement Guidelines - Spring Type
  4. Remove Radiator Outlet Hose (2) @ Radiator Outlet Hose Tee

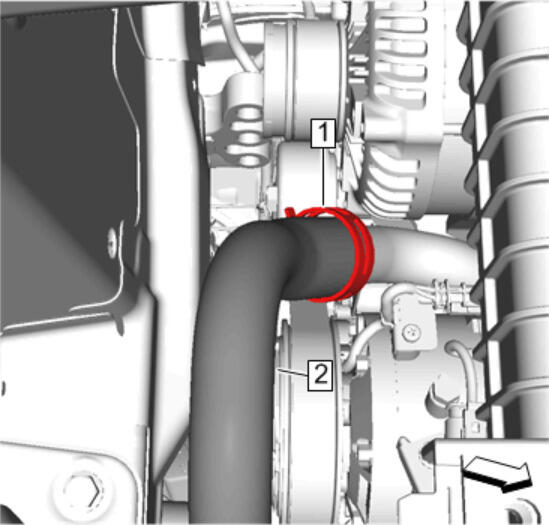

    5. Fig 2: Radiator Outlet Hose And Clamp
    GM4291843Courtesy of GENERAL MOTORS COMPANY
  5. Disengage Radiator Outlet Hose Clamp (1). Refer to Hose Clamp Replacement Guidelines - Spring Type
  6. Remove Radiator Outlet Hose (2) @ Water Pump Inlet Pipe
  7. Remove Radiator Outlet Hose (2)
