Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement

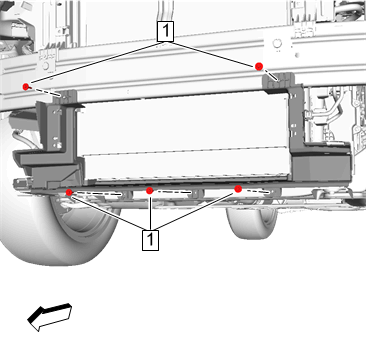

    2. Fig 1: Radiator Air Lower Baffle Bolts
    GM4372315Courtesy of GENERAL MOTORS COMPANY
  2. Remove Radiator Air Front Lower Baffle Bolts (1) (Qty: 5)

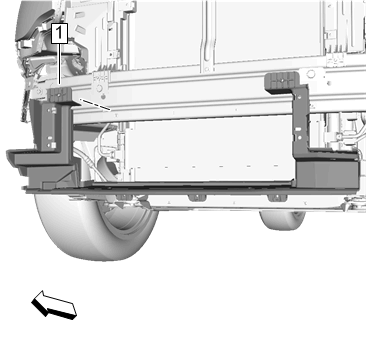

    3. Fig 2: Radiator Air Front Lower Baffle
    GM4372318Courtesy of GENERAL MOTORS COMPANY
  3. Remove Radiator Air Front Lower Baffle (1)
