Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement
    2. Fig 1: Intake Air Splash Shield And Fasteners
    GM4364075Courtesy of GENERAL MOTORS COMPANY
  2. Remove Intake Air Splash Shield (3). Refer to Intake Air Splash Shield Replacement
  3. Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716) Cooling System Draining and Filling (Static)
    4. Fig 2: Radiator Outlet Hose And Clamps
    GM4291719Courtesy of GENERAL MOTORS COMPANY
  4. Remove Radiator Outlet Hose (2) @ Radiator. Refer to Radiator Outlet Hose Replacement (LGX Radiator Outlet Hose Tee to Radiator)
    5. Fig 3: Radiator Surge Tank Inlet Hose And Clamp
    GM4289810Courtesy of GENERAL MOTORS COMPANY
  5. Remove Radiator Surge Tank Inlet Hose (2) @ Radiator. Refer to Radiator Surge Tank Inlet Hose Replacement (LGX From Radiator Surge Tank to Radiator and Radiator Surge Tank Outlet Pipe)
    6. Fig 4: Radiator Inlet Hose And Clamps
    GM4291593Courtesy of GENERAL MOTORS COMPANY
  6. Remove Radiator Inlet Hose (2) @ Radiator. Refer to Radiator Inlet Hose Replacement (LGX)

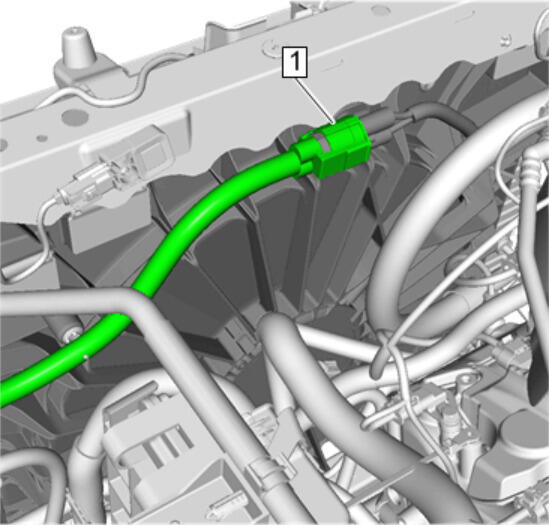

    7. Fig 5: Engine Coolant Fan Electrical Connector
    GM4293101Courtesy of GENERAL MOTORS COMPANY
  7. Disconnect Electrical Connector (1) @ Engine Coolant Fan
  8. Disconnect Wiring Harness @ Engine Coolant Fan
    9. Fig 6: Radiator Air Front Lower Baffle
    GM4372318Courtesy of GENERAL MOTORS COMPANY
  9. Remove Radiator Air Front Lower Baffle (1). Refer to Radiator Air Front Lower Baffle Replacement (LGX)
    10. Fig 7: Radiator Air Upper Baffle
    GM4372139Courtesy of GENERAL MOTORS COMPANY
  10. If equipped, Remove Radiator Air Upper Baffle (1). Refer to Radiator Air Upper Baffle Replacement (LGX)

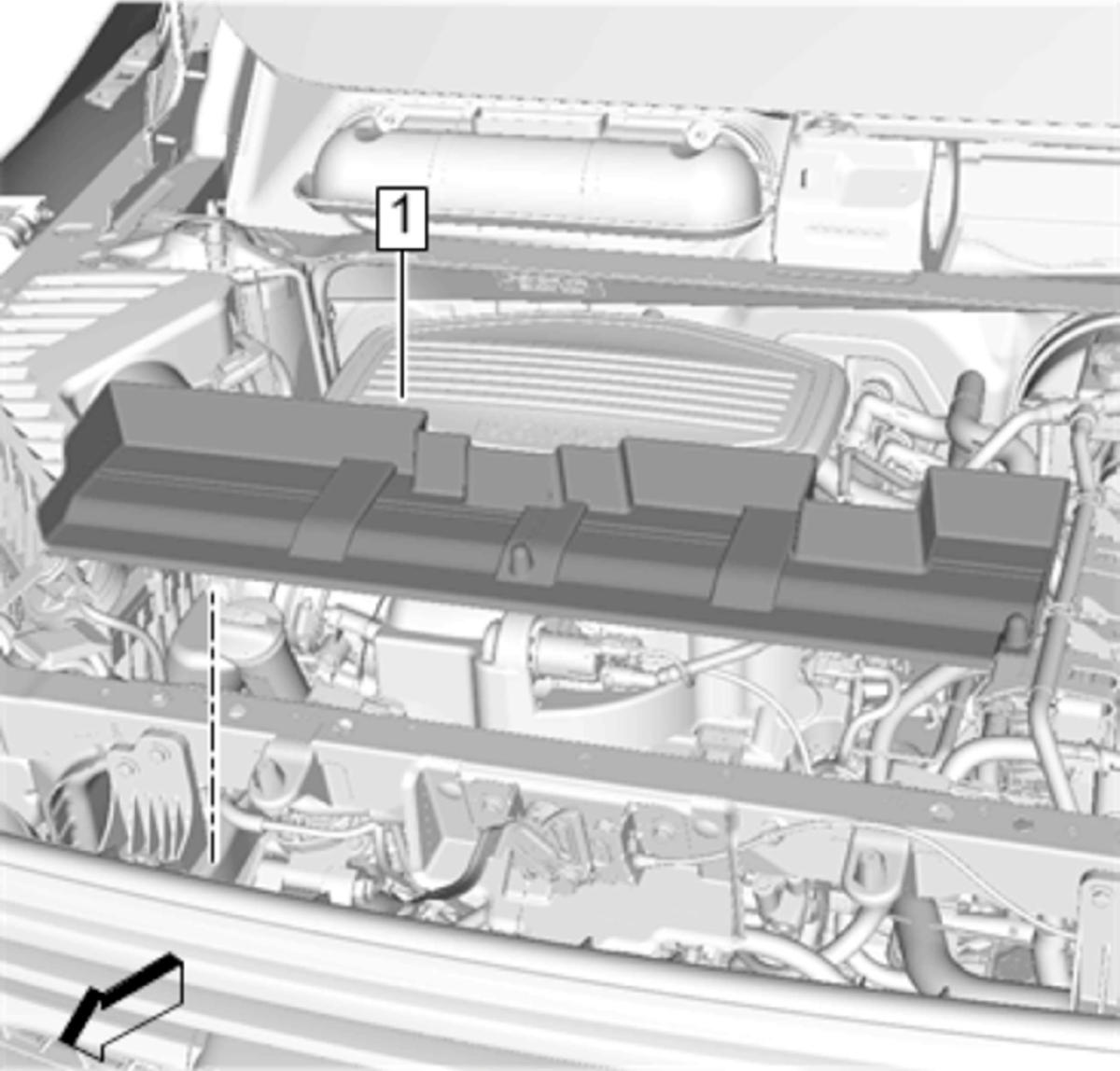

    11. Fig 8: Radiator Air Side Upper Baffle
    GM4372806Courtesy of GENERAL MOTORS COMPANY
  11. Remove Radiator Air Side Upper Baffle (1). Refer to Radiator Air Side Upper Baffle Replacement

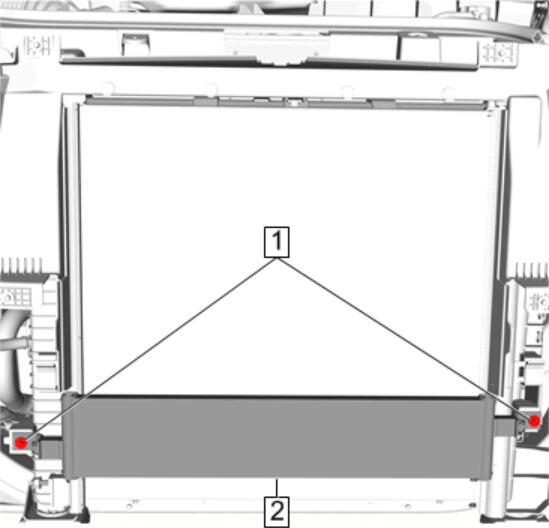

    12. Fig 9: Transmission Fluid Auxiliary Cooler
    GM4288069Courtesy of GENERAL MOTORS COMPANY
  12. Remove Transmission Fluid Auxiliary Cooler (2). Refer to Transmission Fluid Auxiliary Cooler Replacement (with V08)

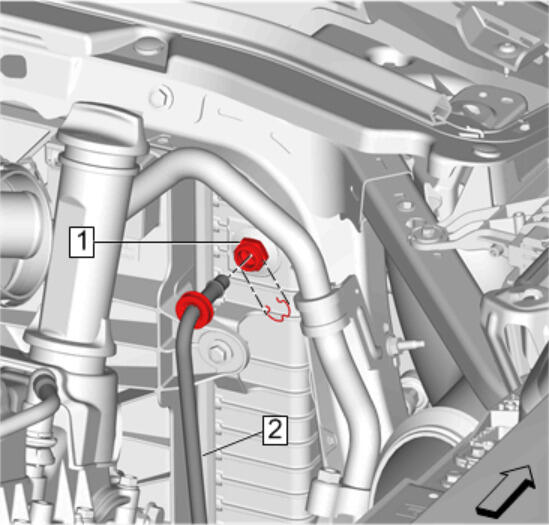

    13. Fig 10: Transmission Fluid Cooler Pipe
    GM4291104Courtesy of GENERAL MOTORS COMPANY
  13. Remove Transmission Fluid Cooler Pipe (2) @ Radiator. Refer to Transmission Fluid Cooler Pipe Replacement (LGX with V08)

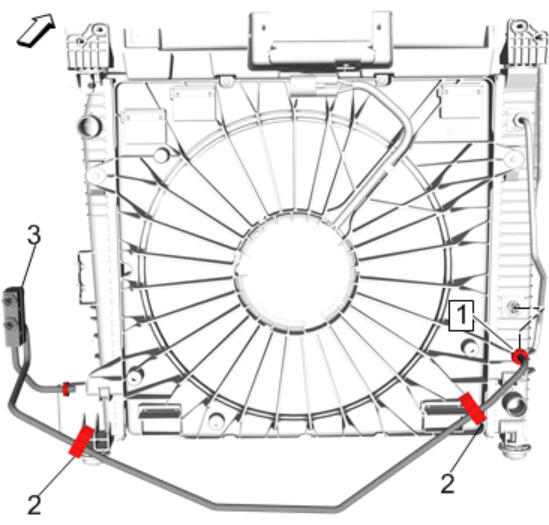

    14. Fig 11: Transmission Fluid Cooler Thermal Bypass Valve
    GM4289819Courtesy of GENERAL MOTORS COMPANY
  14. Remove Transmission Fluid Cooler Thermal Bypass Valve (3). Refer to Transmission Fluid Cooler Thermal Bypass Valve Replacement (V08)
    15. Fig 12: Air Conditioning Condenser
    GM4296487Courtesy of GENERAL MOTORS COMPANY
  15. Remove Air Conditioning Condenser (1). Refer to Air Conditioning Condenser Replacement (With V08)

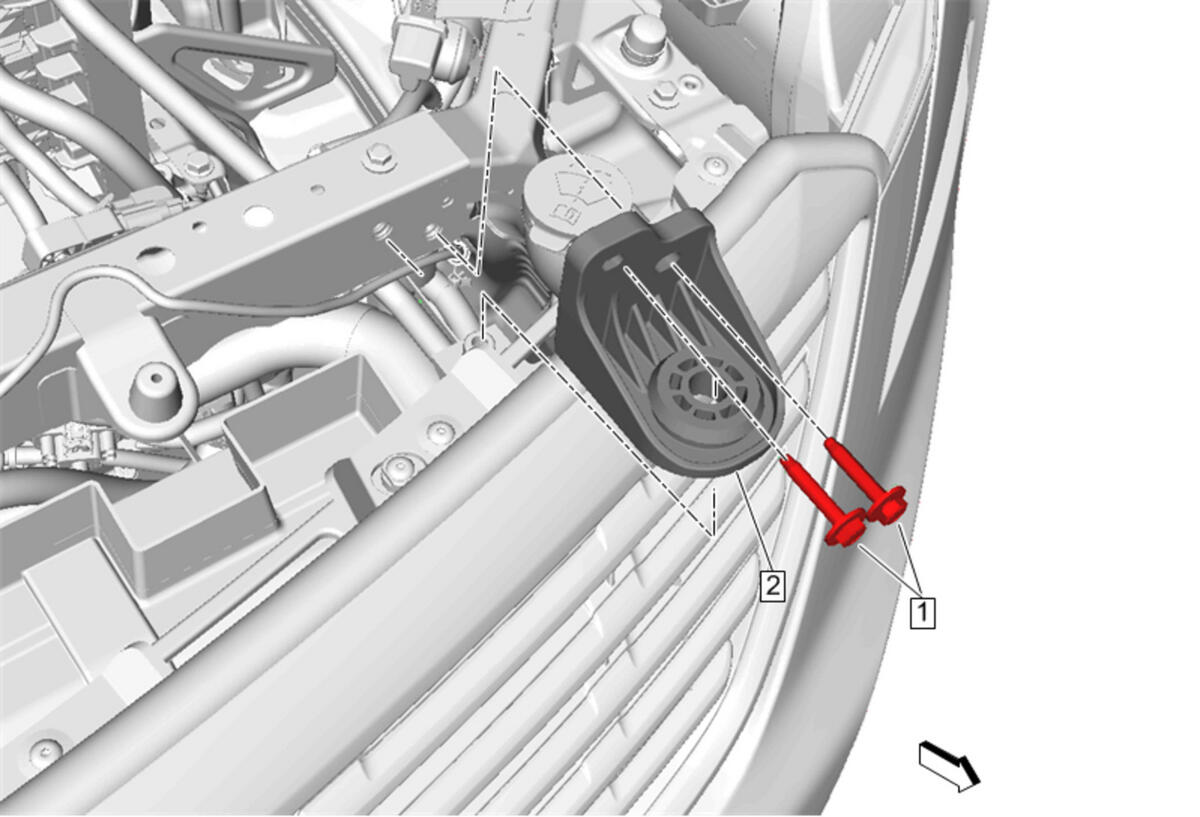

    16. Fig 13: Radiator Upper Bracket (Left Side)
    GM4292152Courtesy of GENERAL MOTORS COMPANY
  16. Remove Radiator Upper Bracket (2). Refer to Radiator Upper Bracket Replacement (Left Side)

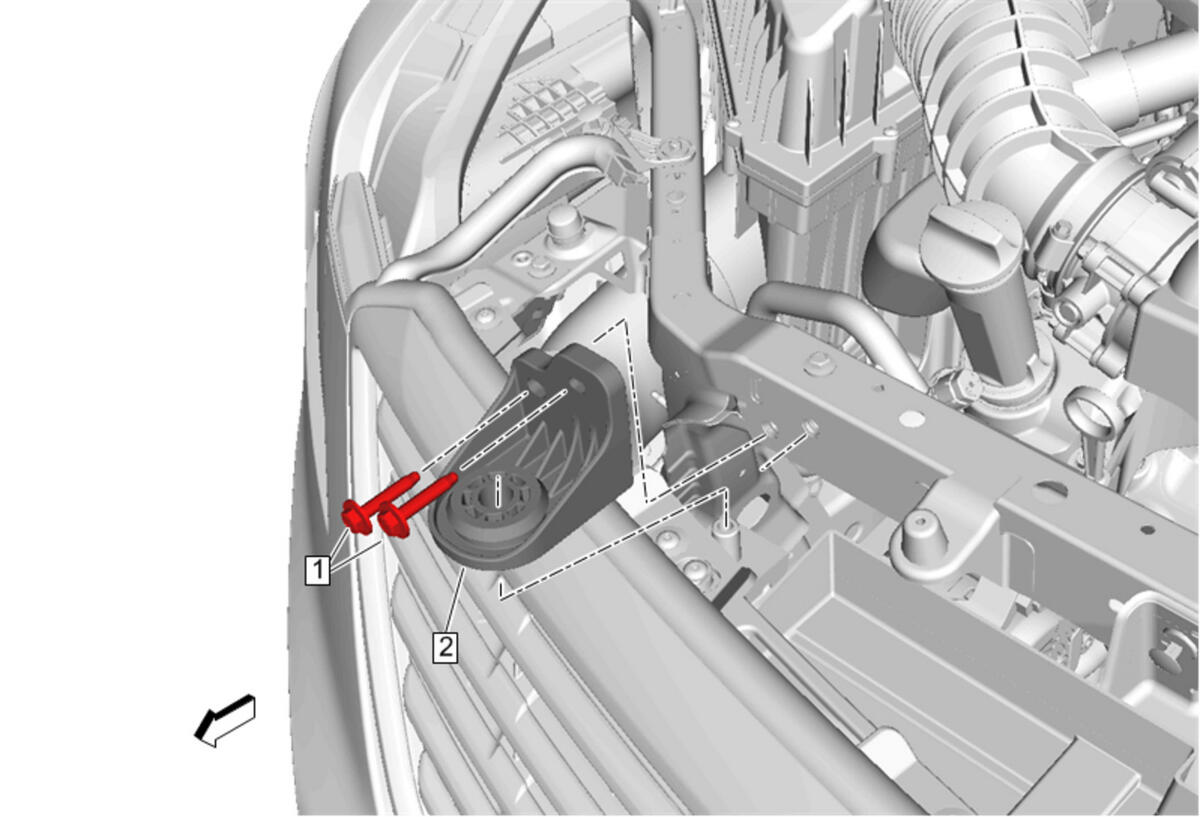

    17. Fig 14: Radiator Upper Bracket (Right Side)
    GM4292151Courtesy of GENERAL MOTORS COMPANY
  17. Radiator Upper Bracket (2). Refer to Radiator Upper Bracket Replacement (Right Side)

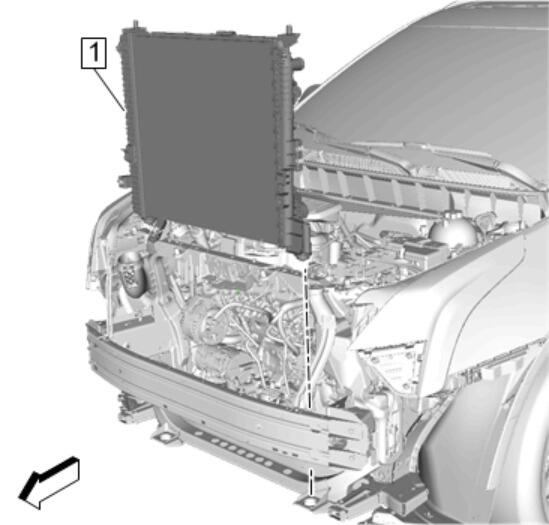

    18. Fig 15: Engine Coolant Fan Module Radiator
    GM4293296Courtesy of GENERAL MOTORS COMPANY
  18. Remove Engine Coolant Fan Module Radiator (1)
  19. Transfer components as necessary.
