Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement
    2. Fig 1: Intake Air Splash Shield And Fasteners
    GM4364075Courtesy of GENERAL MOTORS COMPANY
  2. Remove Intake Air Splash Shield (3). Refer to Intake Air Splash Shield Replacement
    3. Fig 2: Front Bumper Fascia Center Support
    GM4361327Courtesy of GENERAL MOTORS COMPANY
  3. Remove Front Bumper Fascia Center Support (2). Refer to Front Bumper Fascia Center Support Replacement
    4. Fig 3: Front Bumper Fascia Center Support - Upper
    GM4363217Courtesy of GENERAL MOTORS COMPANY
  4. Remove Front Bumper Fascia Center Support - Upper (4). Refer to Front Bumper Fascia Center Support Replacement - Upper
  5. Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716) Cooling System Draining and Filling (Static)
    6. Fig 4: Radiator Outlet Hose
    GM4374398Courtesy of GENERAL MOTORS COMPANY
  6. Remove Radiator Outlet Hose (2) @ Radiator. Refer to Radiator Outlet Hose Replacement (LCV)
    7. Fig 5: Radiator Surge Tank Inlet Hose And Clamp
    GM4289810Courtesy of GENERAL MOTORS COMPANY
  7. Remove Radiator Surge Tank Inlet Hose (2) @ Radiator. Refer to Radiator Surge Tank Inlet Hose Replacement (LCV From Radiator Surge Tank to Radiator and Radiator Surge Tank Outlet Pipe)
    8. Fig 6: Radiator Inlet Hose
    GM4374385Courtesy of GENERAL MOTORS COMPANY
  8. Remove Radiator Inlet Hose (2) @ Radiator. Refer to Radiator Outlet Hose Replacement (LCV)
    9. Fig 7: Engine Coolant Fan Electrical Connector
    GM4293101Courtesy of GENERAL MOTORS COMPANY
  9. Disconnect Electrical Connector (1) @ Engine Coolant Fan
  10. Disconnect Wiring Harness @ Engine Coolant Fan

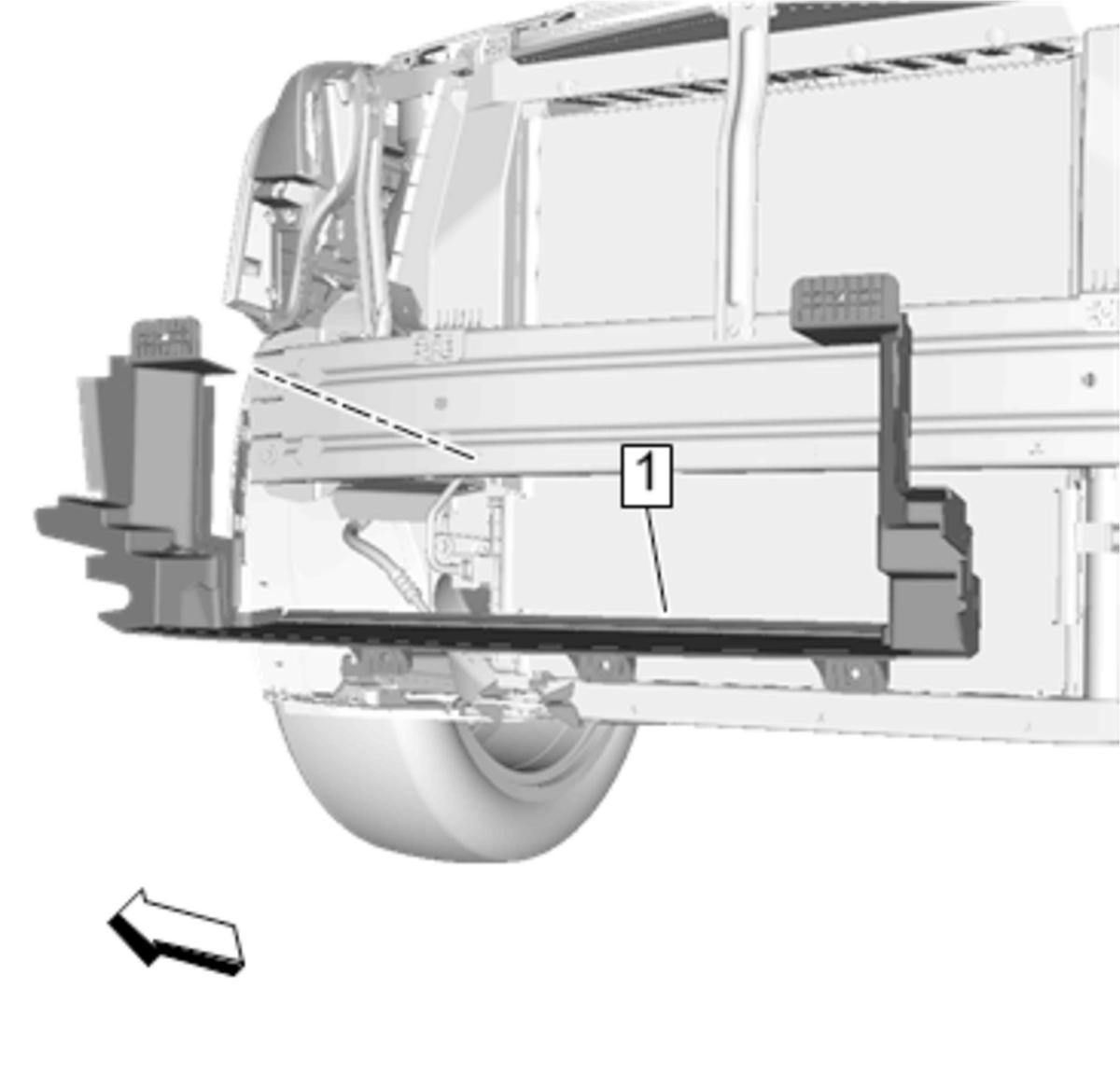

    11. Fig 8: Radiator Air Lower Baffle
    GM4292295Courtesy of GENERAL MOTORS COMPANY
  11. Remove Radiator Air Lower Baffle (1). Refer to Radiator Air Lower Baffle Replacement (LCV)
    12. Fig 9: Radiator Air Side Upper Baffle
    GM4372806Courtesy of GENERAL MOTORS COMPANY
  12. Remove Radiator Air Side Upper Baffle (1). Refer to Radiator Air Side Upper Baffle Replacement
    13. Fig 10: Air Conditioning Condenser
    GM4296487Courtesy of GENERAL MOTORS COMPANY
  13. Remove Air Conditioning Condenser (1). Refer to Air Conditioning Condenser Replacement (With V08)Air Conditioning Condenser Replacement (Without V08)

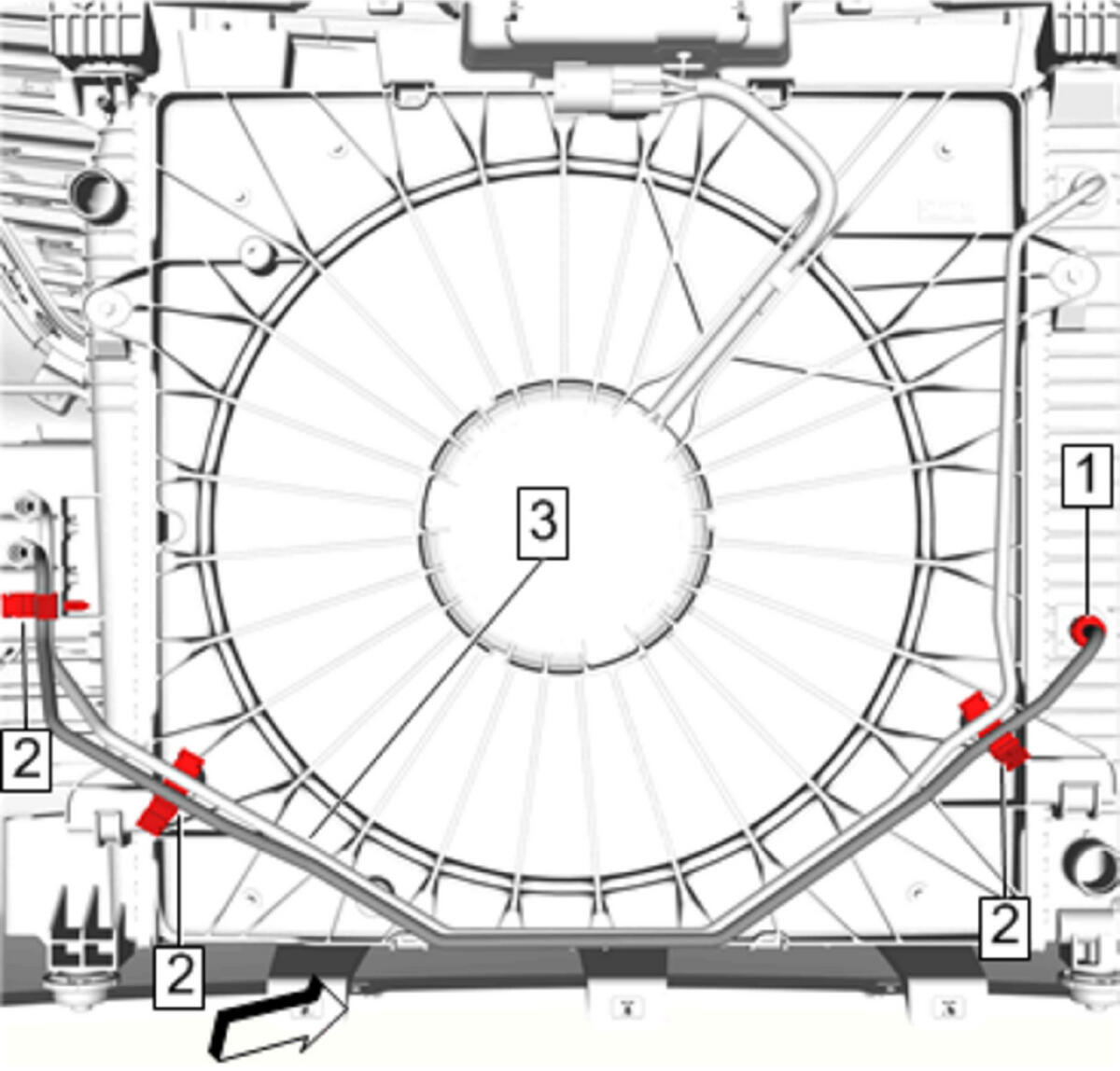

    14. Fig 11: Transmission Fluid Auxiliary Cooler Inlet Pipe
    GM4286911Courtesy of GENERAL MOTORS COMPANY
  14. Remove Transmission Fluid Auxiliary Cooler Inlet Pipe (3). Refer to Transmission Fluid Auxiliary Cooler Inlet Pipe Replacement (LCV)

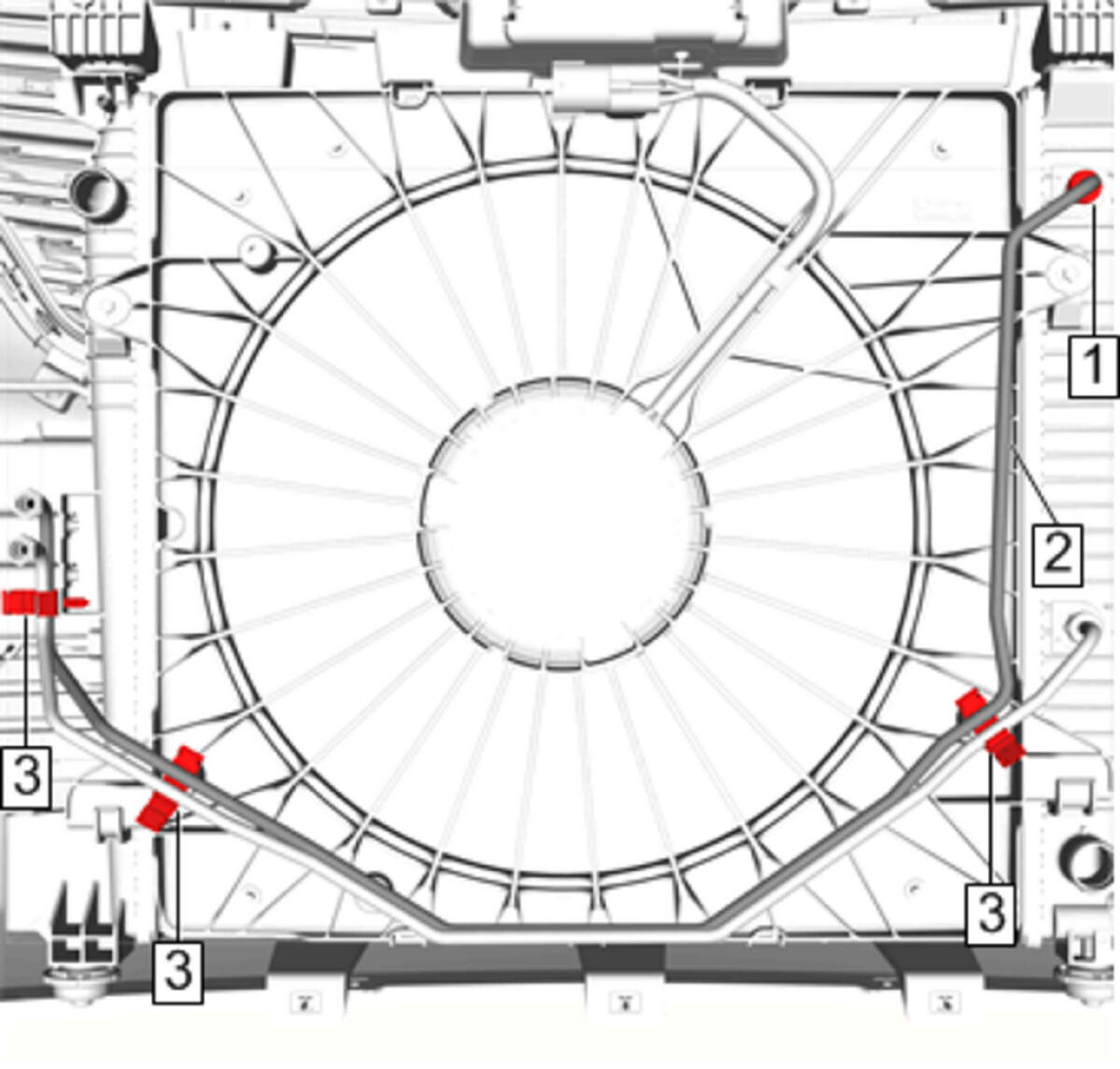

    15. Fig 12: Transmission Fluid Auxiliary Cooler Outlet Pipe
    GM4286915Courtesy of GENERAL MOTORS COMPANY
  15. Remove Transmission Fluid Auxiliary Cooler Outlet Pipe (3). Refer to Transmission Fluid Auxiliary Cooler Outlet Pipe Replacement (LCV)
    16. Fig 13: Radiator Upper Bracket (Left Side)
    GM4292152Courtesy of GENERAL MOTORS COMPANY
  16. Remove Radiator Upper Bracket (2). Refer to Radiator Upper Bracket Replacement (Left Side)
    17. Fig 14: Radiator Upper Bracket (Right Side)
    GM4292151Courtesy of GENERAL MOTORS COMPANY
  17. Remove Radiator Upper Bracket (2). Refer to Radiator Upper Bracket Replacement (Right Side)
    18. Fig 15: Engine Coolant Fan Module Radiator
    GM4293296Courtesy of GENERAL MOTORS COMPANY
  18. Remove Engine Coolant Fan Module Radiator (1)
  19. Transfer components as necessary.
