Windshield Washer Nozzle Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
Preliminary Procedure
Air Inlet Grille Panel Replacement |
| 1 |

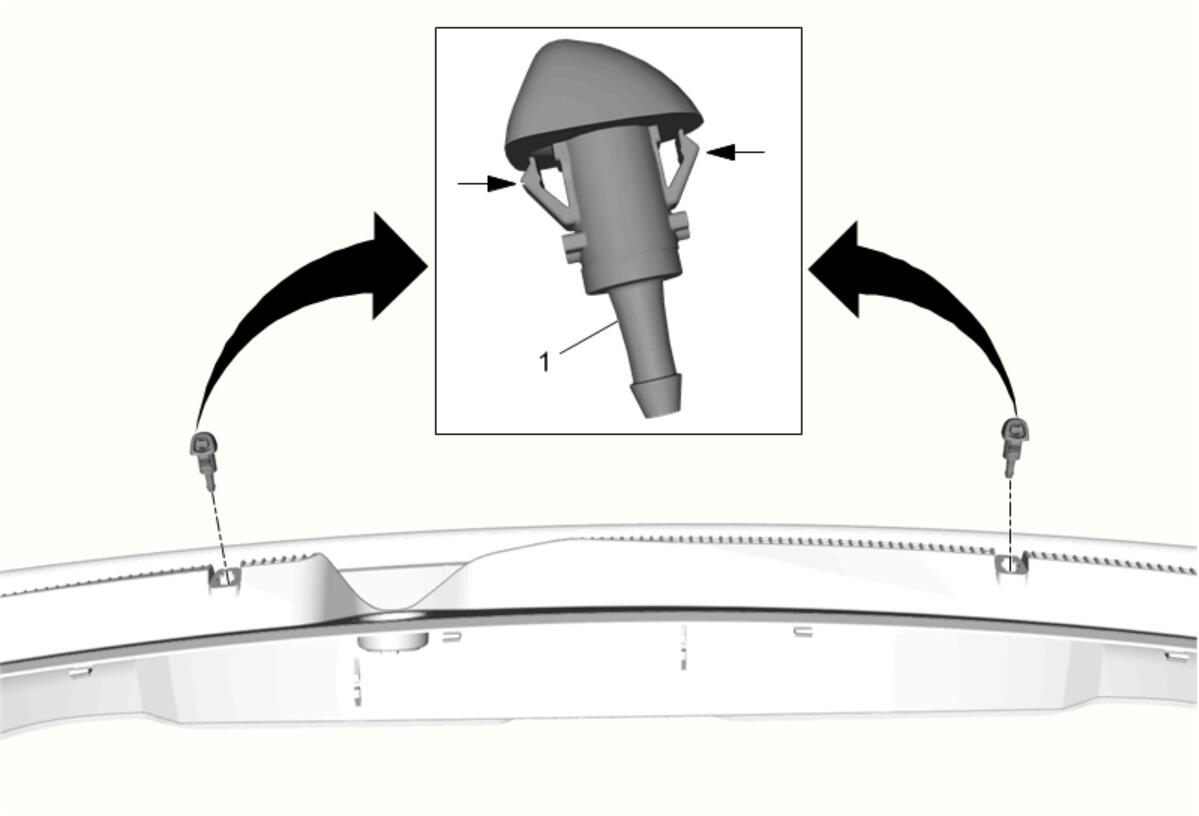

Windshield Washer Nozzle Procedure
- Disconnect the windshield washer nozzle hose at the windshield washer nozzle being serviced.
- Compress the locking tabs on the windshield washer nozzle.
- Push the windshield washer nozzle outward from the air inlet grille panel.
- Remove the windshield washer nozzle from the air inlet grille panel.
|
