Rear Window Wiper Motor Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

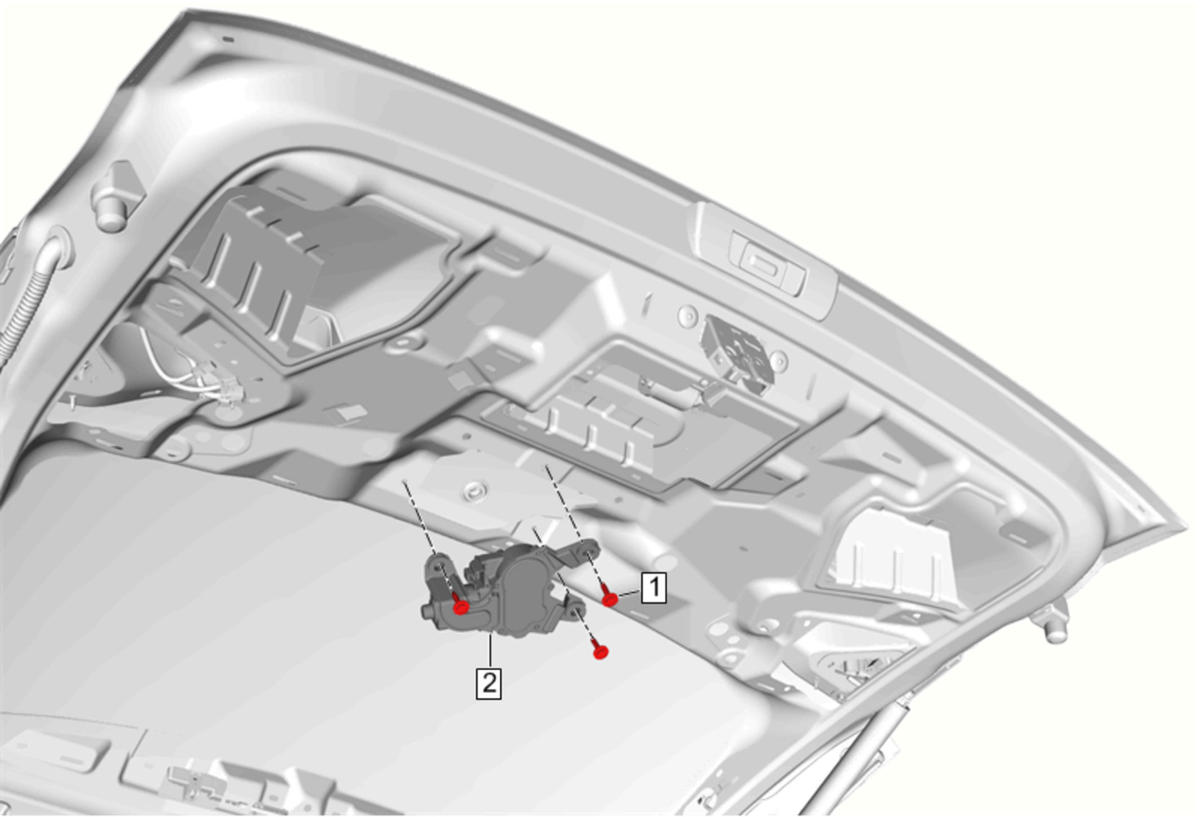

Fig 1: Rear Window Wiper Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Window Wiper Arm Replacement . Open the liftgate. Liftgate Lower Trim Finish Panel Replacement .
1	Rear Window Wiper Motor Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Rear Window Wiper Motor Procedure Disconnect the electrical connector. Remove the rear window wiper motor from the vehicle.

Callout

Component Name

Preliminary Procedures

Rear Window Wiper Arm Replacement .
Open the liftgate.
Liftgate Lower Trim Finish Panel Replacement .

Rear Window Wiper Motor Bolt (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Rear Window Wiper Motor

Procedure

Disconnect the electrical connector.
Remove the rear window wiper motor from the vehicle.
