Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Rear Window Washer Nozzle Hose

Courtesy of GENERAL MOTORS COMPANY

Disconnect Rear Window Washer Nozzle Hose (1) @Rear Window Washer Pump Hose (2)

Fig 2: Radiator Surge Tank

Courtesy of GENERAL MOTORS COMPANY

Reposition Radiator Surge Tank (2) Radiator Surge Tank Replacement (LGX with V08)Radiator Surge Tank Replacement (LCV)

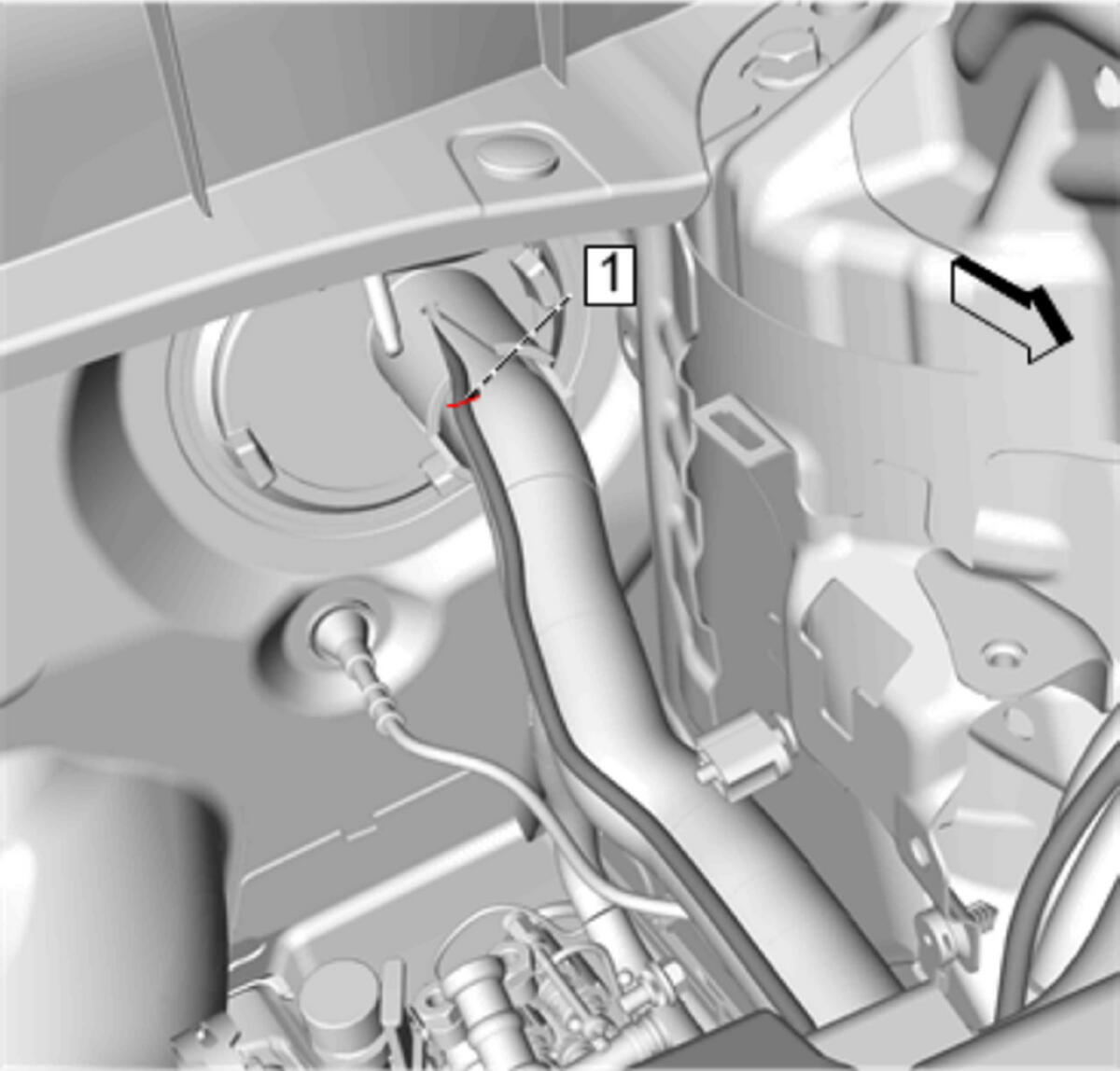

Fig 3: Rear Window Washer Nozzle Hose

Courtesy of GENERAL MOTORS COMPANY

Cut off the rear window washer nozzle hose (1) at the wiring harness and underhood dash panel.

Fig 4: Instrument Panel Assembly

Courtesy of GENERAL MOTORS COMPANY

Remove Instrument Panel Assembly (1)Instrument Panel Assembly Replacement (IO5/IO6)Instrument Panel Assembly Replacement (IOB)

Fig 5: Left Side Window Garnish Molding

Courtesy of GENERAL MOTORS COMPANY

Remove the left side window garnish molding. (1)Windshield Garnish Molding Replacement

Fig 6: Rear Window Washer Nozzle Hose And Retainer

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Reposition wiring harness and connectors as necessary to gain access to the part.

Remove Rear Window Washer Nozzle Hose (1) @Rear Window Washer Nozzle Hose Retainer (2)
Disconnect Rear Window Washer Nozzle Hose (1) @Rear Window Washer Nozzle Hose - Headliner (3)

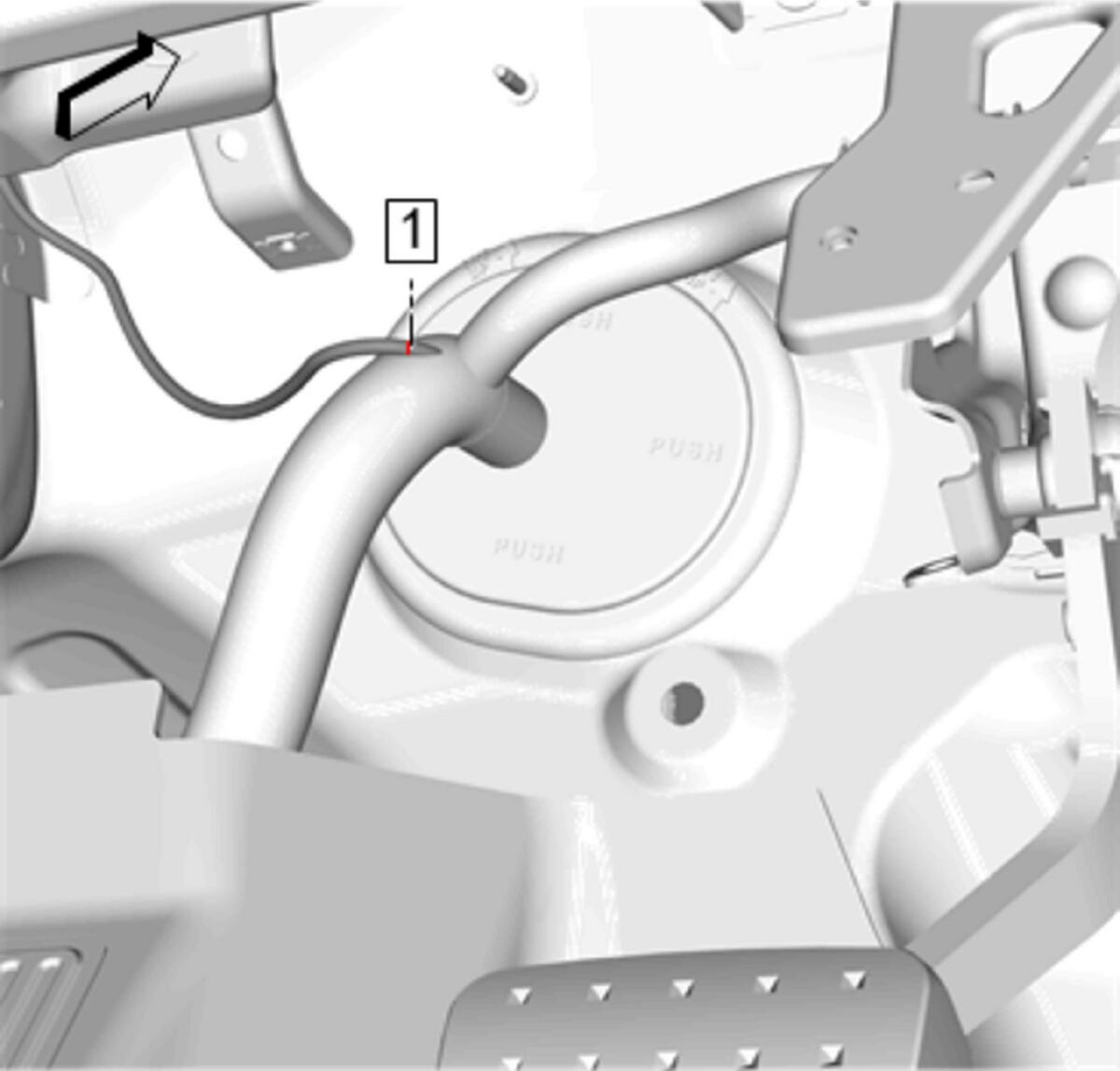

Fig 7: Rear Window Washer Nozzle Hose

Courtesy of GENERAL MOTORS COMPANY

Remove Rear Window Washer Nozzle Hose (1)
