Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

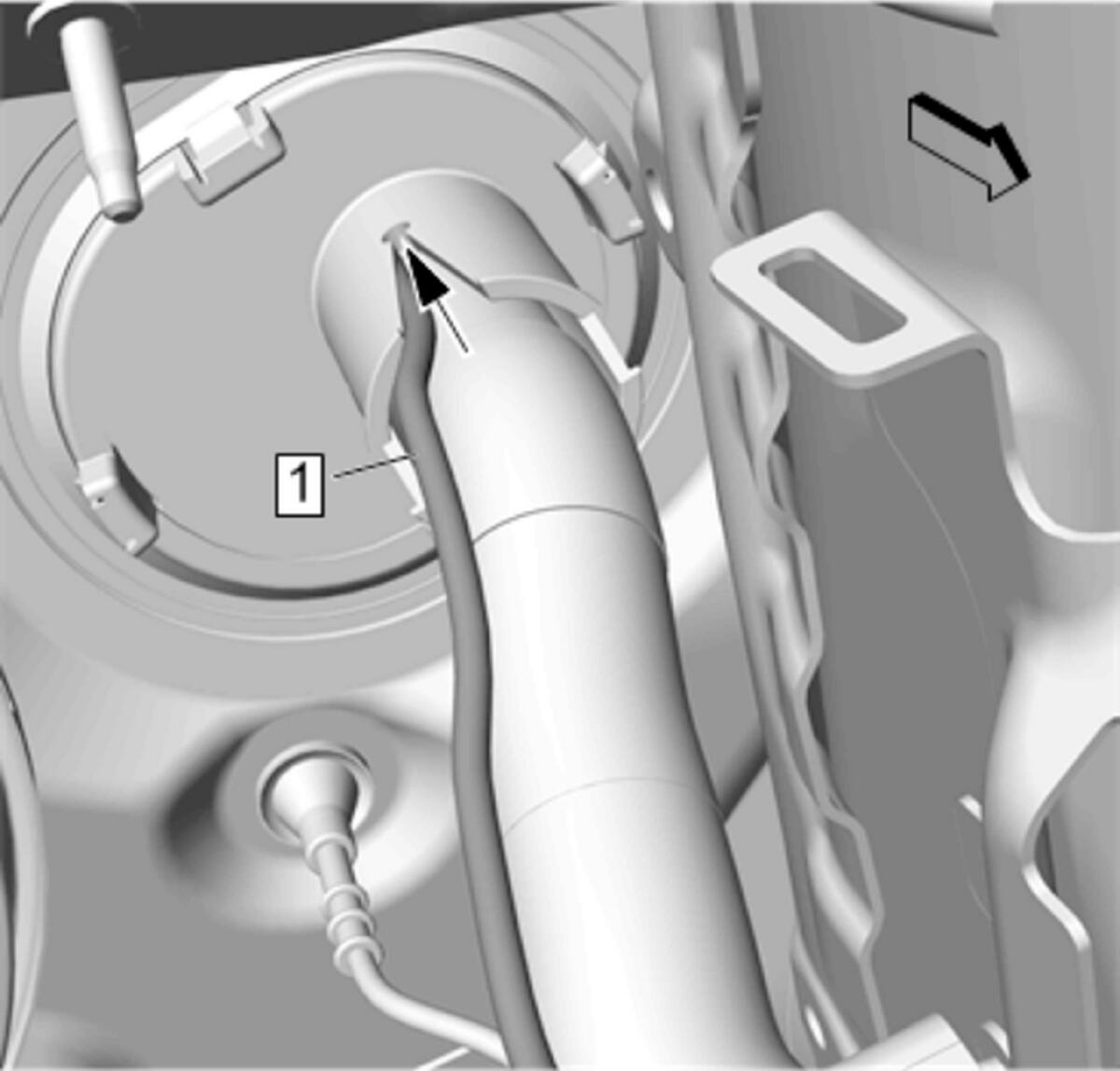

    Fig 1: Slide Rear Window Washer Nozzle Hose Through Dash Panel
    GM4310881Courtesy of GENERAL MOTORS COMPANY
  1. Slide the rear window washer nozzle hose through the dash panel.

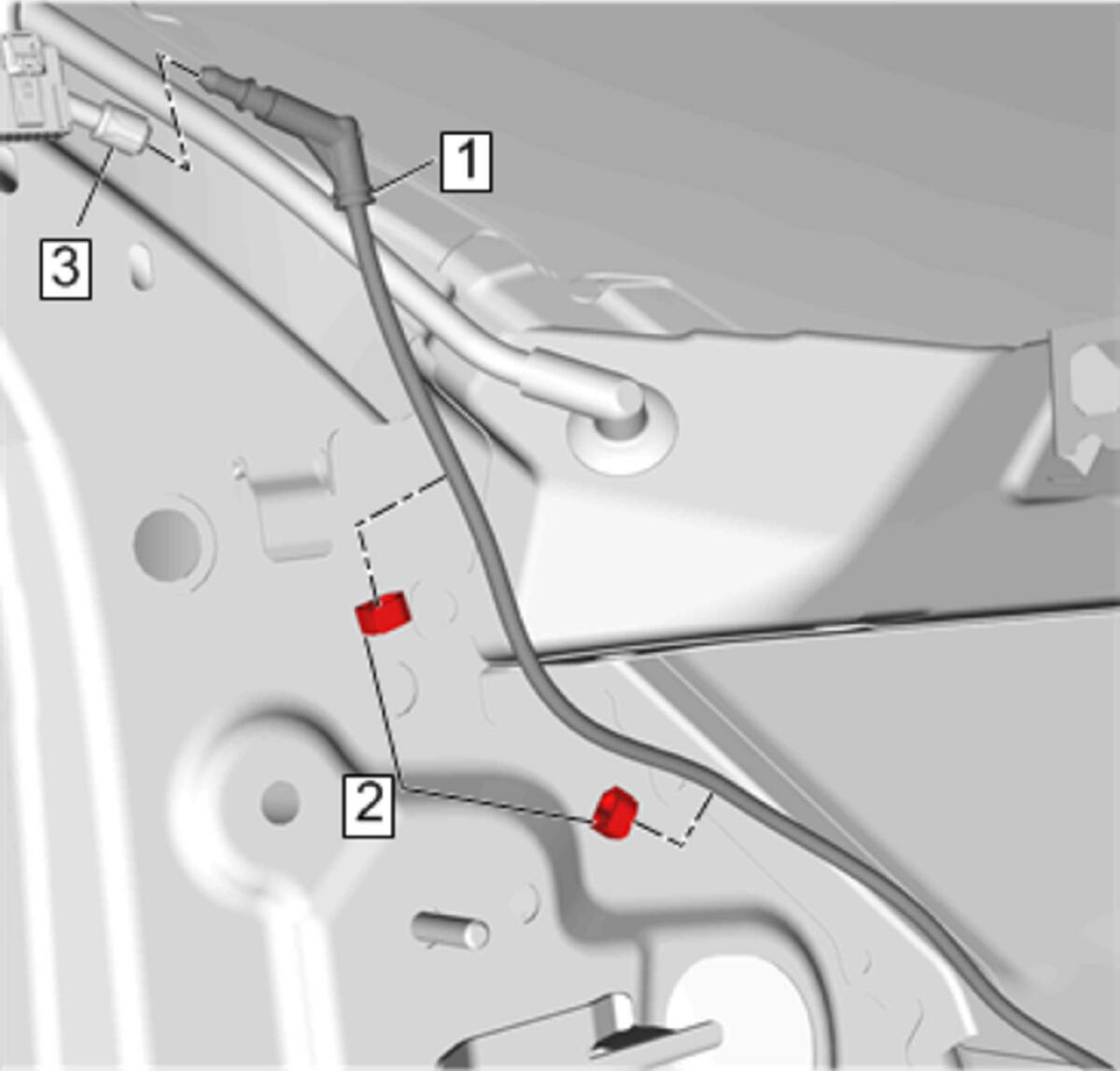

    2. Fig 2: Rear Window Washer Nozzle Hose And Retainer
    GM4310811Courtesy of GENERAL MOTORS COMPANY
  2. Connect Rear Window Washer Nozzle Hose (1) @Rear Window Washer Nozzle Hose - Headliner (3)
  3. Install Rear Window Washer Nozzle Hose (1) @Rear Window Washer Nozzle Hose Retainer (2)
    4. Fig 3: Left Side Window Garnish Molding
    GM4294260Courtesy of GENERAL MOTORS COMPANY
  4. Install the left side window garnish molding. (1)Windshield Garnish Molding Replacement
    5. Fig 4: Instrument Panel Assembly
    GM4297660Courtesy of GENERAL MOTORS COMPANY
  5. Install Instrument Panel Assembly (1)Instrument Panel Assembly Replacement (IO5/IO6)Instrument Panel Assembly Replacement (IOB)
    6. Fig 5: Radiator Surge Tank
    GM4196451Courtesy of GENERAL MOTORS COMPANY
  6. Radiator Surge Tank (2) Radiator Surge Tank Replacement (LGX with V08)Radiator Surge Tank Replacement (LCV)

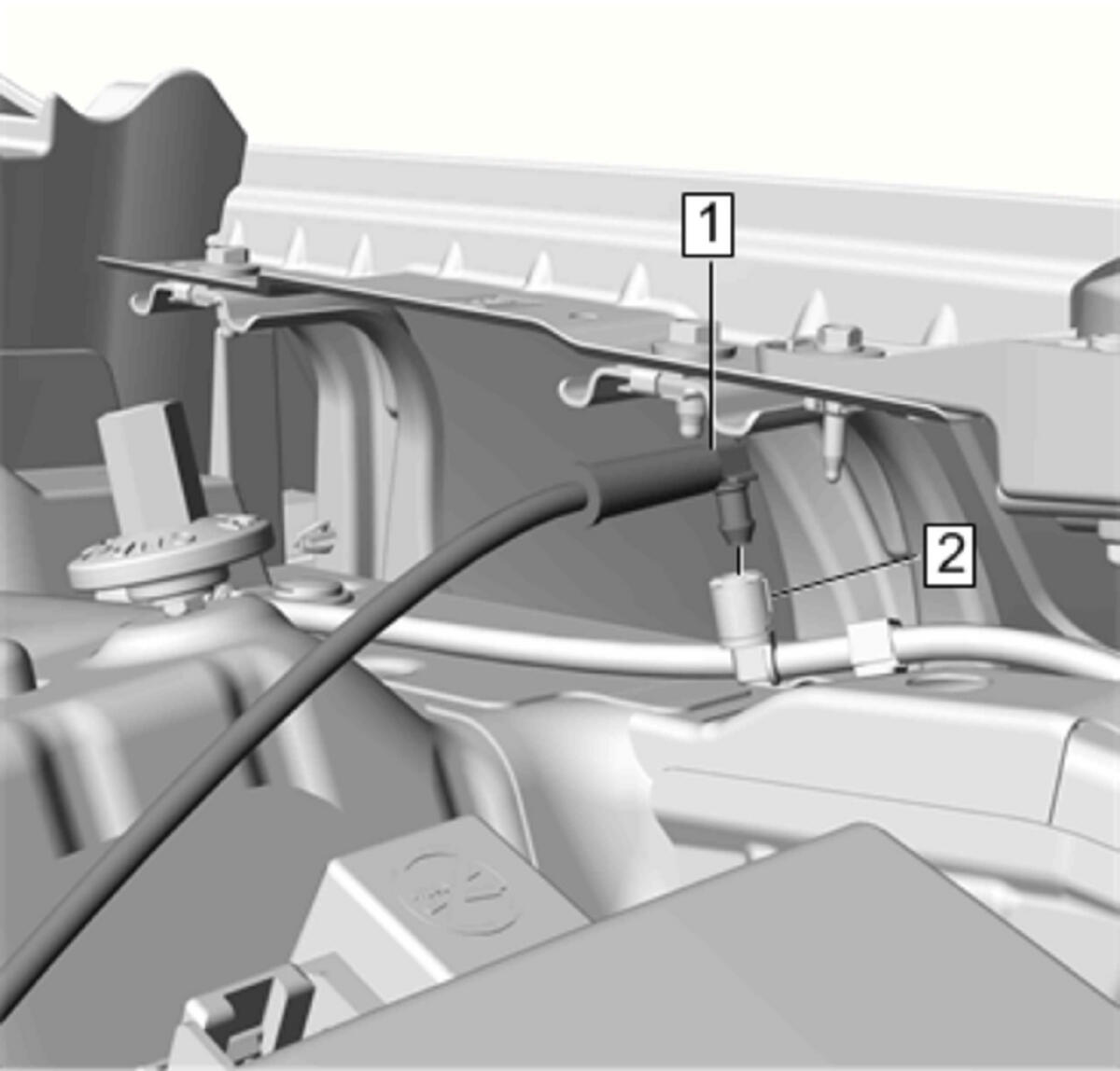

    7. Fig 6: Rear Window Washer Nozzle Hose
    GM4310690Courtesy of GENERAL MOTORS COMPANY
  7. Connect Rear Window Washer Nozzle Hose (1) @Rear Window Washer Pump Hose (2)
