Plenum Upper Panel Water Deflector Replacement
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

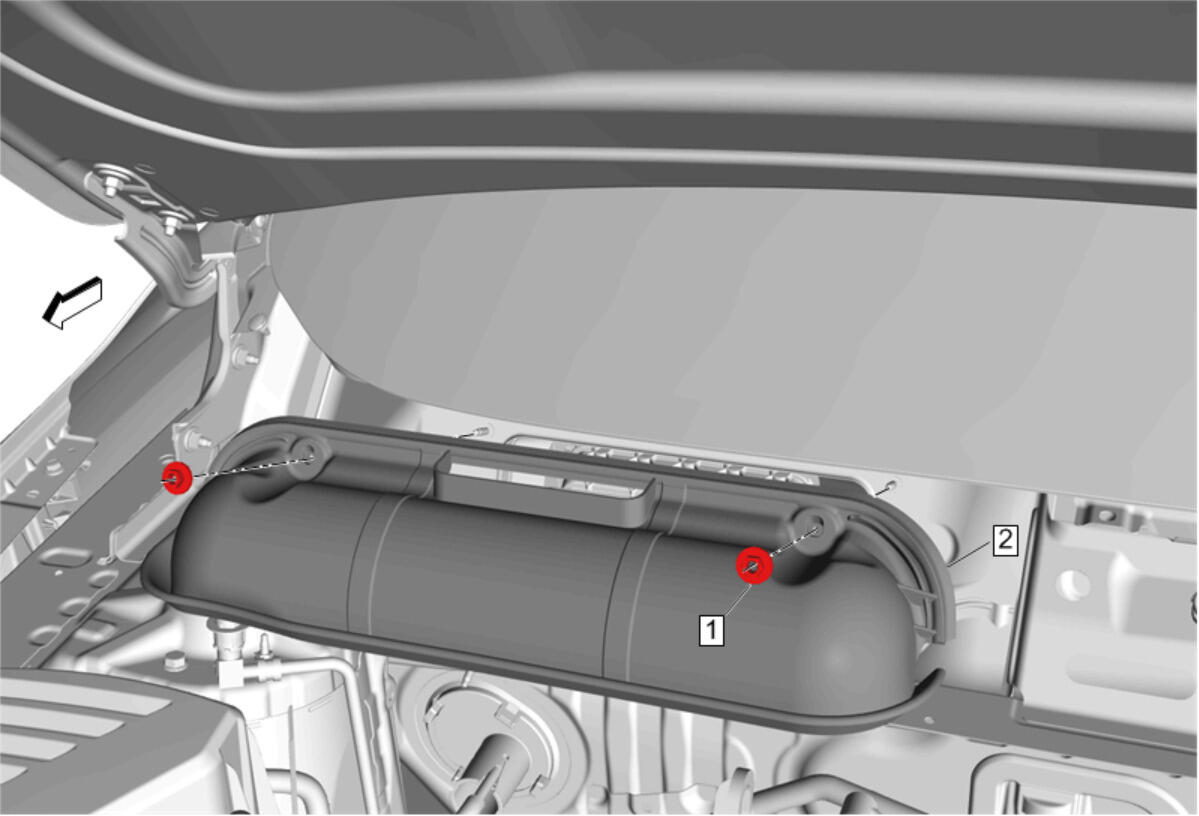

| Callout | Component Name |
|---|---|
| Preliminary Procedure Air Inlet Grille Panel Replacement |
|
| 1 | Plenum Water Deflector Retainer (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Plenum Upper Panel Water Deflector |
