Rear Side Door Wiring Harness Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

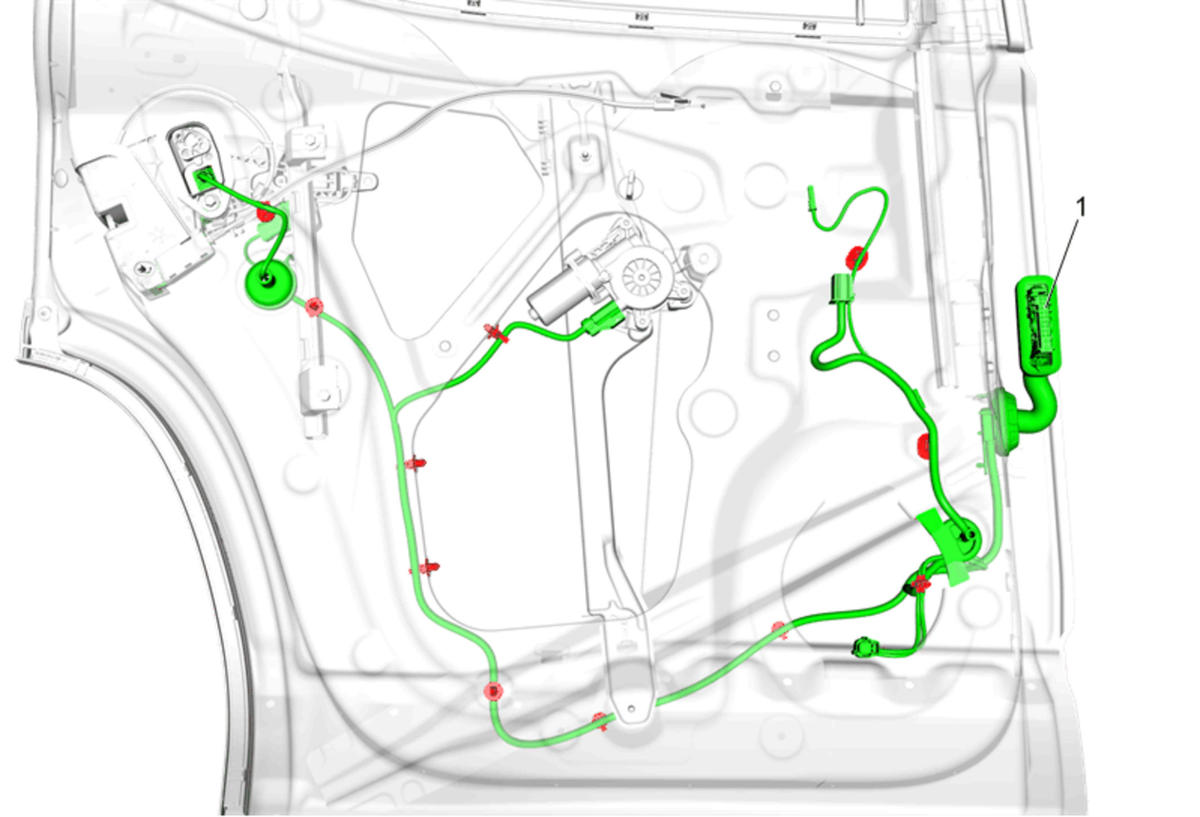

Fig 1: Rear Side Door Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Side Door Water Deflector Replacement Radio Rear Side Door Speaker Replacement
1	Rear Side Door Wiring Harness Procedure Disconnect all electrical connectors. NOTE: Typical wiring harness shown, individual harness may be different due to option content.

Callout

Component Name

Preliminary Procedures

Rear Side Door Water Deflector Replacement
Radio Rear Side Door Speaker Replacement

Rear Side Door Wiring Harness
Procedure
Disconnect all electrical connectors.

NOTE:

Typical wiring harness shown, individual harness may be different due to option content.
