Rear Side Door Water Deflector Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

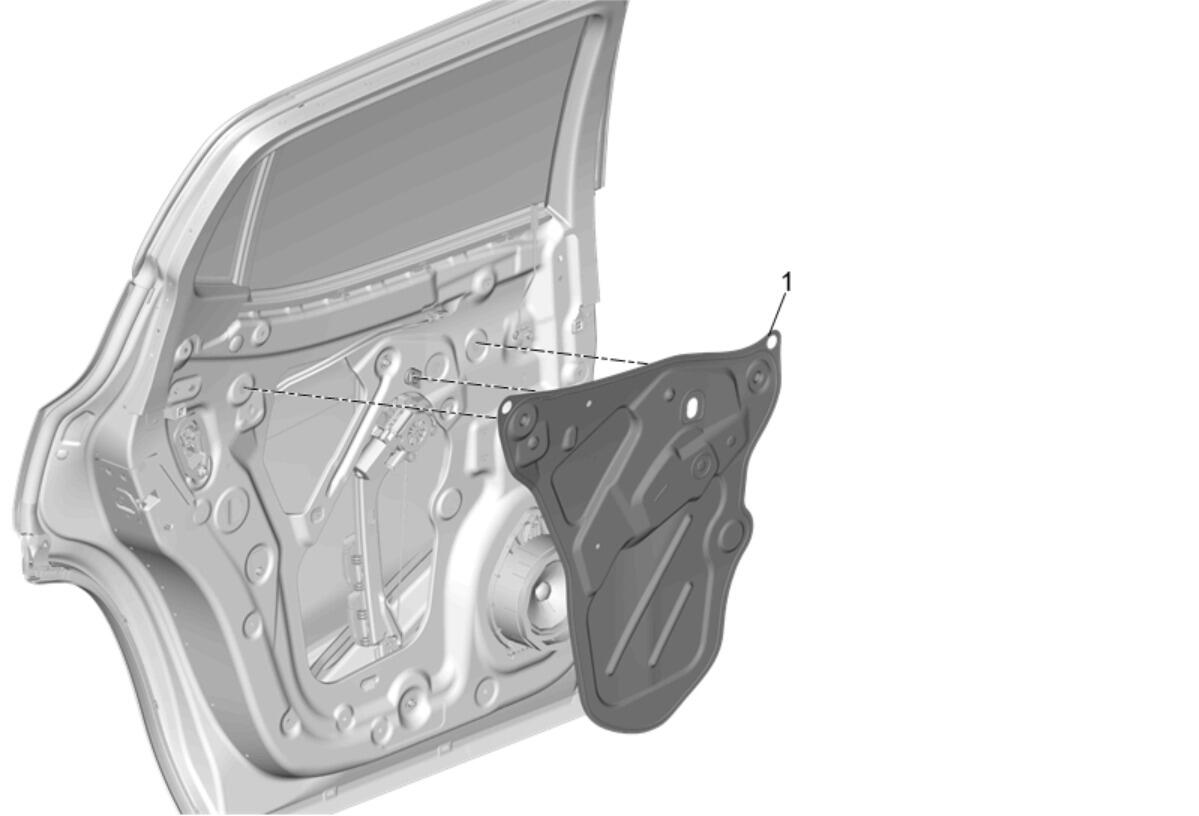

Fig 1: Rear Side Door Water Deflector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Side Door Trim Replacement Rear Side Door Pull Handle Bracket Replacement Rear Side Door Locking Rod Bellcrank Rod Replacement
1	Rear Side Door Water Deflector Procedure Route rear side door inside handle cable through hole in deflector assembly while removing it from the door. NOTE: When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.

Callout

Component Name

Preliminary Procedures

Rear Side Door Trim Replacement
Rear Side Door Pull Handle Bracket Replacement
Rear Side Door Locking Rod Bellcrank Rod Replacement

Rear Side Door Water Deflector
Procedure
Route rear side door inside handle cable through hole in deflector assembly while removing it from the door.

NOTE:

When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.
