Rear Side Door Weatherstrip Replacement - Body Side

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

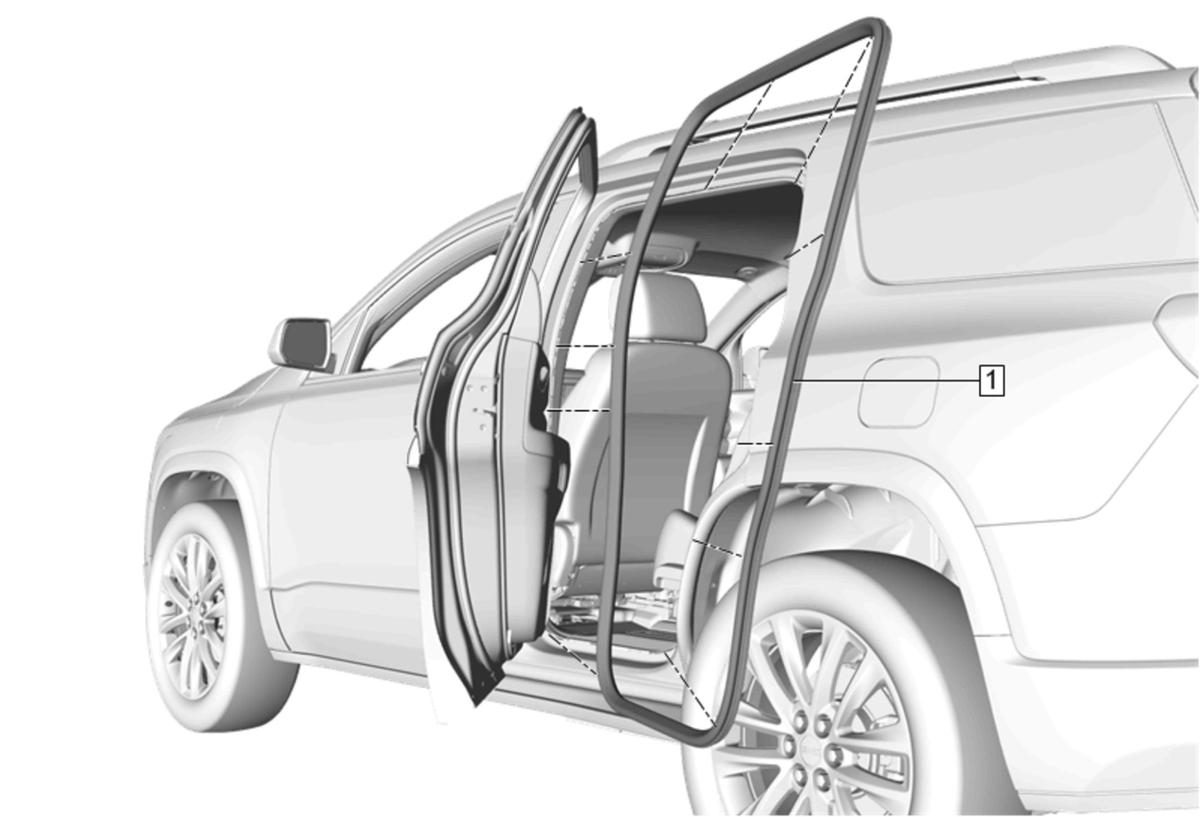

Fig 1: Rear Side Door Weatherstrip - Body Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Center Pillar Lower Trim Panel Replacement Quarter Lower Rear Trim Panel Replacement (Left Side With All Terrain)Quarter Lower Rear Trim Panel Replacement (Right Side With All Terrain)Quarter Lower Rear Trim Panel Replacement (Left Side Without All Terrain)Quarter Lower Rear Trim Panel Replacement (Right Side Without All Terrain)
1	Rear Side Door Weatherstrip - Body Side Procedure Start at the front upper corner of the door opening and pull the weatherstrip away from the door opening flange. Position the weatherstrip in the upper corner of the center pillar. Working downward along the front edge, install the weatherstrip on the door opening flange ensuring that the weatherstrip is fully seated in the corners. Ensure that the weatherstrip is seated on the entire door opening flange.

Callout

Component Name

Preliminary Procedure

Center Pillar Lower Trim Panel Replacement
Quarter Lower Rear Trim Panel Replacement (Left Side With All Terrain)Quarter Lower Rear Trim Panel Replacement (Right Side With All Terrain)Quarter Lower Rear Trim Panel Replacement (Left Side Without All Terrain)Quarter Lower Rear Trim Panel Replacement (Right Side Without All Terrain)

Rear Side Door Weatherstrip - Body Side

Procedure

Start at the front upper corner of the door opening and pull the weatherstrip away from the door opening flange.
Position the weatherstrip in the upper corner of the center pillar.
Working downward along the front edge, install the weatherstrip on the door opening flange ensuring that the weatherstrip is fully seated in the corners.
Ensure that the weatherstrip is seated on the entire door opening flange.
