Outside Rearview Mirror Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

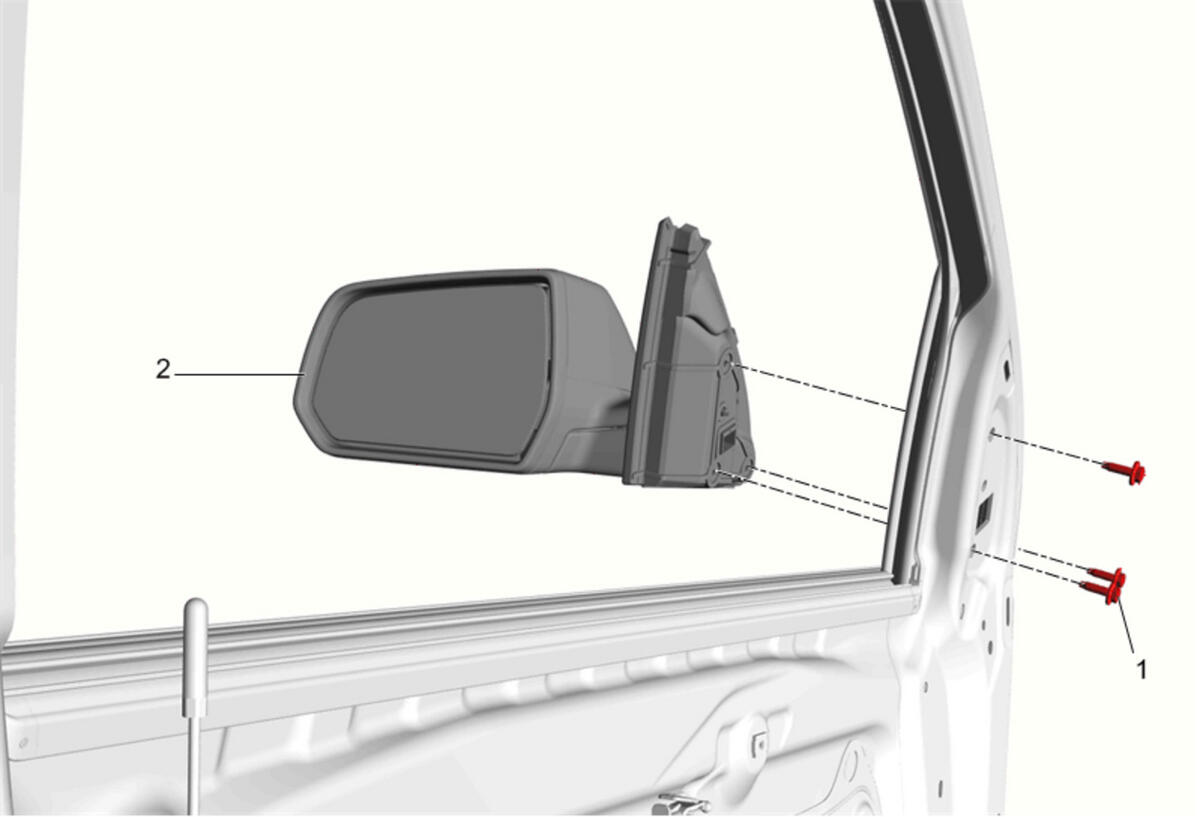

Fig 1: Outside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning Preliminary Procedures Front Side Door Water Deflector Replacement Disconnect the electrical connector.
1	Outside Rearview Mirror Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Outside Rearview Mirror Inspect the mirror for proper operation before installing the door trim.
