Front Side Door Water Deflector Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

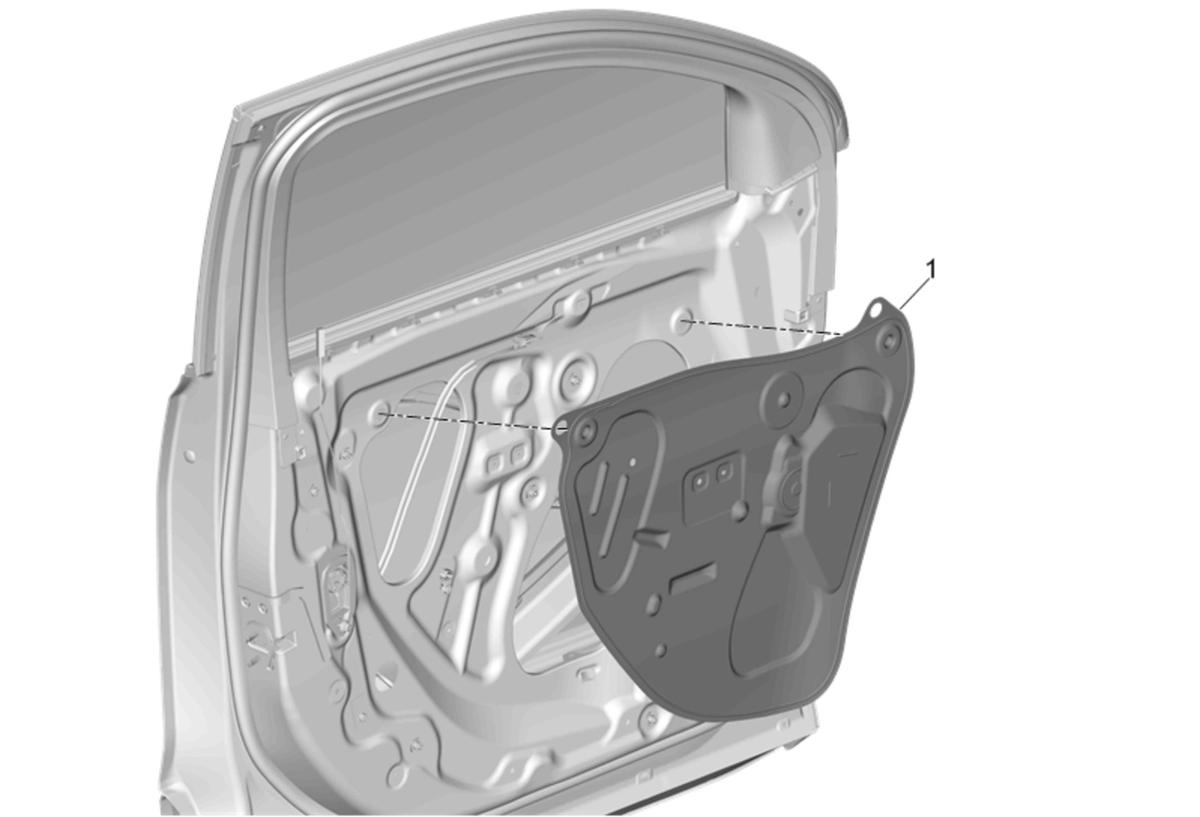

Fig 1: Front Side Door Water Deflector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Side Door Trim Replacement Front Side Door Pull Handle Bracket Replacement
1	Front Side Door Water Deflector Procedure Route front side door inside handle cable through hole in deflector assembly while removing it from the door. NOTE: When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.

Callout

Component Name

Preliminary Procedures

Front Side Door Trim Replacement
Front Side Door Pull Handle Bracket Replacement

Front Side Door Water Deflector
Procedure
Route front side door inside handle cable through hole in deflector assembly while removing it from the door.

NOTE:

When reinstalling water deflector ensure integral locators are installed properly and that water deflector is secured and leakproof.
