Tail Lamp Wiring Harness Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

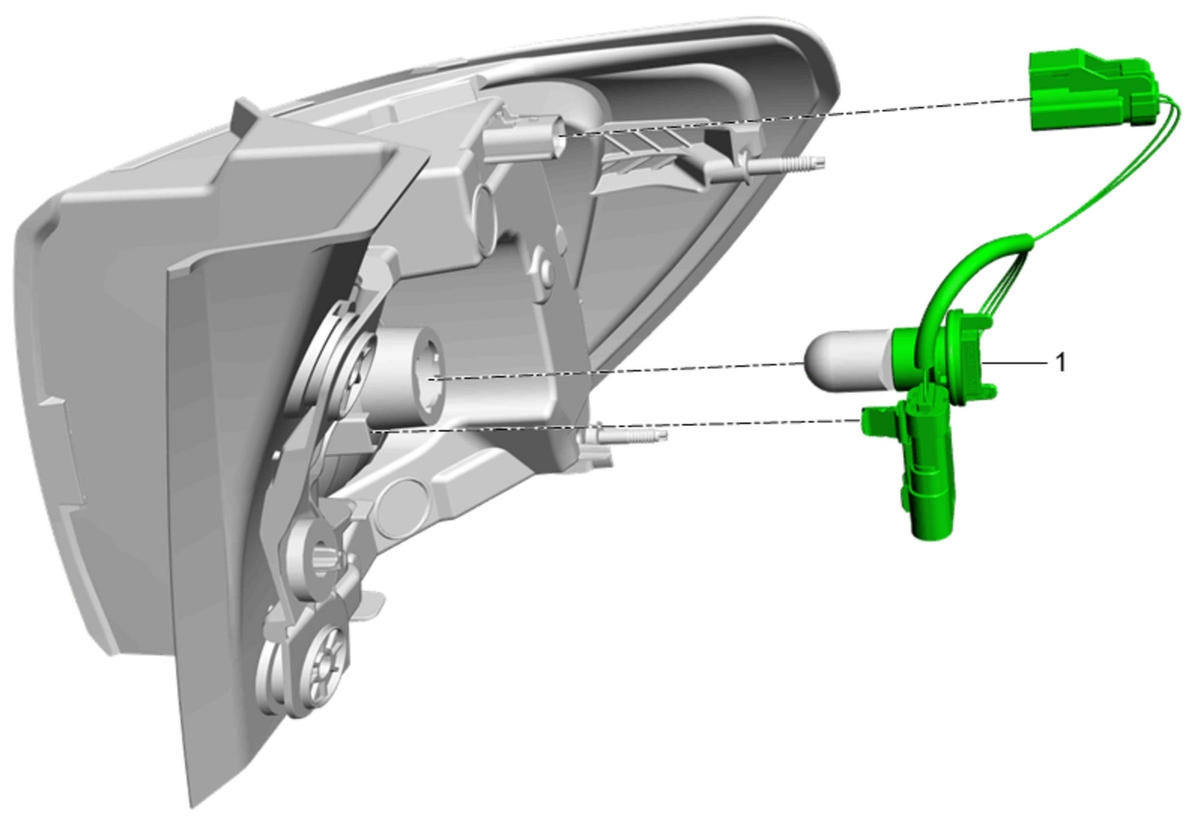

Fig 1: Tail Lamp Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Body Structure Stop Lamp Replacement
1	Tail Lamp Wiring Harness Procedure Rotate the bulb socket counterclockwise to remove it from the lamp housing. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Rear Body Structure Stop Lamp Replacement

Tail Lamp Wiring Harness

Procedure

Rotate the bulb socket counterclockwise to remove it from the lamp housing.
Transfer components as necessary.
