Rear Body Structure Stop Lamp Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

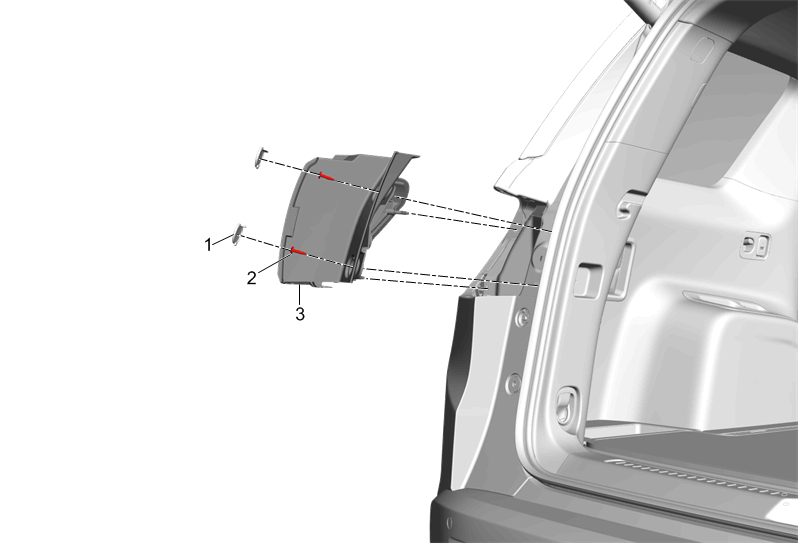

Fig 1: Rear Body Structure Stop Lamp
GM4372379Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Open the liftgate.
1 Rear Body Structure Stop Lamp Cover (Qty: 2)
2 Rear Body Structure Stop Lamp Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
3 Rear Body Structure Stop Lamp

Procedure

  1. Disconnect the electrical connector.
  2. Pull straight back from body side outer frame.
  3. Transfer components as necessary.
