Removal Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Rear Side Door Water Deflector
    GM4355238Courtesy of GENERAL MOTORS COMPANY
  1. Remove Rear Side Door Water Deflector (1). Refer to Rear Side Door Water Deflector Replacement
    2. Fig 2: Rear Side Door Outside Handle
    GM4256150Courtesy of GENERAL MOTORS COMPANY
  2. Remove Rear Side Door Outside Handle (1). Refer to Rear Side Door Outside Handle Replacement

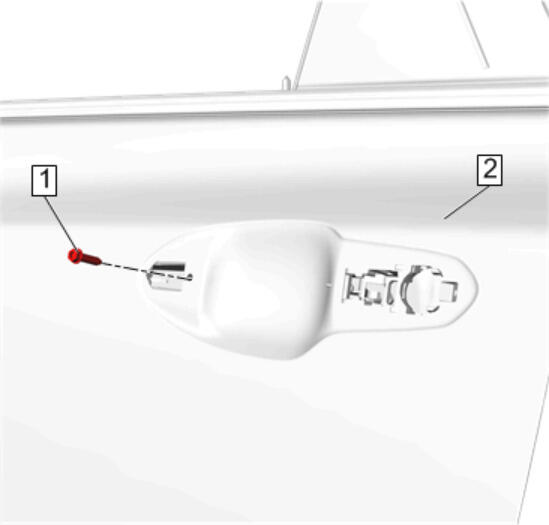

    3. Fig 3: Rear Side Door Outside Bracket Retaining Screw
    GM4297415Courtesy of GENERAL MOTORS COMPANY
  3. Remove the screw (1) that retains the rear side door outside bracket to the door (2).
    4. Fig 4: Rear Side Door Outside Handle Bracket, Retainers, Cable And Counter Balance
    GM4080787Courtesy of GENERAL MOTORS COMPANY
  4. Pull the rear side door outside handle bracket (3) down to the inside door opening.
  5. Remove the cable (2) from the rear side door outside handle bracket retainers (1) and counter balance. (4)
  6. Remove Rear Side Door Outside Handle Bracket (3)
