Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

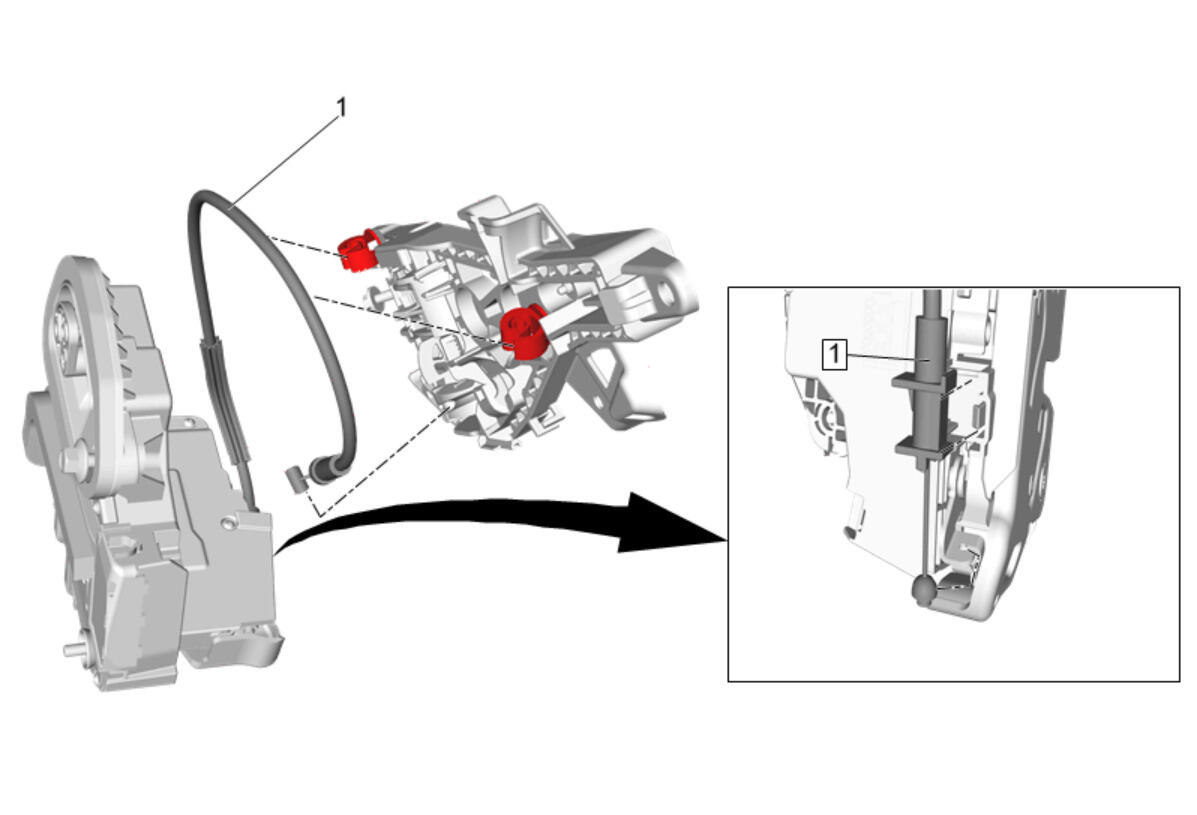

Fig 1: Rear Side Door Inside Handle Cable

Courtesy of GENERAL MOTORS COMPANY

Install Rear Side Door Inside Handle Cable (1). Refer to Rear Side Door Inside Handle Cable Replacement

Fig 2: Rear Side Door Outside Handle Cable

Courtesy of GENERAL MOTORS COMPANY

Install Rear Side Door Outside Handle Cable (1). Refer to Rear Side Door Outside Handle Cable Replacement

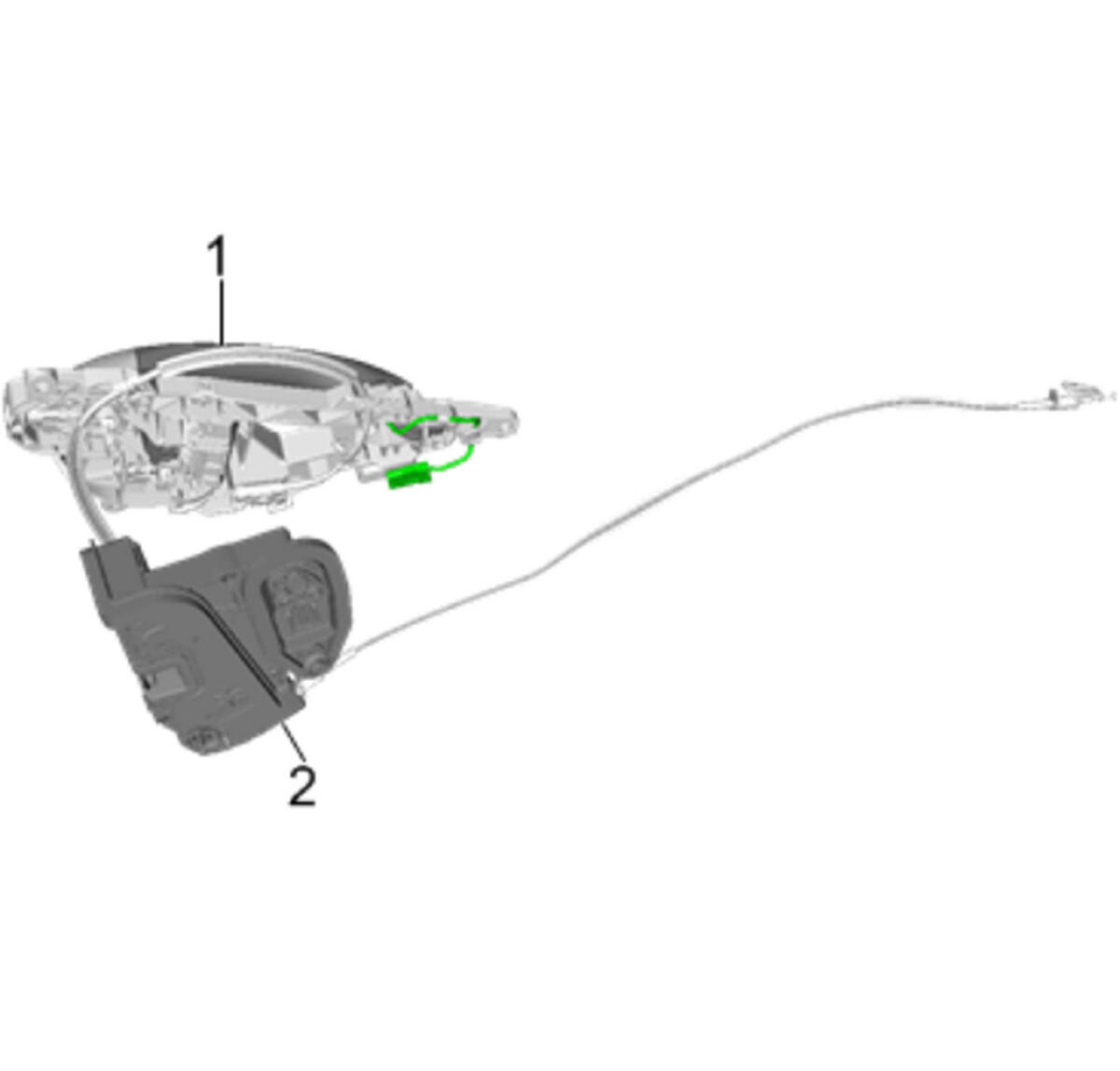

Fig 3: Rear Door Outside Handle And Rear Side Door Latch

Courtesy of GENERAL MOTORS COMPANY

Install Rear Side Door Outside Handle Bracket (1) @ the Rear Side Door Latch (2)

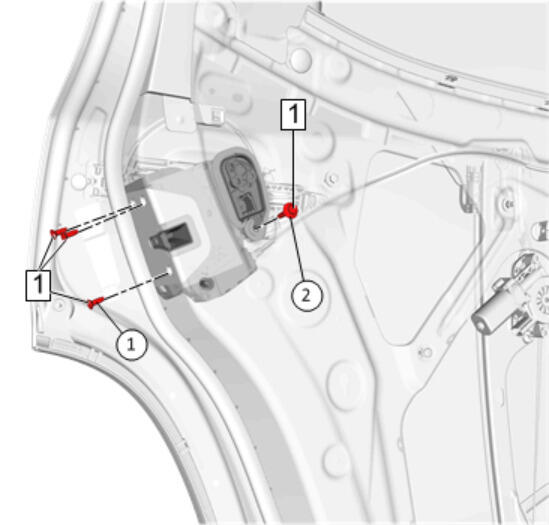

Fig 4: Rear Side Door Latch Bolts (With Tightening Sequence)

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution

NOTE:

Tighten in proper sequence to prevent damage to the latch mechanism.

Install and tighten Rear Side Door Latch Bolts (1) (Qty: 4) to 9 N.m (80 lb in)

Fig 5: Rear Side Door Outside Handle Bracket, Retainers, Cable And Counter Balance

Courtesy of GENERAL MOTORS COMPANY

Install Rear Side Door Outside Handle Bracket (3). Refer to Rear Side Door Outside Handle Bracket Replacement

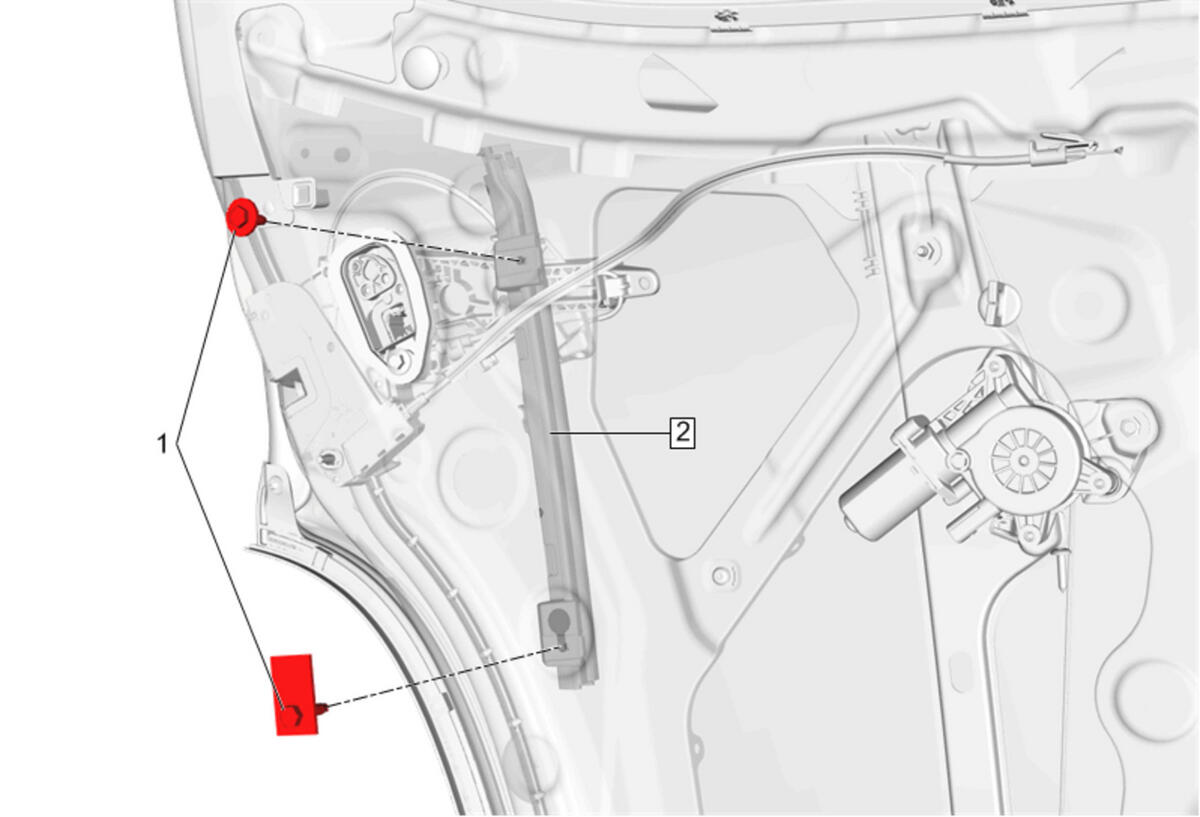

Fig 6: Rear Side Door Window Channel Rear Retainer

Courtesy of GENERAL MOTORS COMPANY

Install Rear Side Door Window Channel Rear Retainer (2). Refer to Rear Side Door Window Channel Rear Retainer Replacement
Connect the electrical connector.
Inspect the door latch, window and outside handle for proper operation before installing the door trim.
