Liftgate Release Switch Replacement - Exterior

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

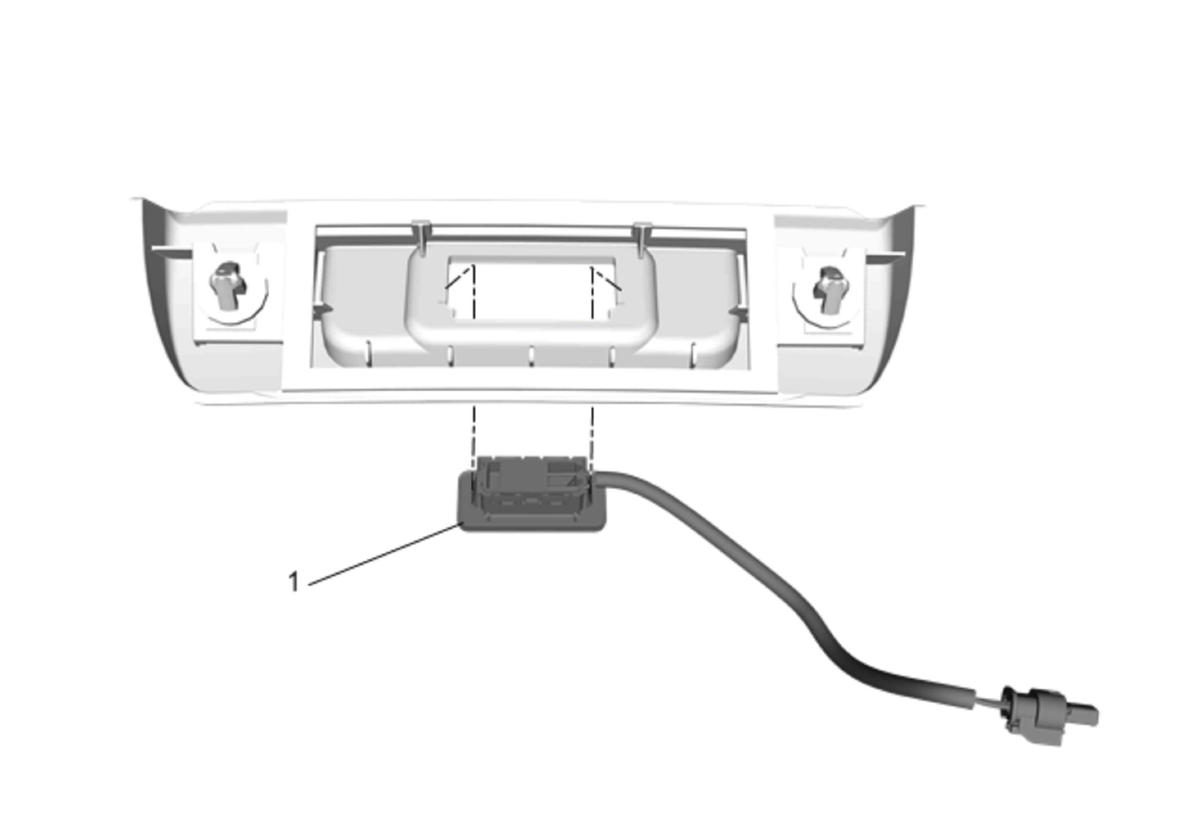

Fig 1: Liftgate Release Switch - Exterior

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Rear Closure Fixed Handle Applique. Refer to Rear Closure Fixed Handle Applique Replacement
1	Liftgate Release Switch Procedure Disconnect the electrical connector. Release the liftgate release switch retainers and push out from the rear closure fixed handle applique.

Callout

Component Name

Preliminary Procedure
Remove Rear Closure Fixed Handle Applique. Refer to Rear Closure Fixed Handle Applique Replacement

Liftgate Release Switch

Procedure

Disconnect the electrical connector.
Release the liftgate release switch retainers and push out from the rear closure fixed handle applique.
