Rear Closure Fixed Handle Applique Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

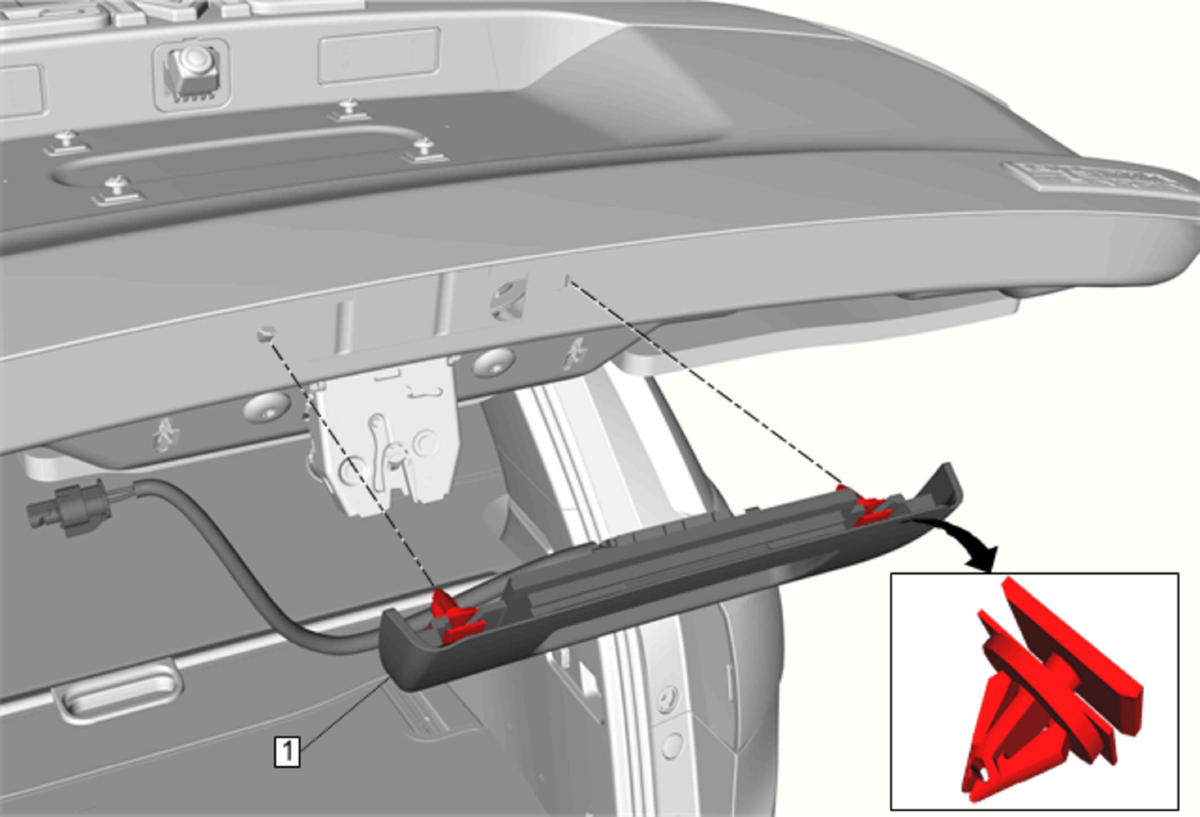

Fig 1: Rear Closure Fixed Handle Applique
GM4379367Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Liftgate Lower Trim Finish Panel. Refer to Liftgate Lower Trim Finish Panel Replacement .
1 Rear Closure Fixed Handle Applique

Procedure

  1. Release the retainers.
  2. Disconnect the electrical connector:
