Rear Side Door Window Frame Front Applique Replacement

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

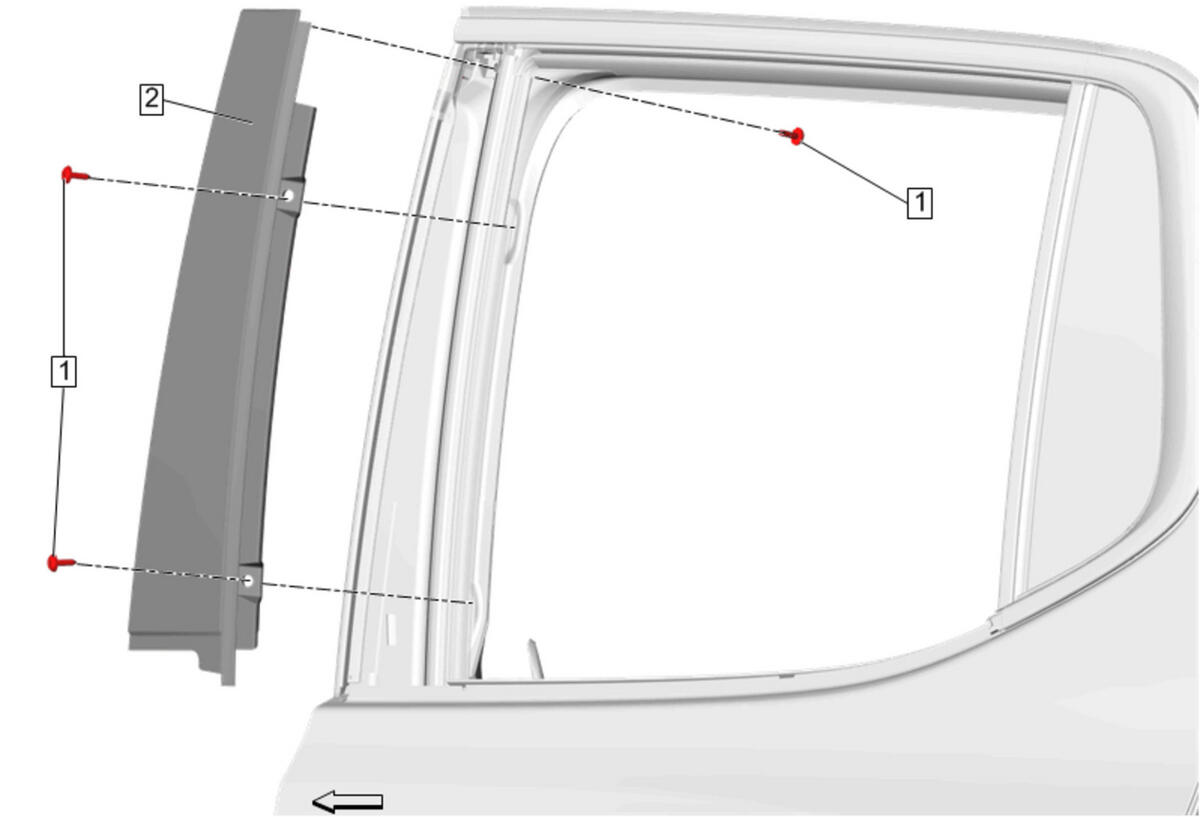

Fig 1: Rear Side Door Window Frame Front Applique
GM4404449Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Rear Side Door Window Garnish Molding Replacement
  2. Rear Side Door Window Belt Reveal Molding Replacement
1 Rear Side Door Window Frame Applique Screw (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Procedure
Pull weatherstrip away from the applique to access the screws.
Tighten
2.5 N.m (22 lb in)
2 Rear Side Door Window Frame Front Applique
